Extron RGB 406 Mountable Interface w/ Audio BNC DB9 12V Wall Plate AV

Extron RGB 406 Mountable Interface w/ Audio BNC DB9 12V Wall Plate AV

The Extron RGB 406 is a wall-plate-mountable RGB interface designed to integrate computer video and audio signals into presentation and AV distribution systems. It accepts an RGB computer signal via a DB9 input, outputs via a five-wire BNC breakout cable, and converts unbalanced computer audio to a balanced audio signal — making it well suited for routing computer AV through professional audio systems. The unit mounts into a standard single-gang electrical box cutout and presents a clean faceplate in the finished installation.

Specifications & What's Included

• Model: Extron RGB 406
• Form factor: Wall-plate mountable (single-gang electrical box)
• Input connector: DB9 (computer RGB signal input)
• Output: 5-BNC breakout cable (RGB + sync)
• Audio input: 3.5mm stereo (unbalanced computer audio)
• Audio conversion: Unbalanced to balanced audio
• Audio level control with Peaking adjustment
• Input termination: Switchable — 75 Ohm or High-Z (front-panel switch)
• Sync output: Yes
• Auto Power sensing (front-panel LED indicator)
• H. Shift (horizontal shift) adjustment
• Power: 12–24V AC or DC

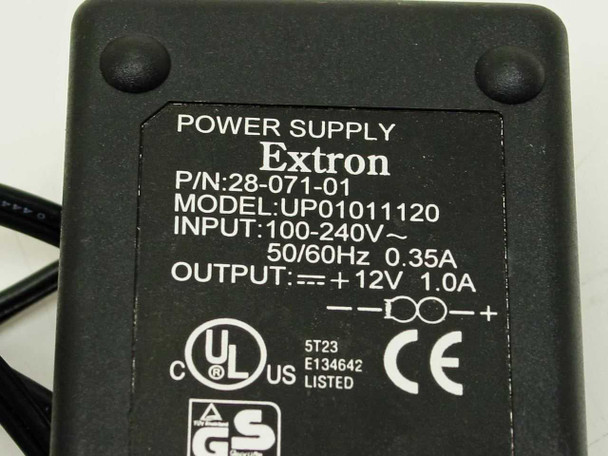

• Included Extron power supply: P/N 28-071-01, model UP01011120
• Power supply input: 100–240V AC, 50/60Hz, 0.35A (universal input)
• Power supply output: +12V DC, 1.0A

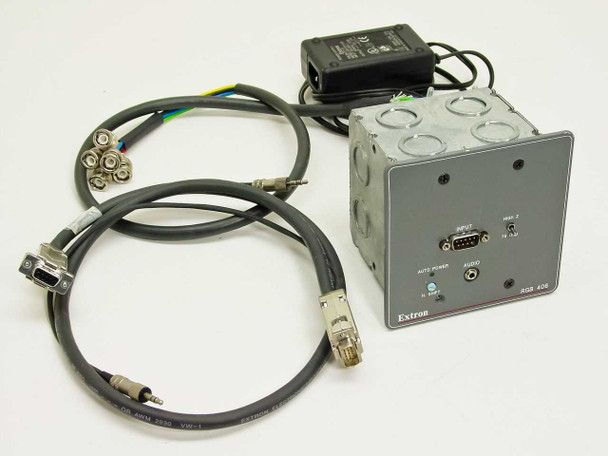

• Included accessories: Extron DB9 RGB cable, 5-BNC breakout cable, 3.5mm audio cable

Applications

The Extron RGB 406 is a product from Extron's line of signal interfacing and distribution equipment, aimed at professional AV and presentation environments. Wall-plate RGB interfaces like this one are used in conference rooms, classrooms, auditoriums, and training facilities where a presenter needs to connect a laptop or desktop computer to a room's projector or display system through a structured cabling infrastructure. The DB9-to-BNC breakout design bridges the computer's video output to a coax-based distribution system, while the built-in unbalanced-to-balanced audio conversion allows the computer's headphone-level audio output to feed directly into a professional audio system or sound reinforcement setup without a separate DI box. The switchable 75-ohm/High-Z input termination makes the unit compatible with both driven and passive signal sources. Extron introduced the RGB 400 series wall-plate interfaces in the late 1990s and early 2000s to serve the rapid growth of laptop-based presentations in corporate and educational AV systems during that era.
