Cidtec ICM7000FX1 Video Camera Interface Frame Grabber BNC DB9 0304-9339
The Cidtec ICM7000FX1 is a compact benchtop video camera interface and frame grabber designed to connect industrial or machine vision cameras to a host computer system. It routes video output, camera control signals, and synchronization signals between a camera head and a host, with a dedicated FRAME GRAB function switchable via a front-panel toggle. The unit is part of Cidtec's line of imaging interface electronics aimed at industrial inspection, scientific imaging, and machine vision applications.
Specifications & What's Included
- Model: ICM7000FX1
- Part Number: 0304-9339
- Brand: Cidtec

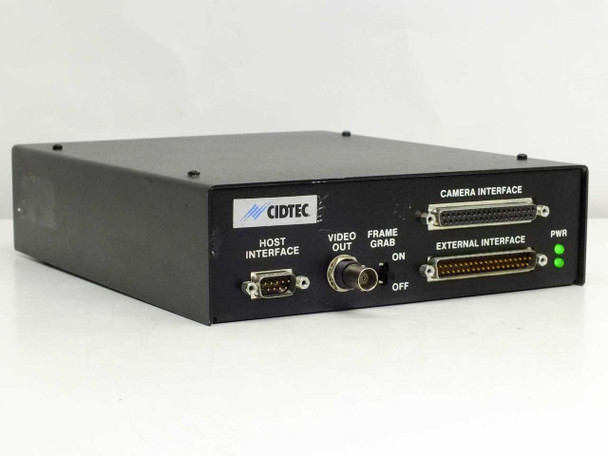

- Host Interface: DB9 connector (front panel)
- Video Output: BNC connector (front panel)

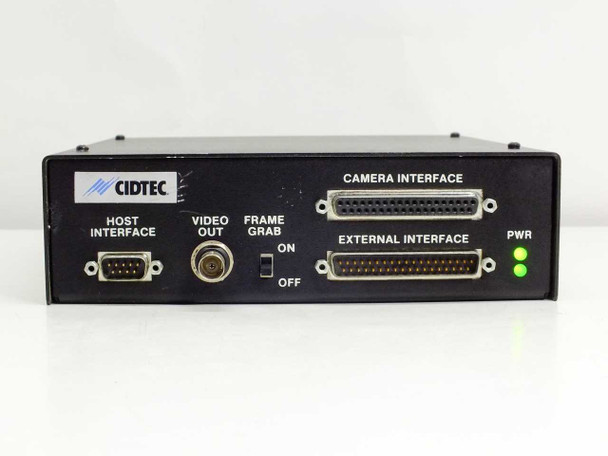

- Frame Grab: ON/OFF toggle switch (front panel)
- Camera Interface: Large parallel D-sub connector (front panel, labeled CAMERA INTERFACE)
- External Interface: Large parallel D-sub connector (front panel, labeled EXTERNAL INTERFACE)
- Power Indicator: Dual green LEDs (front panel)

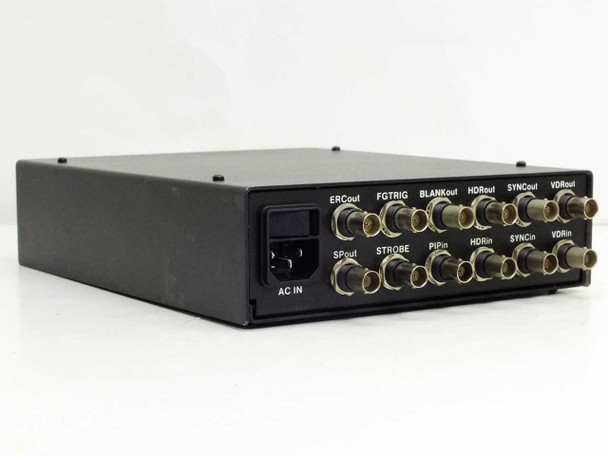

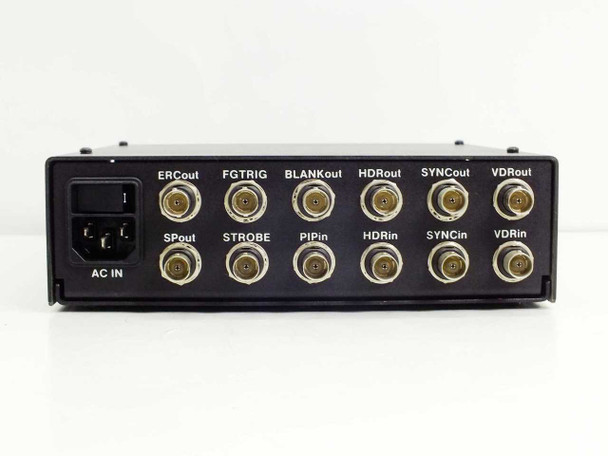

- Rear BNC Signal Ports (12 total): ERCout, FGTRIG, BLANKout, HDRout, SYNCout, VDRout, SPout, STROBE, PIPin, HDRin, SYNCin, VDRin
- AC Input: IEC C14 inlet with rocker switch (rear panel)
- Form Factor: Benchtop / Desktop enclosure
- Unit only — no accessories included
