Description
Cooper Bussmann TCFH100N 600V 100A Class CF CUBEForce Fuse Holder DIN Rail
Class CF fuse holder rated for 600V and 100A. Mounts directly to DIN rail in industrial control enclosures and switchgear. Finger-safe design with manual operation.
Specifications & What's Included
- Voltage: 600V AC/DC
- Current Rating: 100A (1–100A ampere range)
- Fuse Class: CF
- Mounting: DIN Rail
- Interrupting Rating: 300 kVA
- Short Circuit Rating: 430P RMS SYM
- Wire Range: 18–10 AWG (25 lb-in), 8–1 AWG (40 lb-in), 6 AWG dual (45 lb-in)
- UL Listed and CE certified
- Copper wire only
- Fuse holder only; no fuse included
Applications
Class CF fuse holders are used in industrial control cabinets, PLC systems, and motor control centers to protect circuits rated up to 100A. Commonly found in machinery control, HVAC systems, and process automation equipment. This unit was pulled from a decommissioned PLC control cabinet.
Condition: Used

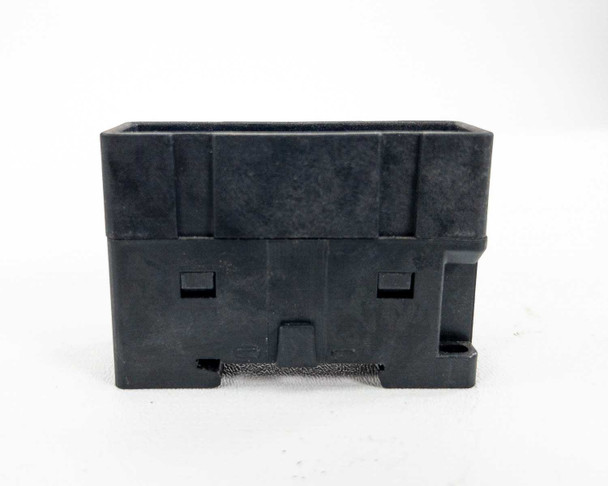

This Cooper Bussmann TCFH100N CUBEForce Class CF fuse holder has been inspected and is in good used condition. It was removed from a large PLC control cabinet that was decommissioned. The black thermoplastic housing is intact with no cracks or breakage; the DIN rail clip and terminal screws are present and functional. The yellow rating label is fully legible. Normal light surface marks consistent with panel service are visible on the exterior. No fuse is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Cooper Bussmann TCFH100N CUBEForce Class CF fuse holder has been inspected and is in good used condition. It was removed from a large PLC control cabinet that was decommissioned. The black thermoplastic housing is intact with no cracks or breakage; the DIN rail clip and terminal screws are present and functional. The yellow rating label is fully legible. Normal light surface marks consistent with panel service are visible on the exterior. No fuse is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Cooper Bussmann |
Model: |
TCFH100N |
MPN: |
TCFH100N |
Type: |
Class CF Fuse Holder |
SKU: |
52946 |
Voltage Rating: |
600V |
Current Rating: |
100A |
Fuse Class: |
Class CF |
Cat No.: |
TCF |
Ampere Range: |
1-100A |
Mounting Type: |
DIN Rail |
Finger Safe: |
Yes |
Interrupting Rating: |
300 kVA |
Short Circuit Rating: |
430P RMS SYM |
Wire Range (Single Sol/Str): |
18-10 AWG — 25 lb-in (2.82 N·m) |
Wire Range (Single, 8-1 AWG): |
8-1 AWG — 40 lb-in (4.52 N·m) |
Wire Range (6 AWG Dual Str): |
6 AWG Dual Str — 45 lb-in (5.08 N·m) |
Certifications: |
UL Listed, CE |
Conductor Material: |
Copper Wire Only |
Form Factor: |
DIN Rail Module |
Seller Notes: |
Fuse holder only; no fuse included. Pulled from decommissioned PLC control cabinet. |
Country/Region of Manufacture: |
Mexico |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Cooper Bussmann TCFH100N 600V 100A CUBEForce fuse holder. Inspected and in good used condition. Pulled from a decommissioned PLC control cabinet. Housing intact, label legible, DIN clip present. No fuse included. |
