Description

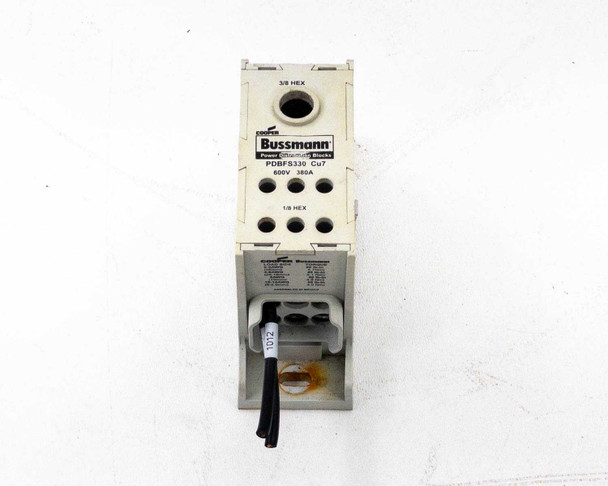

Cooper Bussmann PDBFS330 Cu7 Power Distribution Block 600V 380A 3/8 1/8 Hex
Power distribution block for industrial and telecom applications. Distributes high-current power from a single source to multiple load circuits using copper terminals and DIN rail mounting.
Specifications & What's Included
- Voltage Rating: 600V
- Current Rating: 380A
- Conductor Material: Copper (Cu7)
- Line Side Wire Range: 500–6 AWG (240–16mm²)
- Load Side Wire Range: 2–14 AWG (35–2.5mm²)
- Line Side Torque: 500 lb-in (56.5 Nm) with 3/8″ hex tool

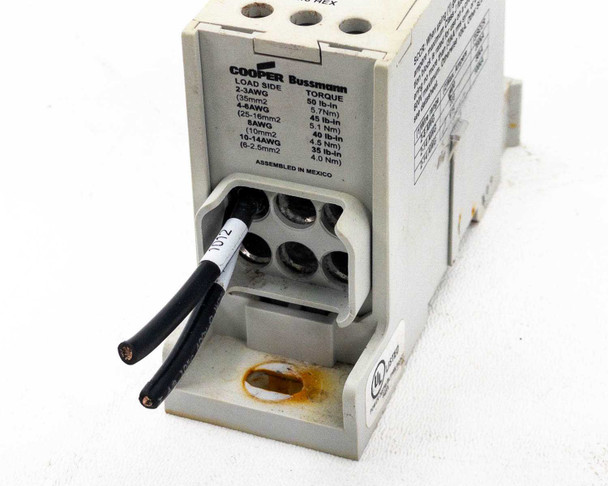

- Load Side Torque: 35–50 lb-in (4.0–5.7 Nm) with 1/8″ hex tool
- SCCR: 200kA at 400A max (2–6 AWG); 50kA at 200A max (2–14 AWG)
- Standards: IEC 947-7-1, UL Listed, CE, CSA
- Mounting: DIN Rail
- Includes two short lead wires attached to load side terminals
Applications
Commonly used in industrial control panels, electrical distribution systems, and telecom equipment racks to consolidate incoming power and distribute it to multiple outbound circuits. Found in factory automation, motor control centers, power management systems, and data center installations where high-current distribution with multiple tap points is required.
Condition: Used
This Cooper Bussmann PDBFS330 Cu7 Power Distribution Block has been inspected and is in good used condition. It was pulled from a working environment. The block itself is clean and intact, with the terminal openings and hex-socket ports clear and free of damage. There are some light rust spots visible on the DIN rail mounting base and on the underside of the unit, as seen in the photos. Two short lead wires are attached to the load side terminals. Overall cosmetic wear is minor and consistent with normal service use. Please view our photo set and contact us if you have any questions.
This Cooper Bussmann PDBFS330 Cu7 Power Distribution Block has been inspected and is in good used condition. It was pulled from a working environment. The block itself is clean and intact, with the terminal openings and hex-socket ports clear and free of damage. There are some light rust spots visible on the DIN rail mounting base and on the underside of the unit, as seen in the photos. Two short lead wires are attached to the load side terminals. Overall cosmetic wear is minor and consistent with normal service use. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Cooper Bussmann |
Model: |
PDBFS330 |
MPN: |
PDBFS330 Cu7 |
Type: |
Power Distribution Block |
SKU: |
53152 |
Voltage Rating: |
600V |
Current Rating: |
380A |
Conductor Material: |
Copper (Cu7) |
Line Side Wire Range: |
500-6 AWG (240-16mm2) |
Load Side Wire Range: |
2-14 AWG (35-2.5mm2) |
Line Side Torque: |
500 lb-in (56.5 Nm) |
Load Side Torque Spec: |
35-50 lb-in (4.0-5.7 Nm) |
Line Side Tool: |
3/8 HEX |
Load Side Tool: |
1/8 HEX |
Mounting Type: |
DIN Rail |
Standards: |
IEC 947-7-1, UL Listed |
Certifications: |
UL Listed, CE, CSA |
Country/Region of Manufacture: |
Mexico |
SCCR (2-6 AWG / Class J fuse): |
200kA at 400A max |
SCCR (2-14 AWG / Class J fuse): |
50kA at 200A max; 100kA at 175A |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit includes two short lead wires attached to load side terminals. |
Condition Notes: |
Used Cooper Bussmann PDBFS330 Cu7 Power Distribution Block, pulled from a working environment. Inspected and in good condition. Light rust on DIN rail base; terminals clear. Two short lead wires attached. See photos. |
