Cooper Bussmann
-
Cooper Bussmann PDBFS330 Cu7 Power Distribution Block 600V 380A 3/8 1/8 Hex
Cooper Bussmann
$40.00Was: $80.00Cooper Bussmann PDBFS330 Cu7 Power Distribution Block 600V 380A 3/8 1/8 HexPower distribution block for industrial and telecom applications. Distributes high-current power from a single source to...53152- SKU:
- 53152
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Cooper Bussmann
- Model:
- PDBFS330
- MPN:
- PDBFS330 Cu7
- Type:
- Power Distribution Block
- SKU:
- 53152
- Voltage Rating:
- 600V
- Current Rating:
- 380A
- Conductor Material:
- Copper (Cu7)
- Line Side Wire Range:
- 500-6 AWG (240-16mm2)
- Load Side Wire Range:
- 2-14 AWG (35-2.5mm2)
- Line Side Torque:
- 500 lb-in (56.5 Nm)
- Load Side Torque Spec:
- 35-50 lb-in (4.0-5.7 Nm)
- Line Side Tool:
- 3/8 HEX
- Load Side Tool:
- 1/8 HEX
- Mounting Type:
- DIN Rail
- Standards:
- IEC 947-7-1, UL Listed
- Certifications:
- UL Listed, CE, CSA
- Country/Region of Manufacture:
- Mexico
- SCCR (2-6 AWG / Class J fuse):
- 200kA at 400A max
- SCCR (2-14 AWG / Class J fuse):
- 50kA at 200A max; 100kA at 175A
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit includes two short lead wires attached to load side terminals.
- Condition Notes:
- Used Cooper Bussmann PDBFS330 Cu7 Power Distribution Block, pulled from a working environment. Inspected and in good condition. Light rust on DIN rail base; terminals clear. Two short lead wires attached. See photos.
$40.00Was: $80.00 -

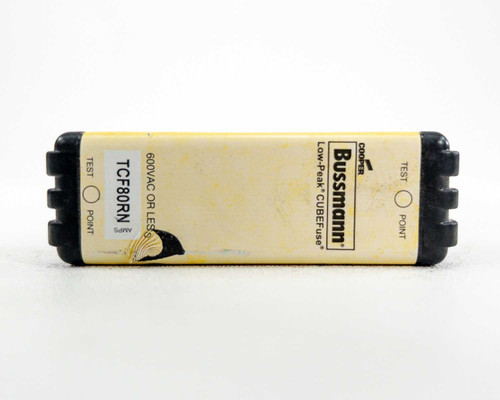

Cooper Bussmann TCF80RN CUBEFuse 80A 600VAC 300VDC Class CF Dual Element Fuse
Cooper Bussmann
$38.00Was: $80.00Cooper Bussmann TCF80RN CUBEFuse 80A Fuse 600VAC IR 300kA AC 300Vdc IR 100kA DC Features: Low-Peak CUBEFuse 80 Amp 600Vac, IR 300kA AC 300Vdc, IR 100kA DC CF Class Fuse Issue No. ND89-80 HRCI-MISC...52948- SKU:
- 52948
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Cooper Bussmann
- Model:
- TCF80RN
- MPN:
- TCF80RN
- Type:
- Class CF Dual-Element Time-Delay Current-Limiting Fuse
- SKU:
- 52948
- Seller Notes:
- Fuse only, as pictured. Inspected used surplus.
- Country/Region of Manufacture:
- China
- Amperage Rating:
- 80A
- Voltage Rating (AC):
- 600VAC
- Voltage Rating (DC):
- 300VDC
- Interrupting Rating (AC):
- IR 300kA AC
- Interrupting Rating (DC):
- IR 100kA DC
- Fuse Class:
- Class CF
- Fuse Type:
- Dual-Element Time-Delay
- Current Limiting:
- Yes
- Issue Number:
- ND89-80
- CSA Standard:
- HRCI-MISC C22.2 No. 106, IR 200kA AC, Type D
- Certifications:
- UL Listed, CSA, CE
- Series:
- Low-Peak CUBEFuse
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Cooper Bussmann TCF80RN CUBEFuse 80A inspected and in good used condition. Pulled from a working environment. Label legible, no visible damage. Please contact us with any questions.
$38.00Was: $80.00 -
Bussmann TCF20RN Low-Peak CUBEFuse 20A 600VAC CF Class Dual Element Time Delay
Cooper Bussmann
$22.00Was: $40.00Bussmann TCF20RN Low-Peak CUBEFuse 20A 600VAC CF Class Dual Element Time DelayCF Class current-limiting fuse with dual-element time delay design. Rated 20A at 600VAC (300VDC), with 300kA AC and 100kA...52947- SKU:
- 52947
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Bussmann
- Model:
- TCF20RN
- MPN:
- TCF20RN
- Type:
- CF Class Current-Limiting Time Delay Fuse
- SKU:
- 52947
- Amperage Rating:
- 20A
- Voltage Rating (AC):
- 600VAC
- Voltage Rating (DC):
- 300VDC
- Interrupting Rating (AC):
- 300kA AC
- Interrupting Rating (DC):
- 100kA DC
- Fuse Class:
- CF
- Fuse Series:
- Low-Peak CUBEFuse
- Fuse Type:
- Dual-Element Time Delay
- Current Limiting:
- Yes
- UL Listing:
- UL Listed — Class CF Fuse, Issue No. 0015310
- CSA Certification:
- CSA HRCI-MISC, C22.2 No. 106, Type D, IR 200kA AC
- CE Marked:
- Yes
- Country/Region of Manufacture:
- China
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Pulled from a decommissioned PLC control cabinet; inspected and in good condition.
- Condition Notes:
- Cooper Bussmann TCF20RN CUBEFuse inspected and in good condition. Pulled from a decommissioned PLC control cabinet. Label intact, terminals show light normal oxidation, no signs of damage.
$22.00Was: $40.00 -

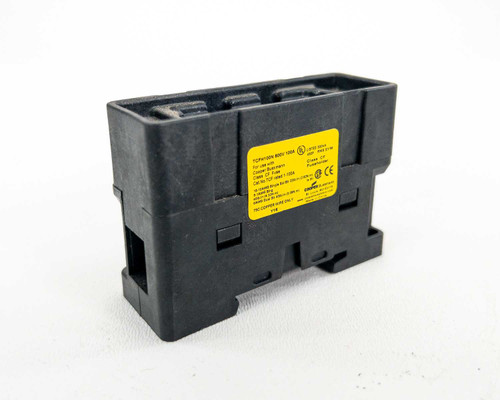

Cooper Bussmann TCFH100N 600V 100A Class CF CUBEForce Fuse Holder DIN Rail
Cooper Bussmann
$30.00Was: $60.00Cooper Bussmann TCFH100N 600V 100A Class CF CUBEForce Fuse Holder DIN RailClass CF fuse holder rated for 600V and 100A. Mounts directly to DIN rail in industrial control enclosures and switchgear...52946- SKU:
- 52946
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Cooper Bussmann
- Model:
- TCFH100N
- MPN:
- TCFH100N
- Type:
- Class CF Fuse Holder
- SKU:
- 52946
- Voltage Rating:
- 600V
- Current Rating:
- 100A
- Fuse Class:
- Class CF
- Cat No.:
- TCF
- Ampere Range:
- 1-100A
- Mounting Type:
- DIN Rail
- Finger Safe:
- Yes
- Interrupting Rating:
- 300 kVA
- Short Circuit Rating:
- 430P RMS SYM
- Wire Range (Single Sol/Str):
- 18-10 AWG — 25 lb-in (2.82 N·m)
- Wire Range (Single, 8-1 AWG):
- 8-1 AWG — 40 lb-in (4.52 N·m)
- Wire Range (6 AWG Dual Str):
- 6 AWG Dual Str — 45 lb-in (5.08 N·m)
- Certifications:
- UL Listed, CE
- Conductor Material:
- Copper Wire Only
- Form Factor:
- DIN Rail Module
- Seller Notes:
- Fuse holder only; no fuse included. Pulled from decommissioned PLC control cabinet.
- Country/Region of Manufacture:
- Mexico
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Cooper Bussmann TCFH100N 600V 100A CUBEForce fuse holder. Inspected and in good used condition. Pulled from a decommissioned PLC control cabinet. Housing intact, label legible, DIN clip present. No fuse included.
$30.00Was: $60.00
