Littelfuse

Littelfuse LPSC CH Powr-Safe Class CC Fuse Holder 600V 30A AC-DC DIN Rail

(No reviews yet) Write a Review
SKU:
51571
MPN:
LPSC CH
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

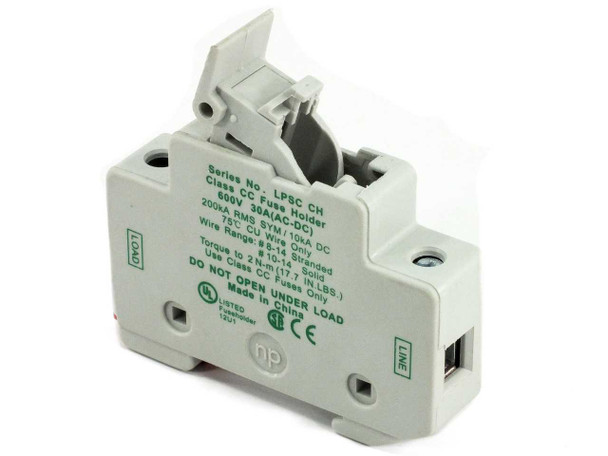

  • Littelfuse LPSC CH Powr-Safe Class CC fuse holder front view showing label with 600V 30A rating and UL/CE markings
  • Littelfuse LPSC CH Powr-Safe fuse holder left-side view with fuse carrier in raised open position and red indicator visible
  • Littelfuse LPSC CH fuse holder rear label showing full specifications: 600V 30A AC-DC, 200kA RMS, wire range, and Made in China markings
  • Close-up interior view of Littelfuse LPSC CH fuse holder showing fuse cavity and contact terminals with carrier open
  • Littelfuse LPSC CH Powr-Safe fuse holder angled top view showing 600V 30A label on fuse carrier and DIN rail mounting slots
$14.00
Was: $30.00
Current Stock: 46

Sold Out

Description

Littelfuse LPSC CH Powr-Safe Class CC Fuse Holder 600V 30A AC-DC DIN Rail

Single-pole Class CC fuse holder rated for 600V AC-DC and 30A. Mounts directly to DIN rail for industrial control panels and telecom equipment requiring overcurrent protection with Class CC fuses.

Specifications & What's Included

  • Voltage Rating: 600V AC-DC
  • Current Rating: 30A
  • Interrupting Rating: 200kA RMS SYM / 10kA DC
  • Wire Range: #8-14 AWG Stranded, #10-14 AWG Solid (75°C Copper)
  • Torque Specification: 2 N·m (17.7 IN·LBS)
  • Mounting: DIN Rail
  • Certifications: UL Listed, CE, SR
  • Compatible with Class CC Fuses Only

Applications

Class CC fuse holders serve as branch circuit protection in industrial control systems, power distribution panels, and telecommunications equipment. This holder type is commonly found in machinery control circuits, process automation panels, and data center power management systems where fast-acting fuse protection is required. The 30A rating handles moderate loads while maintaining coordination with Class CC fuses for selective clearing.

Condition: Open Box
This Littelfuse LPSC CH Powr-Safe Class CC fuse holder is new and unused. It is being sold as open-box stock, meaning it may not be in its original retail packaging, but the unit itself has not been installed or used. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Littelfuse
Model:
LPSC CH
MPN:
LPSC CH
Type:
Class CC Fuse Holder
SKU:
51571
Series:
Powr-Safe
Voltage Rating:
600V AC-DC
Current Rating:
30A
Fuse Class:
Class CC
Interrupting Rating:
200kA RMS SYM / 10kA DC
Wire Range (Stranded):
#8-14 AWG Stranded
Wire Range (Solid):
#10-14 AWG Solid
Wire Type:
75°C CU Wire Only
Torque Specification:
2 N·m (17.7 IN·LBS)
Mounting Type:
DIN Rail
Number of Poles:
1
Certifications:
UL Listed, CE, SR
Country/Region of Manufacture:
China
Condition:
New – Open Box
Seller Notes:
New and unused; may be out of original packaging.
Compatible Fuse Type:
Class CC Fuses Only
Condition Notes:
Littelfuse LPSC CH Powr-Safe Class CC fuse holder. New and unused; may be out of original packaging. Unit has not been installed or used. Please view photos and contact us with questions.
