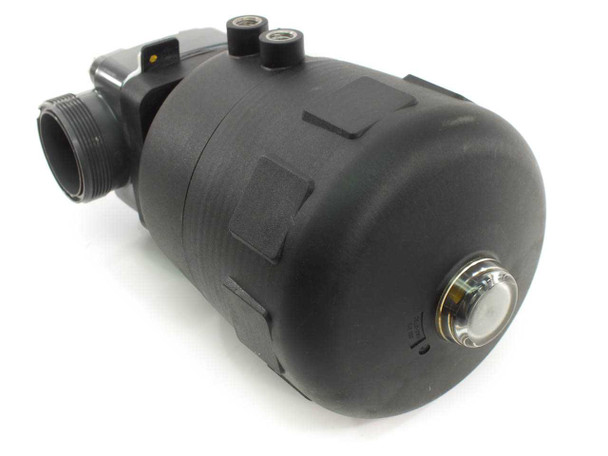

Burkert 2030 2/2-Way Pneumatic Diaphragm Valve Plastic Body True Union 2030-A-2-40
The Burkert 2030 is a 2/2-way pneumatic diaphragm valve designed for use with aggressive and corrosive media. The plastic body provides chemical resistance, and the pneumatic actuator opens and closes the diaphragm via compressed air signal. This unit is configured normally closed (N.C.) and features a removable radial true union connection for easy inline installation and maintenance without pipe disconnection.
Specifications & What's Included
- Manufacturer: Burkert (Made in Germany)
- Model: 2030

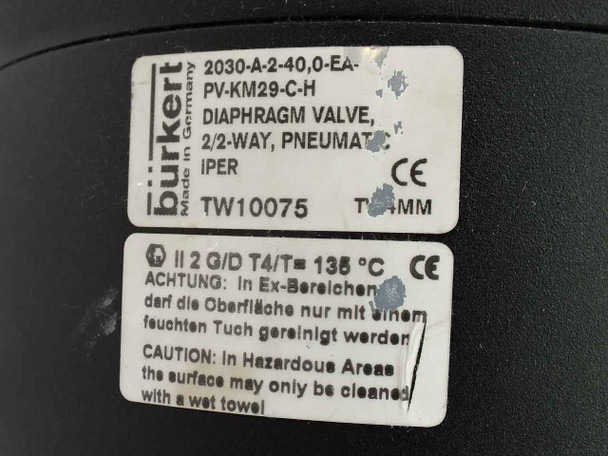

- Part Number: 2030-A-2-40, 0-EA-PV-KM29-C-H
- Reference Number: TW10075
- Valve Type: 2/2-Way Diaphragm Valve
- Actuation: Pneumatic
- Fail Position: Normally Closed (N.C.)
- Body Material: Plastic
- Connection Type: Removable radial true union (spigot and flange connections also supported)
- Flow Design: Flow-optimized body with zero dead volume
- Installation: Self-draining installation possible
- Maximum Temperature: 135°C
- Hazardous Area Rating: II 2 G/D T4/T = 135°C, CE marked
- Hazardous Area Caution: In hazardous areas, surface may only be cleaned with a wet towel
- Includes: Valve body with pneumatic actuator
Applications
The Burkert 2030 series is a well-established line of pneumatically actuated diaphragm valves used widely in chemical processing, water treatment, pharmaceutical manufacturing, semiconductor fabrication, and food and beverage production — anywhere aggressive, corrosive, or ultrapure media must be controlled without contamination risk. The plastic body makes it well suited for acids, caustics, and other media that would attack metal valves. The 2/2-way configuration provides simple on/off flow control, and the true union connection design allows the valve to be removed from the pipeline quickly for service or replacement without disturbing the surrounding piping. The zero dead volume flow path is particularly valued in sanitary and high-purity applications where media retention or cross-contamination must be avoided. Burkert introduced the 2030 series as part of their broad range of industrial and process valves and has supplied it into industries ranging from microelectronics to general chemical processing.
This Burkert 2030 2/2-way pneumatic diaphragm valve has been inspected and is in good used condition. It was pulled from a working environment where it was previously in active service. The plastic body and actuator show normal wear consistent with process use. The true union threaded connection and actuator ports appear intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Burkert |
Model: |
2030 |
MPN: |
2030-A-2-40,0-EA-PV-KM29-C-H |
Type: |
2/2-Way Pneumatic Diaphragm Valve |
SKU: |
51901 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Valve body with pneumatic actuator. Pulled from working environment. |
Country/Region of Manufacture: |
Germany |
Body Material: |
Plastic |
Actuation Type: |
Pneumatic |
Valve Configuration: |
2/2-Way (2-port, 2-position) |
Connection Type: |
True Union (Removable Radial) |
Normally Closed / Normally Open: |
Normally Closed (N.C.) |
Max Temperature Rating: |
135°C |
Hazardous Area Rating: |
II 2 G/D T4/T = 135°C CE |
Application: |
Aggressive Media, Chemical Processing |
Features: |
Zero dead volume, self-draining installation |
Compatible Connections: |
Spigot, Flange, True Union |
Part Number: |
TW10075 |
Condition Notes: |
Burkert 2030 pneumatic diaphragm valve, used, pulled from working environment. Inspected and in good condition. Plastic body and actuator show normal wear. True union connection intact. |
