Description

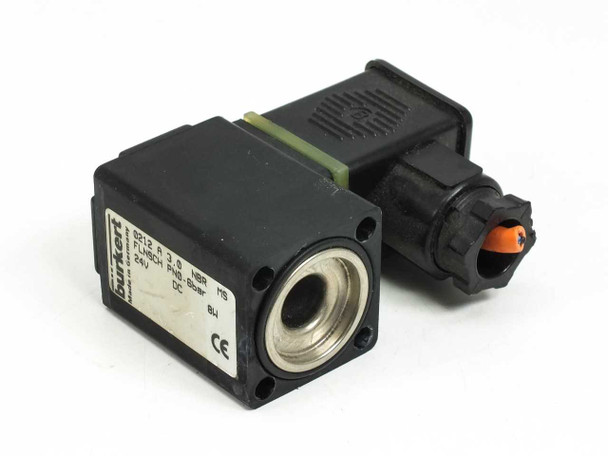

Burkert 0212 A 3.0 NBR MS Direct Acting 2-Way Solenoid Valve 24V DC 8W 6 Bar
The Burkert 0212 A is a compact direct acting 2-way solenoid valve with a 3.0 mm orifice, NBR (nitrile rubber) sealing, and a flanged body mounting style. It operates on 24V DC at 8W and handles pressure from 0 to 6 bar. The electrical connection is a standard DIN 43650 Form A (MS) connector. Made in Germany, this valve carries CE certification.
Specifications & What's Included
- Brand: Burkert, Made in Germany
- Model: 0212 A 3.0
- MPN: 0212 A 3.0 NBR MS FLNSCH
- Valve type: Direct acting, 2-way (normally closed)
- Orifice diameter: 3.0 mm
- Seal material: NBR (nitrile rubber)
- Mounting: Flanged (FLNSCH) – four-hole face mount
- Pressure range: PN 0–6 bar
- Coil voltage: 24V DC
- Power consumption: 8W
- Electrical connection: MS / DIN 43650 Form A connector plug (included, with orange safety clip)
- Certification: CE
- Includes: Valve body with integral solenoid coil and DIN MS connector plug
Applications
The Burkert 0212 series is a direct acting solenoid valve widely used in fluid and pneumatic control systems across industrial automation, laboratory equipment, food and beverage processing, chemical handling, and medical device manufacturing. Direct acting valves open and close purely by the electromagnetic force of the solenoid coil — they do not require a minimum differential pressure to operate, making them suitable for low-pressure and zero-pressure applications. The NBR seal material makes this valve compatible with water, air, neutral gases, compressed air circuits, and light oils. The flanged body mount allows secure integration directly into a manifold or pipe block, while the DIN 43650 Form A connector provides a standardized, quick-connect electrical interface common throughout European industrial equipment. Burkert has manufactured precision fluid control components in Germany since the 1940s, and the 0212 series has seen widespread use in laboratory automation, process control panels, and OEM fluid handling systems.
This Burkert 0212 A 3.0 NBR MS direct acting solenoid valve has been inspected and appears to be in good used condition. The valve body, solenoid coil housing, and flanged port face show typical light wear consistent with previous use. The DIN MS connector plug is intact with the orange safety locking clip present. The label is clean and fully legible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Burkert |
Model: |
0212 A 3.0 |
MPN: |
0212 A 3.0 NBR MS FLNSCH |
Type: |
Direct Acting 2-Way Solenoid Valve |
SKU: |
46578 |
Seller Notes: |
Valve body with integral solenoid coil and MS connector plug included |
Country/Region of Manufacture: |
Germany |
Valve Configuration: |
2-Way, Normally Closed (Direct Acting) |
Seal/Gasket Material: |
NBR (Nitrile Rubber) |
Orifice Size: |
3.0 mm |
Pressure Range: |
PN 0–6 bar |
Coil Voltage: |
24V DC |
Power Consumption: |
8W |
Electrical Connection: |
MS (DIN 43650 / Form A) Connector |
Mounting Style: |
Flanged (FLNSCH) |
Certifications: |
CE |
Compatible With: |
Water, air, neutral gases, light oils (NBR compatible media) |
Condition Notes: |
Burkert 0212 A 3.0 NBR MS solenoid valve. Inspected and in good used condition. Valve body, coil, and DIN connector intact. Label clean and legible. Normal light wear from previous use. |
