Description
Taiyo USR320-NM DC 24V Solenoid Valve Pneumatic Directional Control Valve
The Taiyo USR320-NM is a compact 24V DC solenoid-operated pneumatic directional control valve designed for industrial automation and fluid power applications. It uses an electromagnetic solenoid coil energized at 24V DC to shift an internal spool, routing compressed air to control the direction of pneumatic actuators such as cylinders and rotary actuators. The valve features a clear-top solenoid indicator housing, a manifold-mountable aluminum valve body, and a multi-port pneumatic connection pattern on the end face.
Specifications & What's Included

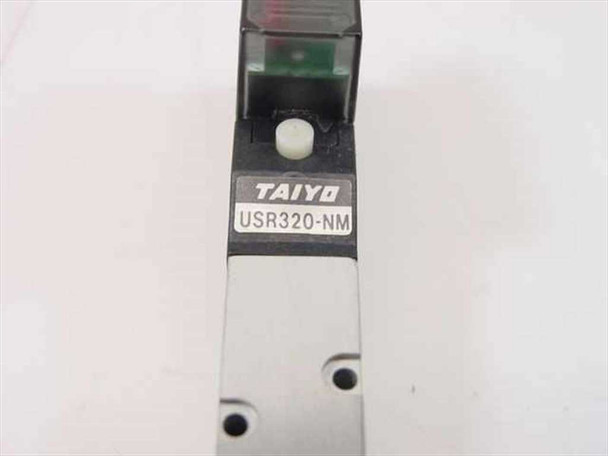

- Model: Taiyo USR320-NM

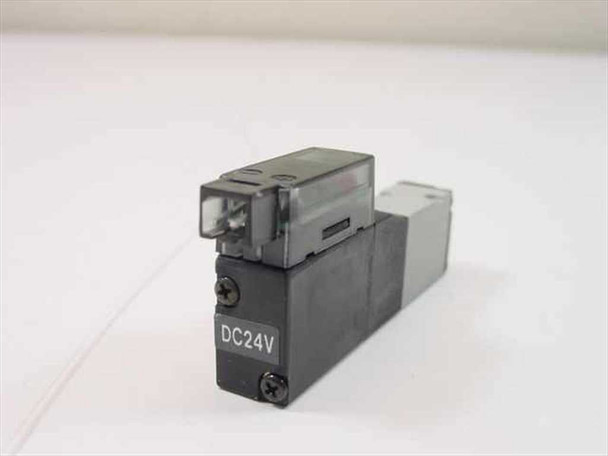

- Coil Voltage: DC 24V
- Actuator Type: Solenoid-operated
- Valve Function: Pneumatic directional control (spool-type)
- Media: Compressed air / pneumatic
- Body Material: Aluminum alloy valve body
- Solenoid Housing: Black plastic with clear indicator window
- Electrical Connection: Flying leads with connector (visible in photos)
- Mounting: Manifold or inline mount; multiple pneumatic ports on end face

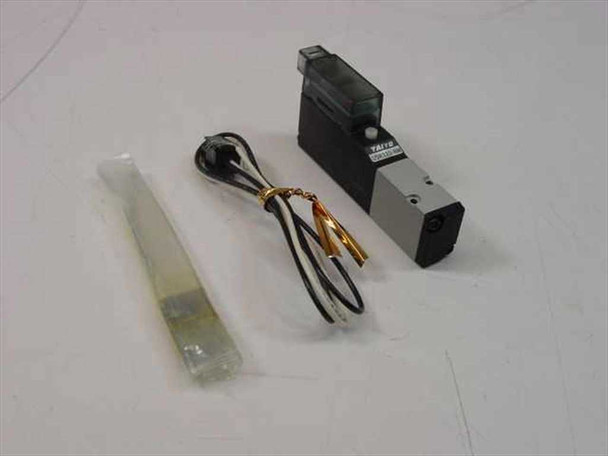

- Includes: Valve assembly with solenoid coil, wiring leads, and one spare gasket/seal strip (in sealed plastic bag)
Applications
Solenoid directional control valves like the Taiyo USR320-NM are standard components in pneumatic automation systems across manufacturing, assembly, and process industries. They are used to control the extension and retraction of pneumatic cylinders, the actuation of pneumatic grippers, and the routing of air in multi-stage pneumatic circuits. Taiyo is a well-regarded Japanese manufacturer of pneumatic and hydraulic components, and their compact solenoid valves are commonly found in machine tool automation, semiconductor handling equipment, packaging machinery, and general factory automation cells. The 24V DC coil voltage makes this valve directly compatible with standard PLC output cards and industrial 24V control panels, which is the dominant control voltage in modern automation systems.
This Taiyo USR320-NM 24V DC solenoid valve has been inspected and is in good condition. It was pulled from a working environment where it was in use and functional. The valve body and solenoid coil housing show normal handling wear consistent with service use. Wiring leads are intact, and a spare seal/gasket strip in a plastic bag is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Taiyo |
Model: |
USR320-NM |
MPN: |
USR320-NM |
Type: |
Pneumatic Solenoid Valve |
SKU: |
32153 |
Voltage: |
DC 24V |
Actuator Type: |
Solenoid |
Valve Function: |
Directional Control |
Media: |
Air / Pneumatic |
Coil Voltage: |
24V DC |
Seller Notes: |
Includes valve body, solenoid coil, wiring leads, and a spare gasket/seal strip in bag |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Compact / Inline Manifold Mount |
Condition Notes: |
Taiyo USR320-NM 24V DC solenoid valve. Pulled from a working environment where it was in use and functional. Inspected and in good condition. Includes wiring leads and spare seal strip. |
