Description

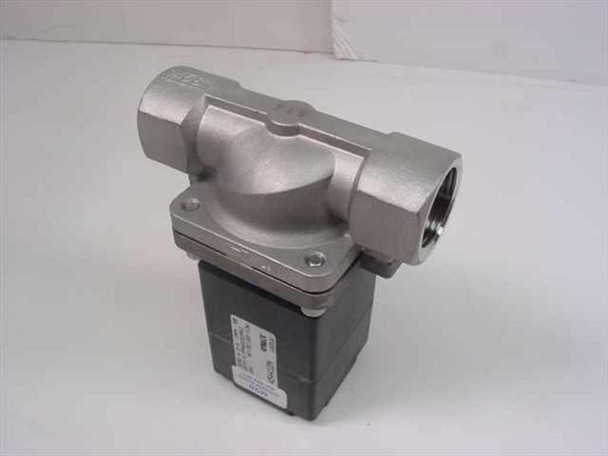

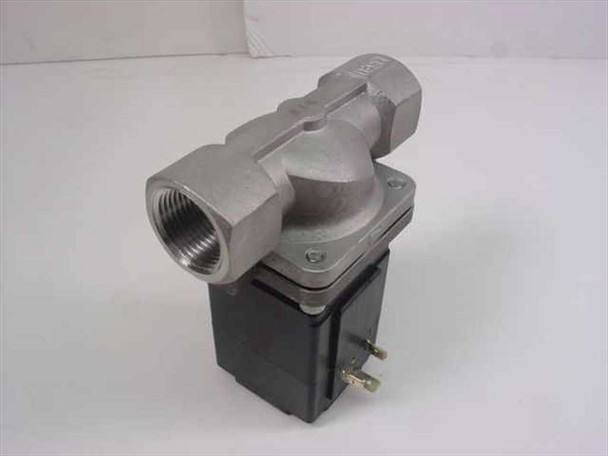

Burkert 454412N Model 290 2/2-Way Solenoid Valve 3/4 NPT SS 24V FPM NEMA 4
The Burkert Model 290 is a direct-acting, 2/2-way (two-port, two-position) solenoid valve in a normally closed configuration. In its de-energized state the valve is closed; applying 24V AC or DC to the coil opens the valve to allow flow. The stainless steel body and FPM (Viton) seals make it well suited for demanding fluid and gas control applications where corrosion resistance and broad chemical compatibility are required.
Specifications & What's Included
- Manufacturer Part Number (MPN): 454412N
- Model: 290 (label code: 0290 A)
- Valve type: 2/2-way, normally closed, direct-acting solenoid valve
- Body material: Stainless steel (SS)
- Seal material: FPM (Viton)
- Port connection: 3/4 in. FNPT (female NPT) — both inlet and outlet
- Orifice diameter: 3/4 in. (20 mm)
- Flow coefficient: Cv 5.8
- Coil voltage: 24V AC/DC universal
- Power consumption: 10W (per label: AC/DC 120/10W)
- Maximum pressure (PMAX): 230 PSI
- Enclosure rating: NEMA 4 / IP65 (dust-tight and water-resistant)
- Certifications: UL Recognized, CE marked
- Suffix / variant code: USZUU
- Includes: valve only (open-box; original packaging may not be included)
Applications
The Burkert 290 series is a widely used general-purpose solenoid valve found across process industries, laboratory automation, food and beverage, chemical processing, and OEM fluid-control systems. The 2/2-way normally closed design is the standard configuration for on/off fluid or gas shutoff — when power is cut, the valve closes and flow stops, which is the fail-safe behavior required in most process and safety applications. The stainless steel body and Viton seals handle a broad range of media including water, steam, oils, mild acids, and many solvents, and the NEMA 4/IP65 enclosure allows the valve to be mounted in wet or washdown environments. The 3/4 in. NPT connection and 5.8 Cv flow rating suit mid-range pipe sizes in both industrial and laboratory settings. At 24V AC/DC universal, the coil is compatible with a wide range of control circuits and PLCs.

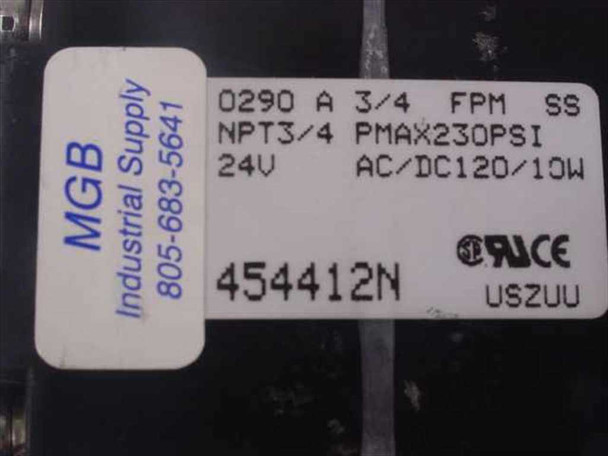

This Burkert 454412N Model 290 2/2-Way Solenoid Valve is new and unused. It may be out of its original packaging. The valve body, coil housing, and NPT connections appear clean and free of wear or damage. The label is intact and fully legible, showing all ratings. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Burkert |
Model: |
290 |
MPN: |
454412N |
SKU: |
25934 |
Type: |
2/2-Way Normally Closed Solenoid Valve |
Body Material: |
Stainless Steel |
Seal Material: |
FPM (Viton) |
Connection Size: |
3/4 in. FNPT |
Connection Type: |
Female NPT (FNPT) |
Orifice Size: |
3/4 in. (20mm) |
Flow Coefficient (Cv): |
5.8 |
Voltage: |
24V AC/DC Universal |
Power Consumption: |
10W (AC/DC 120/10W per label) |
Maximum Pressure: |
230 PSI |
Normally Open/Closed: |
Normally Closed |
Enclosure Rating: |
NEMA 4 / IP65 |
Certifications: |
UL Recognized, CE |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
New open-box unit; may be out of original packaging. Label reads 454412N, USZUU. |
Condition Notes: |
Burkert 454412N Model 290 solenoid valve — new and unused, may be out of original box. Clean with no wear or damage. Label intact with all ratings legible. |
