Description

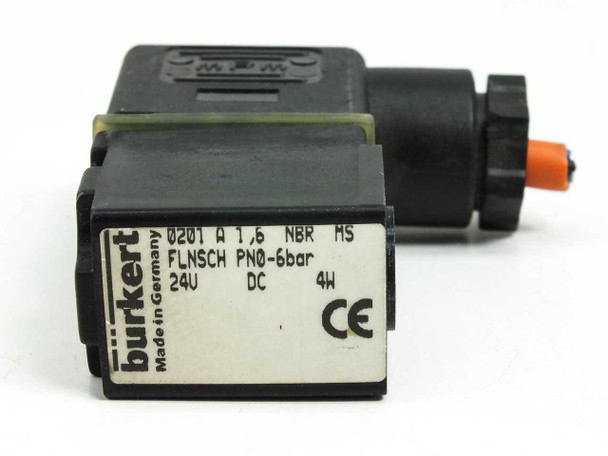

Burkert 0201 A 2/2-Way Miniature Solenoid Valve 1.6 NBR MS FLNSCH 24VDC 4W PN0-6bar
This is a 2/2-way miniature solenoid valve used for controlling hydraulic and pneumatic fluid flow. The valve switches between two positions when energized, directing or blocking fluid through a 1.6mm orifice.
Specifications & What's Included
- Brand: Burkert | Model: 0201 A
- Type: 2/2-Way Miniature Solenoid Valve, 2-port/2-position configuration
- Voltage: 24V DC | Power Consumption: 4W
- Pressure Range: PN0-6 bar
- Orifice Size: 1.6mm
- Seal Material: NBR (Nitrile Rubber)
- Body Material: MS (Brass)
- Mounting: Flange (FLNSCH) | Connector: DIN coil
- Certification: CE
- Includes: Solenoid valve body with coil and DIN connector
Applications
The Burkert 0201 A series is used in hydraulic and pneumatic systems for on/off fluid control. These valves are commonly integrated into machinery, automation equipment, and industrial processes requiring proportional flow switching. The compact design and low power consumption make them suitable for embedded control applications where space is limited.
Condition: Used
This Burkert 0201 A 2/2-Way Miniature Solenoid Valve has been inspected and is in good used condition. It was pulled from a working hydraulic system where it was in active use. The valve body and coil housing are intact, the DIN connector is present with lead wires attached, and the unit shows normal wear consistent with service use. No cracks, damage, or missing hardware are apparent. Please view our photo set and contact us if you have any questions.
This Burkert 0201 A 2/2-Way Miniature Solenoid Valve has been inspected and is in good used condition. It was pulled from a working hydraulic system where it was in active use. The valve body and coil housing are intact, the DIN connector is present with lead wires attached, and the unit shows normal wear consistent with service use. No cracks, damage, or missing hardware are apparent. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Burkert |
Model: |
0201 A |
MPN: |
0201 A 1.6 NBR MS FLNSCH PN0-6bar |
Type: |
2/2-Way Miniature Solenoid Valve |
SKU: |
46579 |
Seller Notes: |
Solenoid valve body with coil and connector; pulled from a hydraulic system |
Country/Region of Manufacture: |
Germany |
Voltage: |
24V DC |
Power Consumption: |
4W |
Pressure Range: |
PN0-6bar |
Seal Material: |
NBR (Nitrile Rubber) |
Body Material: |
MS (Brass) |
Valve Configuration: |
2/2-Way (2-port, 2-position) |
Orifice Size: |
1.6 mm |
Mounting Type: |
Flange (FLNSCH) |
Connector Type: |
DIN coil connector |
Certifications: |
CE |
Application: |
Hydraulic / Pneumatic fluid control |
Condition Notes: |
Burkert 0201 A 2/2-Way Miniature Solenoid Valve in good used condition. Pulled from a working hydraulic system. Body and coil intact, DIN connector present. Normal service wear. Contact us with questions. |
