Description
Burkert 0200 A Miniature Solenoid Valve 24V G1/8 NBR PN0-6bar 4W 057445U
The Burkert 0200 A is a direct-acting 2/2-way miniature solenoid valve designed for precise fluid and gas control in compact installations. With a 1.6 mm orifice, G1/8 threaded port, NBR seals, and a 24V DC / 4W coil, it is suited for low-flow applications requiring reliable on/off switching across a pressure range of 0 to 6 bar. The valve is made in Germany and carries CE certification.
Specifications & What's Included
- Manufacturer: Burkert (Made in Germany)
- Model: 0200 A
- Part Number: 057445U
- Valve Type: 2/2-Way Direct Acting Solenoid Valve, Normally Closed
- Orifice Size: 1.6 mm
- Port Connection: G1/8 (BSP threaded)
- Seal / Diaphragm Material: NBR (Nitrile Butadiene Rubber)
- Body Material: Brass
- Coil Voltage: 24V DC
- Power Consumption: 4W
- Operating Pressure Range: PN0–6 bar (0–87 psi)

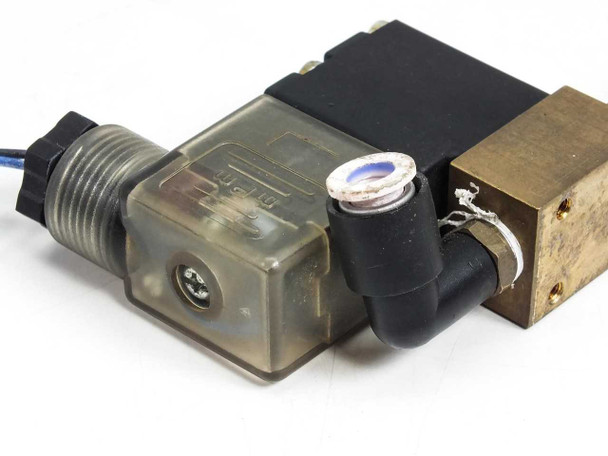

- Connector: DIN plug (MS form factor) with blue lead wire
- Push-in fitting present on top port

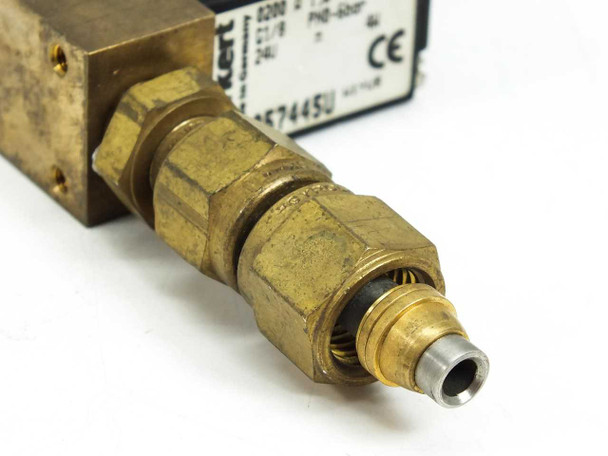

- Compression fitting on outlet port (brass, with ferrule and nut)
- CE certified
- Includes: valve with solenoid coil and DIN connector — no additional accessories
Applications
The Burkert 0200 series is one of Burkert's long-running miniature solenoid valve families, widely used in laboratory instruments, analytical equipment, medical gas systems, pneumatic control circuits, and OEM machinery where a small footprint and reliable on/off fluid switching are required. The G1/8 port and NBR seals make it compatible with air, water, light oils, and many neutral gases. The 24V DC coil is a standard voltage in both industrial control panels and laboratory instrument power supplies. These valves are common in gas chromatography sample handling, liquid dispensing systems, dental and medical gas lines, and small pneumatic actuator circuits. The 0–6 bar pressure range covers the majority of low-pressure instrument and process applications. Burkert 0200-series valves have been a staple of precision fluid control since the 1980s and remain in active production and widespread use today.
This Burkert 0200 A Miniature Solenoid Valve (057445U) has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The brass valve body and solenoid coil show normal age-related wear and surface oxidation consistent with industrial use; no cracks or damage to the housing are visible. The DIN connector and blue lead wire are intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Burkert |
Model: |
0200 A |
MPN: |
057445U |
Type: |
Miniature Solenoid Valve |
SKU: |
46580 |
Coil Voltage: |
24V DC |
Power Consumption: |
4W |
Port Size: |
G1/8 |
Pressure Range: |
PN0-6bar (0–87 psi) |
Seal Material: |
NBR (Nitrile) |
Body Material: |
Brass |
Orifice Size: |
1.6 mm |
Valve Function: |
2/2-Way, Normally Closed |
Connector Type: |
DIN plug connector (MS form) |
Country/Region of Manufacture: |
Germany |
Standards: |
CE |
Form Factor: |
Inline / Pipe Mount |
Seller Notes: |
Valve with solenoid coil and DIN connector. No additional accessories included. |
Condition Notes: |
This Burkert 0200 A Miniature Solenoid Valve (057445U) has been inspected and is in good used condition, pulled from a working environment. Normal age-related wear and surface oxidation on the brass body; coil and DIN connector intact. |
