Yaskawa
-
Yaskawa UGRMEM-04MSY41 Minertia RM Series Servo Motor 5:1 Gearbox Belt Pulley
Yaskawa
$175.00Was: $350.00Yaskawa UGRMEM-04MSY41 Minertia RM Series Servo Motor 5:1 Gearbox Belt PulleyDC servo motor with integrated 5:1 gearbox and toothed belt pulley assembly. Designed for motion control and automation...52396- SKU:
- 52396
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 11.00 LBS
- Brand:
- Yaskawa
- Model:
- UGRMEM-04MSY41
- MPN:
- UGRMEM-04MSY41
- Secondary Model:
- 702393-1
- SKU:
- 52396
- Type:
- DC Servo Motor with Gearbox and Belt Pulley
- Series:
- Minertia RM Series
- Gear Ratio:
- 5:1
- Drive Type:
- Belt Drive (Toothed Pulley)
- Country/Region of Manufacture:
- Japan
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes motor, 5:1 gearbox, and belt pulley assembly; power cable cut
- Compatible With:
- Yaskawa servo drive systems, automation and motion control equipment
- Form Factor:
- Integrated Motor-Gearbox Assembly
- Condition Notes:
- Yaskawa UGRMEM-04MSY41 Minertia RM servo motor with 5:1 gearbox and belt pulley. Pulled from a working environment; inspected and in good condition. Power cable has been cut and will need rewiring. Normal wear visible.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$175.00Was: $350.00 -
Yaskawa SGME-04AF14 AC Servo Motor 400W 200V 2.6A 1.27Nm 3000RPM Ins B
Yaskawa
$175.00Was: $350.00Yaskawa SGME-04AF14 AC Servo Motor 400W 200V 2.6A 1.27Nm 3000RPM Ins BThe Yaskawa SGME-04AF14 is a three-phase AC servo motor from Yaskawa Electric Corporation's SGME series, rated at 400W continuous...49407- SKU:
- 49407
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Yaskawa
- Model:
- SGME-04AF14
- MPN:
- SGME-04AF14
- SKU:
- 49407
- Type:
- AC Servo Motor
- Power Rating:
- 400W
- Voltage Rating:
- 200V
- Current Rating:
- 2.6A
- Torque:
- 1.27 N·m
- Speed (RPM):
- 3000 RPM
- Insulation Class:
- Class B
- Series:
- SGME
- Phase:
- Three Phase
- Country/Region of Manufacture:
- Japan
- Manufacture Date:
- December 1997
- Shaft:
- No keyway (keyless shaft)
- Connector:
- Multi-pin encoder and power connectors (attached cable)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes attached encoder and power cable; no shaft key; housing color may vary
- Condition Notes:
- Yaskawa SGME-04AF14 AC Servo Motor pulled from a working tool. Inspected and in good physical condition. Not powered or tested at our facility — no compatible drive on site. Shaft has no key. Encoder and power cable included. Housing color may vary.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$175.00Was: $350.00 -
Yaskawa FELQ-5 3-Phase Induction Motor 0.4kW 200/220V 8-Pole 710-855 RPM JP44
Yaskawa
$250.00Was: $500.00Yaskawa FELQ-5 3-Phase Induction Motor 0.4kW 200/220V 8-Pole 710-855 RPM JP44Three-phase induction motor manufactured by Yaskawa for continuous duty operation. Rated 0.4 kW at dual voltage input...47915- SKU:
- 47915
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 55.00 LBS
- Brand:
- Yaskawa
- Model:
- FELQ-5
- MPN:
- FELQ-5
- Type:
- 3-Phase Induction Motor
- SKU:
- 47915
- Condition:
- Used – Inspected and Tested
- Power Rating:
- 0.4 kW
- Voltage Rating:
- 200/220 VAC
- Phase:
- Three Phase
- Frequency:
- 50/60 Hz
- Current Rating (Amps):
- 3.1A @ 200V 50Hz; 2.7A @ 200V 60Hz; 2.8A @ 220V 60Hz
- Speed (RPM):
- 710 RPM (50Hz) / 845-855 RPM (60Hz)
- Number of Poles:
- 8
- Duty Rating:
- Continuous (CONT)
- Insulation Class:
- Class E
- Frame Size:
- 90L
- Standard:
- JIS C 4004
- Enclosure Type:
- JP44
- Vibration Grade:
- V-
- Bearing No.:
- 6205ZZ (both ends)
- Shaft Diameter:
- 25 mm (15/16 in)
- Mounting:
- Flange Mount
- Country/Region of Manufacture:
- Japan
- Seller Notes:
- Includes attached lead wires. Motor only — no gearbox or drive.
- Condition Notes:
- Yaskawa FELQ-5 3-Phase Induction Motor tested good at our facility — powers on, spins very smoothly at 208 VAC. Good used condition; junction box and leads intact. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -

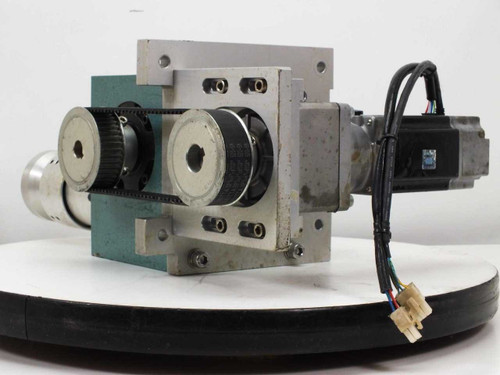

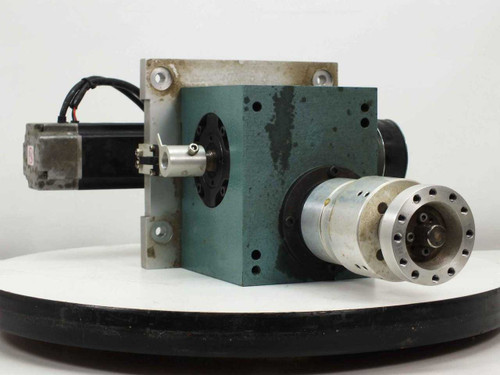

Yaskawa SGML-04AF14 AC Servo Motor 400W 200V w/ BD-103-005-P110 1:9 Gearbox
Yaskawa
$650.00Was: $1,300.00Yaskawa SGML-04AF14 AC Servo Motor 400W 200V w/ BD-103-005-P110 1:9 GearboxThis is a Yaskawa SGML-04AF14 AC Servo Motor paired with a Nidec-Shimpo VRSF-LB-S9C-400 gearbox (part number...47536- SKU:
- 47536
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 39.00 LBS
- Brand:
- Yaskawa
- Model:
- SGML-04AF14
- MPN:
- SGML-04AF14
- Secondary Model:
- BD-103-005-P110
- Type:
- AC Servo Motor with Gearbox Assembly
- SKU:
- 47536
- Power Rating:
- 400W
- Voltage Rating:
- 200V
- Current Rating:
- 2.6A
- Torque:
- 1.27 N·m
- Speed:
- 3000 RPM
- Insulation Class:
- Class B
- Order Number:
- R10296-197-11
- Gearbox Model:
- VRSF-LB-S9C-400
- Gearbox Manufacturer:
- Nidec-Shimpo
- Gear Ratio:
- 1:9
- Gearbox Part Number:
- BD-103-005-P110
- Drive Belt:
- Unitta 520-5M timing belt
- Connector Type:
- Multi-pin rectangular motor connector
- Country/Region of Manufacture:
- Japan
- Manufacture Date:
- 1999.06 (visible on one motor label)
- Condition:
- Used – Inspected
- Seller Notes:
- Includes servo motor and gearbox assembly with belt drive and output shaft
- Condition Notes:
- Yaskawa SGML-04AF14 AC Servo Motor with BD-103-005-P110 1:9 gearbox. Inspected, good used condition. Gearbox shows light surface oxidation and shop wear. Belt, pulleys, and connectors present. See photos.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$650.00Was: $1,300.00 -
Yaskawa SGDL-04AP Servopack Servo Drive 400W 200-230VAC 1-Phase 2.6A CN1 CN2
Yaskawa
$95.00Was: $200.00Yaskawa SGDL-04AP Servopack Servo Drive 400W 200-230VAC 1-Phase 2.6A CN1 CN2AC servo drive manufactured by Yaskawa for controlling brushless AC servo motors in industrial automation applications...47050- SKU:
- 47050
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Yaskawa
- Model:
- SGDL-04AP
- MPN:
- SGDL-04AP
- Secondary Model:
- 4P0205-6-51
- SKU:
- 47050
- Type:
- AC Servo Drive / Servopack
- Input Voltage:
- AC 200-230V
- Input Phase:
- 1-Phase (Single Phase)
- Input Frequency:
- 50/60 Hz
- Input Current:
- 6.0 Amps
- Output Voltage:
- 0-230V Max
- Output Current:
- 2.6 Amps
- Power Rating:
- 400W
- Horsepower:
- 0.27 HP
- Voltage Class:
- 200V Class
- CN1 Connector:
- 26-pin D-sub (encoder / motor feedback)
- CN2 Connector:
- 14-pin D-sub (I/O interface)
- CN3 Connector:
- DB9 (RS-232C serial communication)
- Power Terminal:
- Screw terminal block (6-position)
- Form Factor:
- Standalone / Panel Mount
- Series:
- SGDL
- Country/Region of Manufacture:
- Japan
- Seller Notes:
- Unit powers on; POWER LED confirmed. Further functional testing not completed.
- Condition Notes:
- Yaskawa SGDL-04AP Servopack servo drive. Powers on with 200VAC — POWER LED confirmed. Unable to test further. Good used cosmetic condition, connectors intact. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$95.00Was: $200.00 -
Yaskawa CIMR-XCAA20P2 VS Mini Inverter Drive 200V 3PH 0.2kW AC Motor Drive
Yaskawa
$80.00Was: $150.00Yaskawa CIMR-XCAA20P2 VS Mini Inverter Drive 200V 3PH 0.2kW AC Motor DriveVariable frequency drive (VFD) for controlling AC induction motors. Converts fixed-frequency three-phase input power to...46711- SKU:
- 46711
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Yaskawa
- Model:
- CIMR-XCAA20P2
- MPN:
- CIMR-XCAA20P2
- Type:
- Variable Frequency Drive (VFD) / AC Inverter Drive
- SKU:
- 46711
- Series:
- VS Mini
- Input Voltage:
- AC 200-230V
- Input Phase:
- 3-Phase
- Input Frequency:
- 50/60Hz
- Input Current:
- 1.7A
- Output Voltage:
- AC 0-230V
- Output Phase:
- 3-Phase
- Output Power:
- 0.2kW (0.25 HP)
- Output Apparent Power:
- 0.6 kVA
- Output Current:
- 1.5A
- Power Rating:
- 0.2 kW
- Operator Panel:
- JVOP-120 Digital Operator
- Control Terminals:
- SF, SR, S1, SC, FS, FR, FC; MA, MB, MC
- Motor Output Terminals:
- U, V, W
- Power Input Terminals:
- R, S, T, B1, B2
- Form Factor:
- DIN Rail / Panel Mount
- Country/Region of Manufacture:
- Japan
- Lot Number:
- NR3XA02-964-53S3
- Condition:
- Used – Inspected, Not Bench-Tested
- Seller Notes:
- Unit only; no additional accessories included.
- Condition Notes:
- Yaskawa CIMR-XCAA20P2 VS Mini inverter drive. Inspected and in good used condition; has not been powered or tested at our facility. Housing and terminals appear intact with normal light wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$80.00Was: $150.00
