Description
Yaskawa SGDL-04AP Servopack Servo Drive 400W 200-230VAC 1-Phase 2.6A CN1 CN2
AC servo drive manufactured by Yaskawa for controlling brushless AC servo motors in industrial automation applications. Single-phase input rated 200-230VAC, 400W output capacity.
Specifications & What's Included
- Input: 200-230VAC, 1-phase, 50/60 Hz, 6.0A max
- Output: 0-230V, 2.6A, 400W, 0.27 HP
- CN1: 26-pin D-sub encoder/motor feedback connector

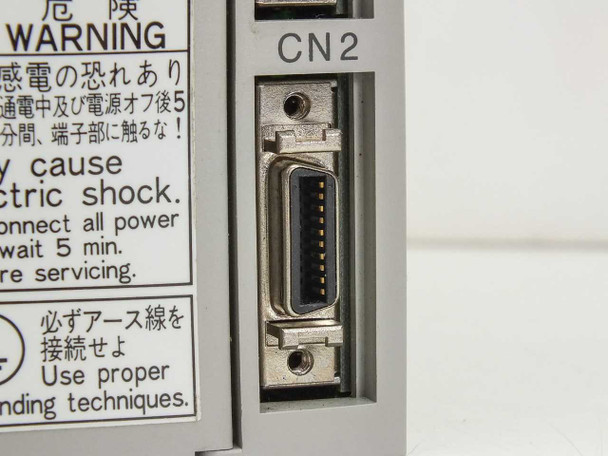

- CN2: 14-pin D-sub I/O interface connector

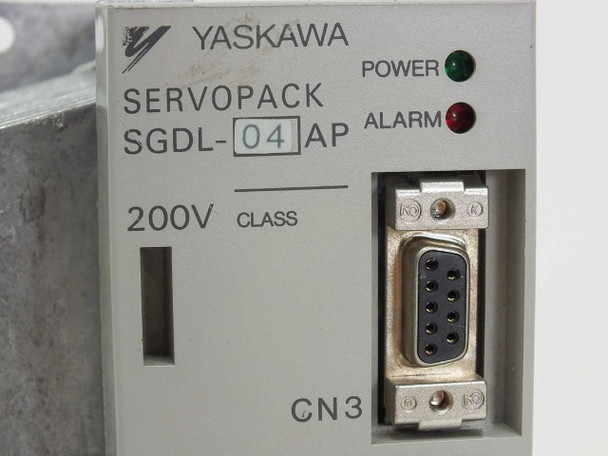

- CN3: DB9 RS-232C serial communication

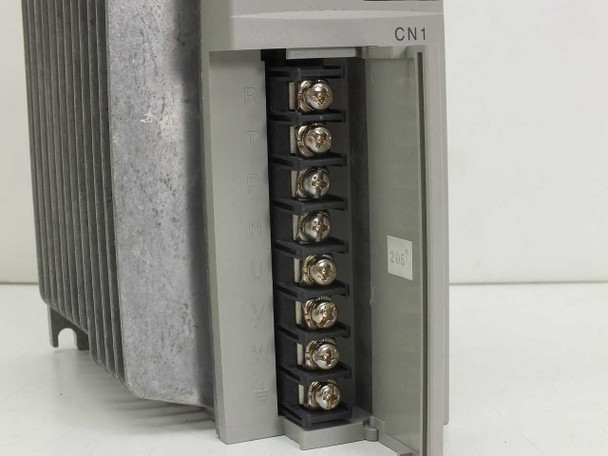

- Power terminal: 6-position screw block
- Form factor: Standalone/panel mount
Applications
SGDL servopack drives are used in CNC machinery, industrial automation equipment, and precision motion control systems requiring coordinated servo motor operation. Commonly integrated into packaging machinery, textile equipment, and light manufacturing automation. Supports closed-loop motor feedback via encoder connections for position and velocity control.
Condition: Used
This Yaskawa SGDL-04AP Servopack servo drive has been inspected and is in good used condition cosmetically. It powers on with 200VAC and the POWER indicator lights up, confirming the unit is alive. We were not able to test it further beyond power-on. The unit shows normal wear consistent with prior industrial use — the housing is intact with no cracks, and the connectors appear clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Yaskawa SGDL-04AP Servopack servo drive has been inspected and is in good used condition cosmetically. It powers on with 200VAC and the POWER indicator lights up, confirming the unit is alive. We were not able to test it further beyond power-on. The unit shows normal wear consistent with prior industrial use — the housing is intact with no cracks, and the connectors appear clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Yaskawa |
Model: |
SGDL-04AP |
MPN: |
SGDL-04AP |
Secondary Model: |
4P0205-6-51 |
SKU: |
47050 |
Type: |
AC Servo Drive / Servopack |
Input Voltage: |
AC 200-230V |
Input Phase: |
1-Phase (Single Phase) |
Input Frequency: |
50/60 Hz |
Input Current: |
6.0 Amps |
Output Voltage: |
0-230V Max |
Output Current: |
2.6 Amps |
Power Rating: |
400W |
Horsepower: |
0.27 HP |
Voltage Class: |
200V Class |
CN1 Connector: |
26-pin D-sub (encoder / motor feedback) |
CN2 Connector: |
14-pin D-sub (I/O interface) |
CN3 Connector: |
DB9 (RS-232C serial communication) |
Power Terminal: |
Screw terminal block (6-position) |
Form Factor: |
Standalone / Panel Mount |
Series: |
SGDL |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Unit powers on; POWER LED confirmed. Further functional testing not completed. |
Condition Notes: |
Yaskawa SGDL-04AP Servopack servo drive. Powers on with 200VAC — POWER LED confirmed. Unable to test further. Good used cosmetic condition, connectors intact. Please view photos and contact us with questions. |
