Description

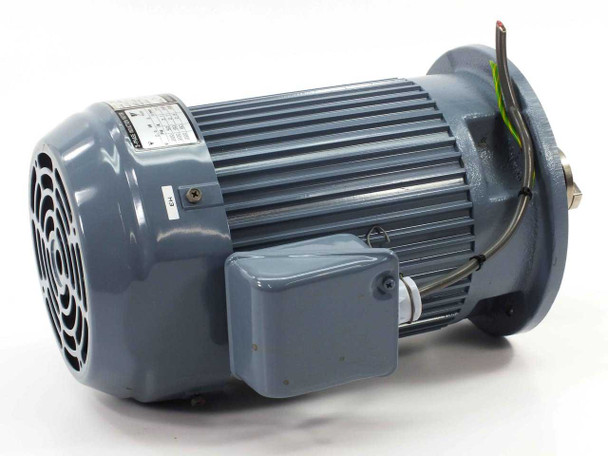

Yaskawa FELQ-5 3-Phase Induction Motor 0.4kW 200/220V 8-Pole 710-855 RPM JP44
Three-phase induction motor manufactured by Yaskawa for continuous duty operation. Rated 0.4 kW at dual voltage input (200/220 VAC) with 50/60 Hz compatibility and low-speed 8-pole design.
Specifications & What's Included

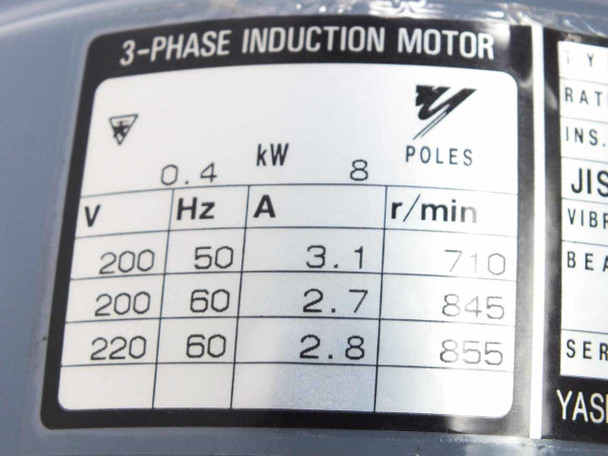

- Power: 0.4 kW; Voltage: 200/220 VAC; Frequency: 50/60 Hz
- Speed: 710 RPM (50 Hz) / 845–855 RPM (60 Hz)
- Current: 3.1 A @ 200V 50Hz, 2.7 A @ 200V 60Hz, 2.8 A @ 220V 60Hz
- 8-pole configuration; Class E insulation; Frame 90L
- Shaft: 25 mm diameter; Flange mount; Bearings 6205ZZ both ends
- Enclosure: JP44; Vibration grade V-; JIS C 4004 standard
- Includes attached lead wires; motor only, no gearbox or drive
Applications
Low-speed induction motors of this type are used in conveyor systems, fans, pumps, and machine tool drives where reduced RPM and continuous operation are required. The 8-pole design is common in industrial equipment across Europe and Asia operating on 50 Hz systems. Dual-voltage capability allows operation on both 50 and 60 Hz grids, making it suitable for cross-regional installations and retrofit applications.
Condition: Used

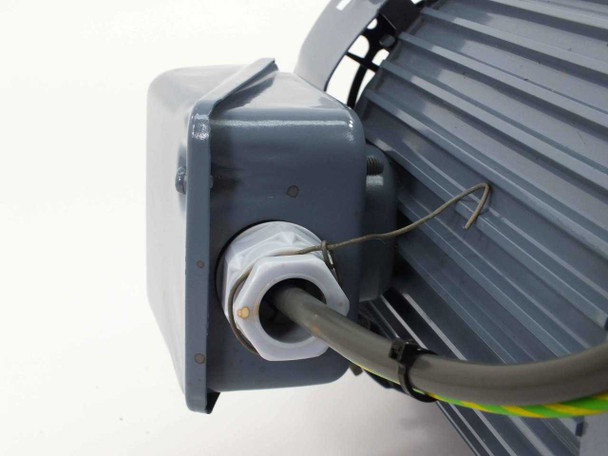

This Yaskawa FELQ-5 3-Phase Induction Motor has been powered and tested at our facility and is in good working order. It runs and spins very smoothly. Testing was done at 208 VAC. The motor body is in good used condition with some surface marks consistent with normal handling and prior installation. The junction box, cable gland, and lead wires are intact and show no damage. Please view our photo set and contact us if you have any questions.
This Yaskawa FELQ-5 3-Phase Induction Motor has been powered and tested at our facility and is in good working order. It runs and spins very smoothly. Testing was done at 208 VAC. The motor body is in good used condition with some surface marks consistent with normal handling and prior installation. The junction box, cable gland, and lead wires are intact and show no damage. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Yaskawa |
Model: |
FELQ-5 |
MPN: |
FELQ-5 |
Type: |
3-Phase Induction Motor |
SKU: |
47915 |
Condition: |
Used – Inspected and Tested |
Power Rating: |
0.4 kW |
Voltage Rating: |
200/220 VAC |
Phase: |
Three Phase |
Frequency: |
50/60 Hz |
Current Rating (Amps): |
3.1A @ 200V 50Hz; 2.7A @ 200V 60Hz; 2.8A @ 220V 60Hz |
Speed (RPM): |
710 RPM (50Hz) / 845-855 RPM (60Hz) |
Number of Poles: |
8 |
Duty Rating: |
Continuous (CONT) |
Insulation Class: |
Class E |
Frame Size: |
90L |
Standard: |
JIS C 4004 |
Enclosure Type: |
JP44 |
Vibration Grade: |
V- |
Bearing No.: |
6205ZZ (both ends) |
Shaft Diameter: |
25 mm (15/16 in) |
Mounting: |
Flange Mount |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Includes attached lead wires. Motor only — no gearbox or drive. |
Condition Notes: |
Yaskawa FELQ-5 3-Phase Induction Motor tested good at our facility — powers on, spins very smoothly at 208 VAC. Good used condition; junction box and leads intact. Please view photos and contact us with questions. |
