Power One
-

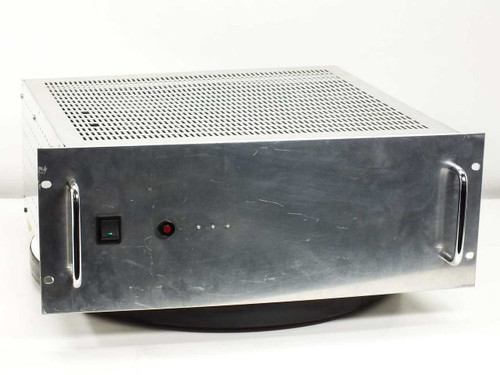

Power One 53514G 53516 53624E 53626 Power Supply Custom Enclosure w/ EMI Filter
Power One
$110.00Was: $225.00Power One 53514G 53516 53624E 53626 Power Supply Custom Enclosure w/ EMI Filter RelayThis is a Power One multi-output DC power supply assembly housed in a custom sheet-metal enclosure. The unit...45834- SKU:
- 45834
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 48.00 LBS
- Brand:
- Power One
- Model:
- 53514G
- MPN:
- BD.53514G
- Secondary Model:
- 53516 / 53624E / 53626
- Type:
- Multi-Output DC Power Supply Assembly
- SKU:
- 45834
- Form Factor:
- Custom Rackmount Enclosure
- Power Supply Card 1:
- BD.53514G, Assy. 53516
- Power Supply Card 2:
- BD.53624E, Assy. 53626 (Qty 2)
- EMI Filter:
- Corcom 3VSK7 F7236, 3A, 120/250V
- Relay 1:
- Relco C2-A29
- Relay 2:
- Relay Finder 60.12, 10A 250V (Qty 2)
- Output Voltages:
- +15V, -15V, GND (labeled on output cable)
- AC Input Connector:
- IEC C14 (rear panel)
- Output Connector:
- 9-pin circular connector (rear panel)
- Condition:
- Used – Inspected
- Seller Notes:
- Includes integrated cable harness with circular output connector and IEC AC input
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Power One 53514G multi-output power supply in custom enclosure. Inspected and in good used condition. Surface scratching on enclosure panels; internal boards and components appear intact. Includes cable harness and IEC inlet.
$110.00Was: $225.00 -
Power-One F24-12 DC Power Supply 24VDC 12A 28VDC 10A 115/230VAC For Parts
Power One
$45.00Was: $90.00Power-One F24-12 DC Power Supply 24VDC 12A 28VDC 10A 115/230VAC For PartsThe Power-One F24-12 is a linear DC power supply manufactured by Power-One of Camarillo, California. It is a...37188- SKU:
- 37188
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Power-One
- Model:
- F24-12
- MPN:
- F24-12
- Type:
- Linear DC Power Supply
- SKU:
- 37188
- Condition:
- As-Is / For Parts or Not Working
- Input Voltage:
- 115/230 VAC
- Input Frequency:
- 47–440 Hz
- Output Voltage:
- 24 VDC or 28 VDC (jumper selectable)
- Output Current:
- 12A @ 24VDC; 10A @ 28VDC
- Voltage Selection:
- Jumper selectable: 115VAC or 230VAC
- Fuse (115VAC):
- 6.0 Amps
- Fuse (230VAC):
- 3.0 Amps
- Form Factor:
- Open Frame / Panel Mount
- Certifications:
- CSA (38-82)
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Sold as-is for parts. Random testing shows ~18V DC output instead of rated voltage.
- Condition Notes:
- Power-One F24-12 DC Power Supply sold as-is for parts. Random testing shows ~18V DC output (rated 24V or 28V). Transformer shows visible heat damage. Not functional as-is. For parts or repair only.
$45.00Was: $90.00 -
Power-One 12253 Fuse Panel Power Supply Mallory CGS 13000MFD 50VDC 115-230VAC
Power One
$60.00Was: $125.00Power-One 12253 Fuse Panel Power Supply Mallory CGS 13000MFD 50VDC 115-230VAC Transformer-based linear power supply designed for panel-mount installation in industrial fuse panel assemblies. Converts...39778- SKU:
- 39778
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 28.00 LBS
- Brand:
- Power-One
- Model:
- 12253
- MPN:
- 12253
- SKU:
- 39778
- Condition:
- Used – Inspected
- Seller Notes:
- Includes Mallory Type CGS 13000MFD 50VDC capacitors and alarm relay module
- Form Factor:
- Panel Mount
- Power Requirements:
- 115–230VAC, 47–440Hz
- Voltage Rating:
- 115–230VAC input; 50VDC capacitor rating
- Capacitor Type:
- Mallory Type CGS, 13000MFD, 50VDC
- Capacitor Part Number:
- 103-10028
- Max Surge Voltage:
- 65VDC
- Temperature Rating:
- 0°C to +75°C (EMI filter); +85°C (capacitor)
- EMI Filter:
- 3EF1, 250V~3A, 50-60Hz, L-1.0mH
- Alarm Output:
- Relay contacts: NO Alarm, COM, Alarm (GND, Volts labeled)
- Indicator Lights:
- 2x green, 2x red/amber panel indicators
- Country of Manufacture:
- USA (Camarillo, California)
- Compatible With:
- Custom industrial fuse panel assemblies
- Type:
- Transformer-based linear power supply with capacitor filter bank
- Condition Notes:
- Power-One 12253 Fuse Panel Power Supply inspected and in good used condition. Front panel shows light wear. Internal transformer, Mallory 13000MFD 50VDC capacitors, and alarm relay module appear intact. Not bench-tested.
$60.00Was: $125.00 -
Power One F24-12-A DC Power Supply AS IS For Parts or Repair Value Only
Power One
$24.10Was: $65.00Power One F24-12-A DC Power Supply AS IS For Parts or Repair Value Only Manufacturer's Original Specs - These Units Don't Test to These Numbers: Input: 115 / 230 VAC, 47 ~ 440 Hz Rated...37189- SKU:
- 37189
- Weight:
- 20.00 LBS
$24.10Was: $65.00 -
Power One PR1857 Dual Output ±5V DC Lab Bench Power Supply 115VAC Banana
Power One
$35.00Was: $70.00Power One PR1857 Dual Output ±5V DC Lab Bench Power Supply 115VAC BananaDual output benchtop DC power supply providing regulated ±5V output from 115V AC input. Delivers separate positive and negative...32804- SKU:
- 32804
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 11.00 LBS
- Brand:
- Power One
- Model:
- PR1857
- MPN:
- PR1857
- Type:
- Dual Output DC Bench Power Supply
- SKU:
- 32804
- Input Voltage:
- 115V AC
- Output Voltage:
- ±5V DC (positive and negative 5V)
- Number of Outputs:
- 2 (bipolar: +5V and -5V)
- Output Connector:
- Banana Jacks
- Power Requirements:
- 115V AC, 60Hz
- Form Factor:
- Benchtop
- Enclosure:
- Metal chassis, gray finish
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Includes attached AC power cord. Unit tested and working.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Power One PR1857 ±5V DC bench power supply. Tested at our facility and in good working order. Good used condition with light surface wear. Includes attached AC power cord. All banana jack terminals intact.
$35.00Was: $70.00 -
Power-One CPD 200-4530 DC-DC Converter 200W 36-75V In 5V 3.3V 12V Plug-In
Power One
$45.00Was: $90.00Power-One CPD 200-4530 DC-DC Converter 200W 36-75V In 5V 3.3V 12V Plug-InDC-DC converter module designed to regulate and convert high-voltage DC input to multiple stabilized lower-voltage outputs...28824- SKU:
- 28824
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Power-One
- Model:
- CPD 200-4530
- MPN:
- CPD 200-4530
- Type:
- DC-DC Converter Power Supply Module
- SKU:
- 28824
- Form Factor:
- Plug-In Module
- Input Voltage:
- 36–75V DC
- Output 1:
- 5V DC, 40A
- Output 2:
- 3.3V DC, 40A
- Output 3:
- 12V DC, 5.5A
- Output 4:
- -12V DC, 1.5A
- Number of Outputs:
- 4
- Max Output Power:
- 200W
- Enclosure Rating:
- IP20
- Certifications:
- CE, TÜV
- Country/Region of Manufacture:
- Switzerland
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Plug-in module only; tested and in working order.
- Condition Notes:
- Power-One CPD 200-4530 DC-DC Converter tested and in working order. Good used condition with normal cosmetic wear. Output connector and extraction handle present and intact.
$45.00Was: $90.00
