Description
Power-One 12253 Fuse Panel Power Supply Mallory CGS 13000MFD 50VDC 115-230VAC
Transformer-based linear power supply designed for panel-mount installation in industrial fuse panel assemblies. Converts 115–230VAC input to regulated 50VDC output with integrated capacitor filter bank and alarm relay monitoring.
Specifications & What's Included

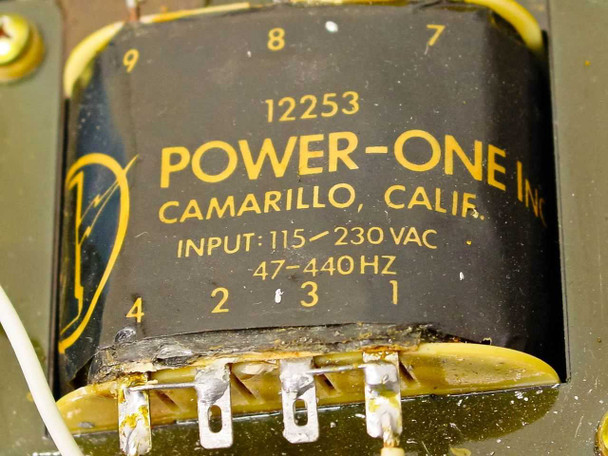

- Input: 115–230VAC, 47–440Hz
- Output: 50VDC (capacitor rating), 65VDC max surge
- Filter Bank: Mallory Type CGS, 13000MFD, 50VDC capacitors (Part 103-10028)
- EMI Filter: 3EF1, 250V~3A, 50-60Hz, L-1.0mH
- Alarm Relay: NO/COM/Alarm contacts with ground and voltage labels

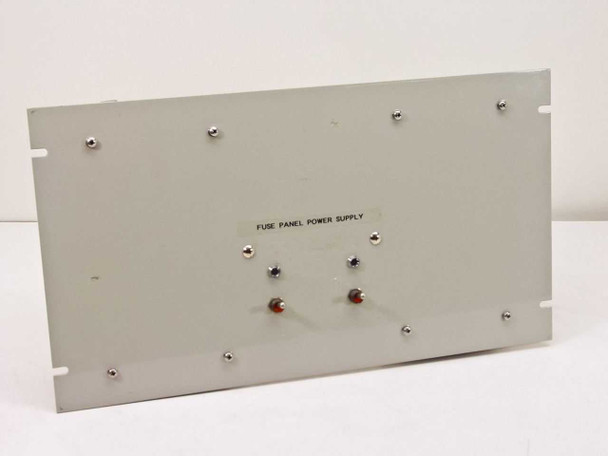

- Panel Indicators: 2× green, 2× red/amber status lights
- Operating Temperature: 0°C to +75°C (EMI filter), +85°C (capacitor)
- Manufactured in Camarillo, California
Applications
Used in industrial control systems and telecommunications equipment requiring regulated 50VDC distribution from AC mains. Commonly integrated into custom fuse panel assemblies for machinery control, power distribution, and backup monitoring. The alarm relay provides notification of supply faults or voltage irregularities.
Condition: Used
This Power-One 12253 Fuse Panel Power Supply has been inspected and is in good used condition. The front panel shows light surface soiling and minor scuffs consistent with prior use, but the panel structure is intact and the indicator lights are present. Internally, the Power-One 12253 transformer, Mallory Type CGS 13000MFD 50VDC capacitor bank, EMI line filter, and alarm relay module are all visually intact with no obvious damage, broken leads, or burnt components observed. Wiring appears complete and original. Please view our photo set and contact us if you have any questions.
This Power-One 12253 Fuse Panel Power Supply has been inspected and is in good used condition. The front panel shows light surface soiling and minor scuffs consistent with prior use, but the panel structure is intact and the indicator lights are present. Internally, the Power-One 12253 transformer, Mallory Type CGS 13000MFD 50VDC capacitor bank, EMI line filter, and alarm relay module are all visually intact with no obvious damage, broken leads, or burnt components observed. Wiring appears complete and original. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Power-One |
Model: |
12253 |
MPN: |
12253 |
SKU: |
39778 |
Condition: |
Used – Inspected |
Seller Notes: |
Includes Mallory Type CGS 13000MFD 50VDC capacitors and alarm relay module |
Form Factor: |
Panel Mount |
Power Requirements: |
115–230VAC, 47–440Hz |
Voltage Rating: |
115–230VAC input; 50VDC capacitor rating |
Capacitor Type: |
Mallory Type CGS, 13000MFD, 50VDC |
Capacitor Part Number: |
103-10028 |
Max Surge Voltage: |
65VDC |
Temperature Rating: |
0°C to +75°C (EMI filter); +85°C (capacitor) |
EMI Filter: |
3EF1, 250V~3A, 50-60Hz, L-1.0mH |
Alarm Output: |
Relay contacts: NO Alarm, COM, Alarm (GND, Volts labeled) |
Indicator Lights: |
2x green, 2x red/amber panel indicators |
Country of Manufacture: |
USA (Camarillo, California) |
Compatible With: |
Custom industrial fuse panel assemblies |
Type: |
Transformer-based linear power supply with capacitor filter bank |
Condition Notes: |
Power-One 12253 Fuse Panel Power Supply inspected and in good used condition. Front panel shows light wear. Internal transformer, Mallory 13000MFD 50VDC capacitors, and alarm relay module appear intact. Not bench-tested. |
