Elpac Power Systems

Mallory CGS 63000MFD 30VDC Capacitor w/ Transformer 105/115/125VAC 3U Rackmount

(No reviews yet) Write a Review
SKU:
47567
MPN:
BFS 200-20
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Shipping:
Calculated at Checkout

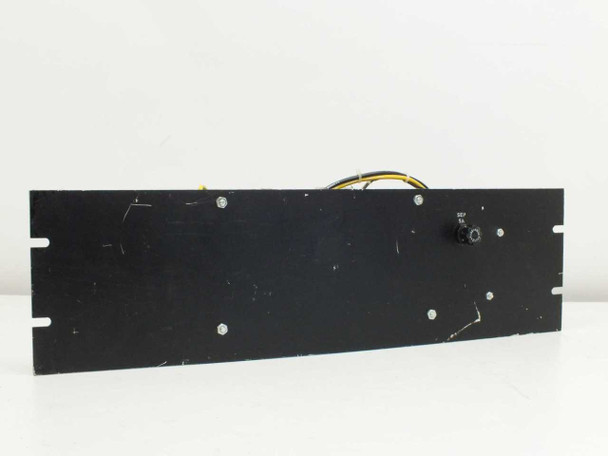

  • 3U black rackmount panel front view showing scratched surface finish and small toggle switch with yellow wiring

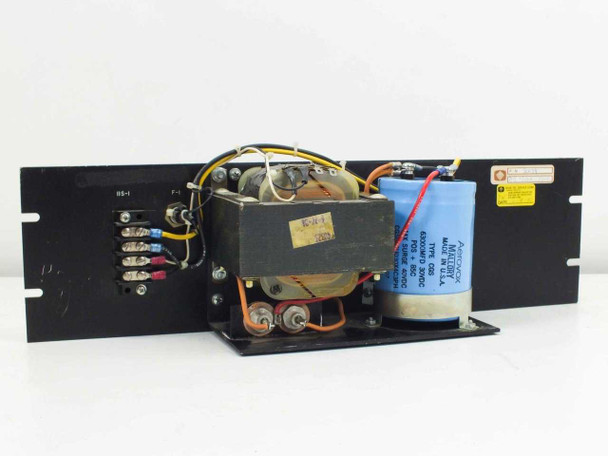

  • Rear view of 3U rackmount panel showing Mallory Aerovox CGS 63000MFD 30VDC capacitor and transformer with terminal block and wiring harness

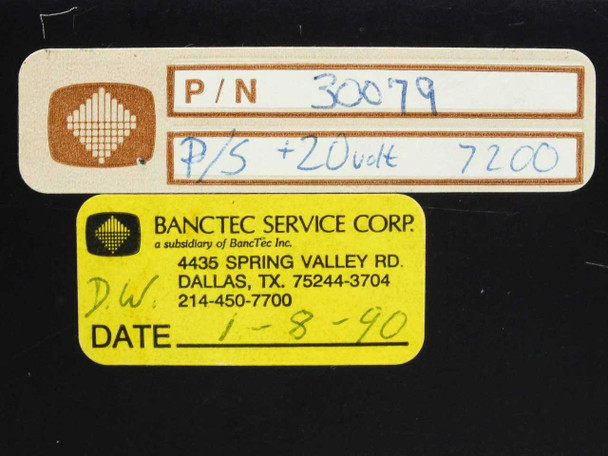

  • Close-up of panel labels showing Part Number 30079, P/S +20 Volt 7200, and BancTec Service Corp service tag dated 1-8-90

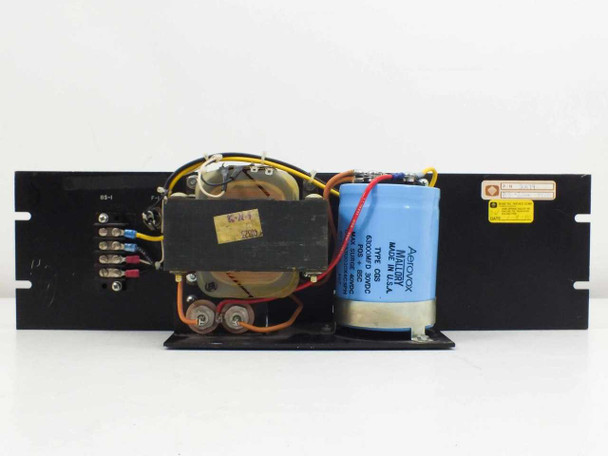

  • Alternate rear view of rackmount panel showing full assembly of transformer and Mallory CGS capacitor with red and yellow lead wires

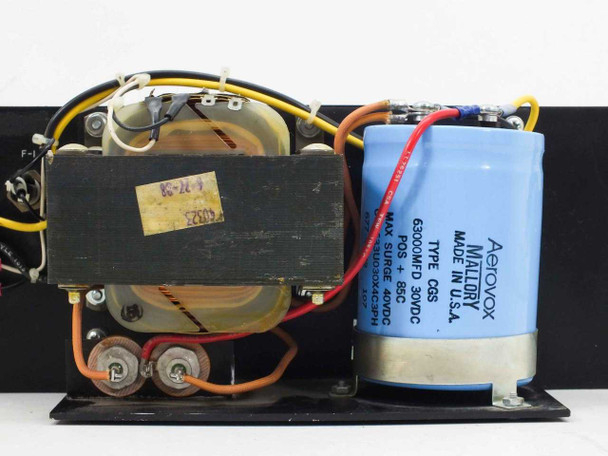

  • Close-up of Mallory Aerovox CGS capacitor label reading 63000MFD 30VDC Type CGS Made in USA and transformer with handwritten notation
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

Mallory CGS 63000MFD 30VDC Capacitor w/ Transformer 105/115/125VAC 3U Rackmount

This is a capacitor and transformer assembly mounted on a 3U rackmount panel. The unit combines a 63,000 microfarad electrolytic capacitor rated at 30VDC with a transformer that accepts 105/115/125VAC input and outputs +20VDC for power supply applications.

Specifications & What's Included

  • Capacitance: 63,000 MFD (µF)
  • Capacitor Voltage Rating: 30VDC
  • Capacitor Type: Mallory CGS Series Electrolytic
  • Transformer Primary: 105/115/125VAC
  • Output Voltage: +20VDC
  • Form Factor: 3U Rackmount Panel
  • Manufacturer: Mallory/Aerovox, Made in U.S.A.
  • Model: CGS633U030X4C3PH; Part Number: 30079
  • Wiring harness attached

Applications

This type of assembly was used in industrial power supply systems and telecommunications equipment, particularly in BancTec document processing and imaging systems from the 1990s. The large capacitance value and integrated transformer design supported DC regulation and filtering functions in rack-mounted control systems. These assemblies are commonly found in legacy telecom infrastructure and industrial control cabinets.

Condition: Used
This Mallory CGS633U030X4C3PH 63000MFD 30VDC capacitor and transformer rackmount panel assembly has been inspected and appears to be in good used condition. The black 3U panel shows scratches and scuffs across the surface consistent with normal handling and storage. The Mallory/Aerovox capacitor and transformer are intact and securely mounted, with the wiring harness attached. A BancTec Service Corp service tag dated 1-8-90 is affixed to the rear. No signs of physical damage, corrosion, or burn marks are visible on the components. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Mallory
Model:
CGS633U030X4C3PH
MPN:
CGS633U030X4C3PH
Secondary Model:
30079
Type:
Capacitor and Transformer Rackmount Assembly
SKU:
47567
Capacitance:
63000 MFD (63,000 µF)
Capacitor Voltage Rating:
30VDC
Capacitor Type:
Electrolytic, CGS Series
Capacitor Manufacturer:
Mallory / Aerovox, Made in U.S.A.
Transformer Primary Voltage:
105 / 115 / 125 VAC
Output Voltage:
+20VDC (per panel label P/S +20 Volt 7200)
Form Factor:
3U Rackmount Panel
Part Number:
30079
Seller Notes:
Capacitor and transformer mounted on 3U rack panel; wiring harness attached
Country/Region of Manufacture:
United States
Condition Notes:
Mallory CGS633U030X4C3PH 63000MFD 30VDC capacitor and transformer on 3U rack panel. Inspected, good used condition. Panel shows surface scratches. Components intact, wiring attached. BancTec service tag dated 1-8-90.
View AllClose

Related Products

Related Products

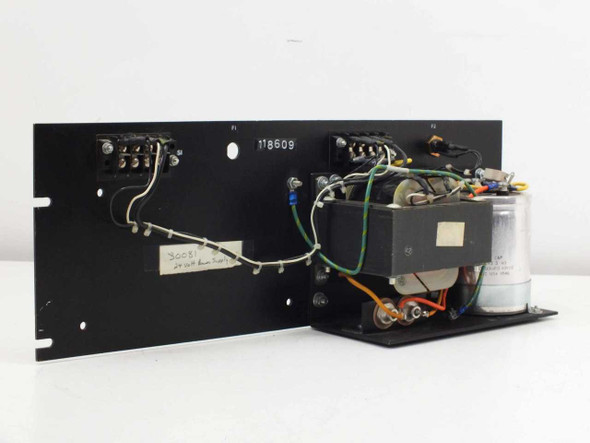

Elpac BFS 200-24 power system — rear/internal view showing transformer, large filter capacitor, and wiring on 3U black rack-mount panel Elpac BFS 200-24 3U rack-mount power system — side profile view of black panel showing SOL 24V 8A and REF 8A markings
Add to Cart
Quick view

Elpac BFS 200-24 Power System 105/115/125VAC 47-440Hz 27.3V 7.5A 3U Rackmount

Elpac

$75.00
Was: $150.00
Elpac BFS 200-24 Power System 105/115/125VAC 47-440Hz 27.3V 7.5A 3U RackmountSingle-phase DC power supply system manufactured by Elpac Power Systems. Converts AC input to 27.3V DC output at 7.5A,...
47631
SKU:
47631
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Brand:
Elpac Power Systems
Model:
BFS 200-24
MPN:
BFS 200-24
Type:
DC Power Supply System
SKU:
47631
Input Voltage:
105/115/125VAC
Input Frequency:
47-440Hz
Output Voltage:
27.3V DC
Output Current:
7.5A
Form Factor:
3U Rack Mount Panel
Transformer Part Number:
40324
Capacitor Rating:
43000 MFD, 40VDC
Phase:
Single Phase
Country/Region of Manufacture:
United States
Date of Manufacture:
8/86
Seller Notes:
3U rack-mount panel assembly with transformer (P/N 40324) and large filter capacitor.
Condition Notes:
Elpac BFS 200-24 Power System inspected and in good used condition. Panel, transformer (P/N 40324), and 43000 MFD capacitor present and intact. Normal wear for age. No obvious damage.

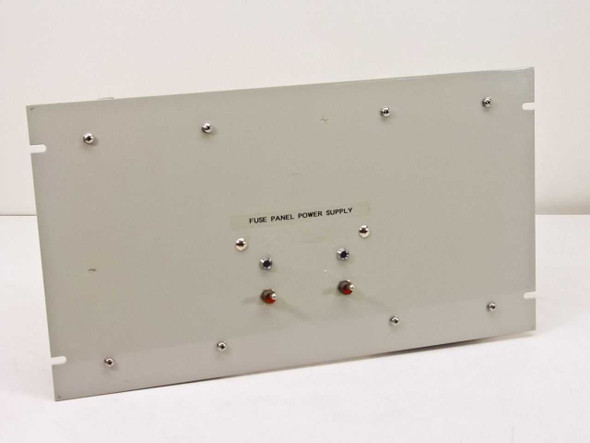

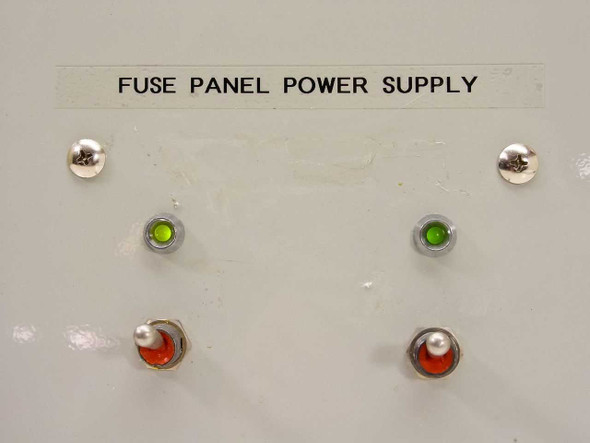

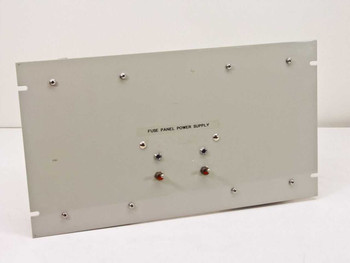

Power-One 12253 Fuse Panel Power Supply – front panel view showing label and indicator lights Power-One 12253 Fuse Panel Power Supply – close-up of front panel with green and red indicator lights and label
