Power-One F24-12-A DC Power Supply 24VDC 12A 28VDC 10A 115/230VAC For Parts

Power-One F24-12-A DC Power Supply 24VDC 12A 28VDC 10A 115/230VAC For Parts

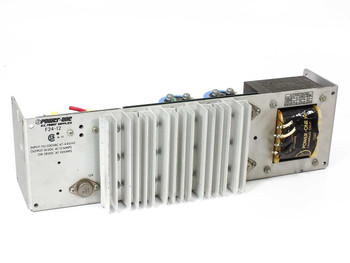

The Power-One F24-12-A is a linear DC power supply from Power-One's International Series, designed for universal AC input and selectable DC output voltage. It is a chassis-mount, open-frame unit built around a large mains transformer, Sprague Powerlytic filter capacitors, and a regulation PCB — typical of the robust linear supply architecture Power-One produced for industrial and instrumentation applications. This unit is being sold AS-IS for parts or repair and is not functional at rated specification.

Specifications & What's Included

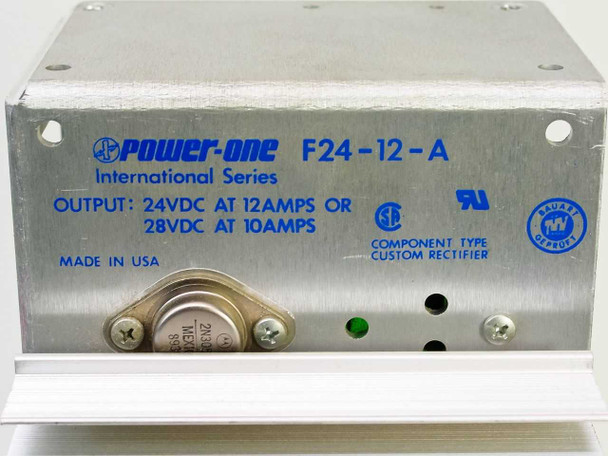

• Model: Power-One F24-12-A, International Series
• Rated Output: 24 VDC at 12 Amps OR 28 VDC at 10 Amps (jumper selectable)

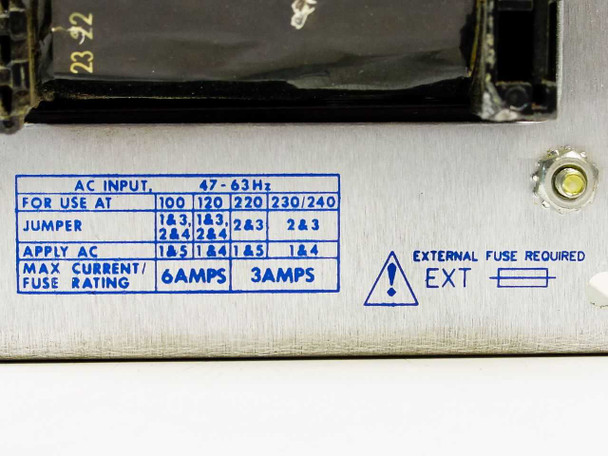

• AC Input: 100 / 120 / 220 / 230-240 VAC, jumper selectable
• Input Frequency: 47–63 Hz
• Max Fuse / Current Rating: 6 Amps (100/120V); 3 Amps (220/230-240V)
• External fuse required (not included)
• Cooling: forced-air cooling mandatory for loads exceeding 250 Watts DC — minimum 50 CFM
• Form Factor: open frame / chassis mount
• Certifications: UL listed, CSA recognized (Component Type Custom Rectifier)
• Country of Manufacture: USA

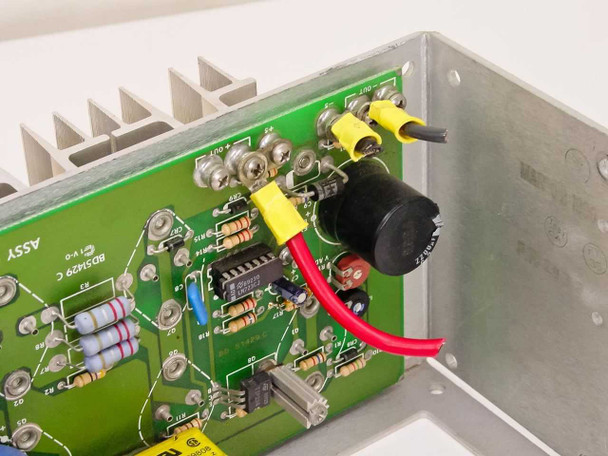

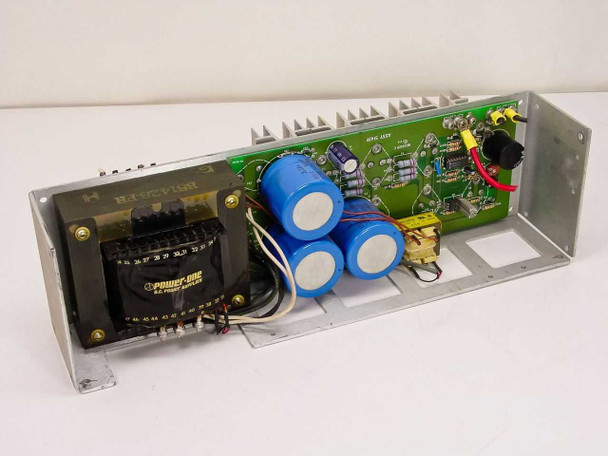

• Internal components visible: large toroidal mains transformer (Power-One branded), Sprague Powerlytic 13000 µF / 50 VDC filter capacitors, Tamura 3FS-456 transformer, regulation/control PCB (Assy BD51429 C)

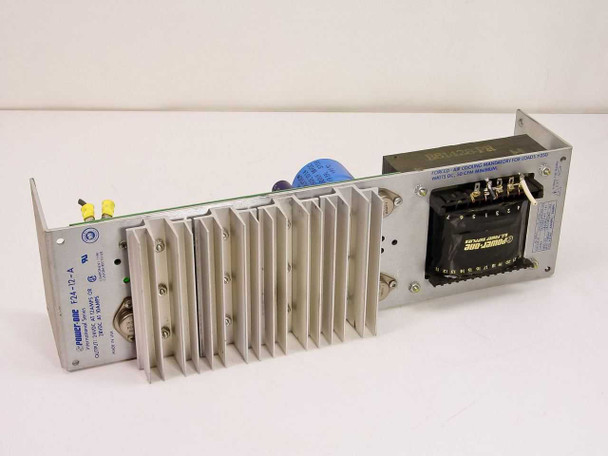

• Output connector block visible on right-side panel
• Green LED indicator present on output end panel

Applications

Power-One's International Series linear DC power supplies were widely used in industrial equipment, instrumentation, telecommunications, and OEM machinery from the 1970s through the 1990s. The F24-12-A's jumper-selectable input voltage range made it suitable for deployment in both North American (120V) and international (220–240V) environments without hardware changes. Units like this provided stable, low-noise DC rails for sensitive analog circuitry, industrial controls, and embedded systems — applications where the low ripple of a linear design was preferred over switching supplies. Power-One was a well-regarded American manufacturer of linear and switching power supplies for OEM and industrial markets, and their chassis-mount open-frame units were frequently integrated into custom equipment enclosures and rack systems. Repair technicians, hobbyists, and parts salvagers seek out these units for their high-quality transformers, large-value filter capacitors (such as the Sprague Powerlytic units visible inside), and discrete regulation circuitry, all of which retain value for repair or repurposing.
