BEI

BEI 01238/30-710460-001 C-Band Satcom Channel Changer 12 24 Ch Pittman 24VDC

(No reviews yet) Write a Review
SKU:
31535
MPN:
01238/30-710460-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout
  • BEI 01238/30-710460-001 C-Band Satcom Channel Changer – front-left view showing D-sub multi-pin connector on front face and four shaft posts on top
  • BEI C-Band Satcom Channel Changer 01238/30-710460-001 – right-side view showing overall box enclosure and latch detail

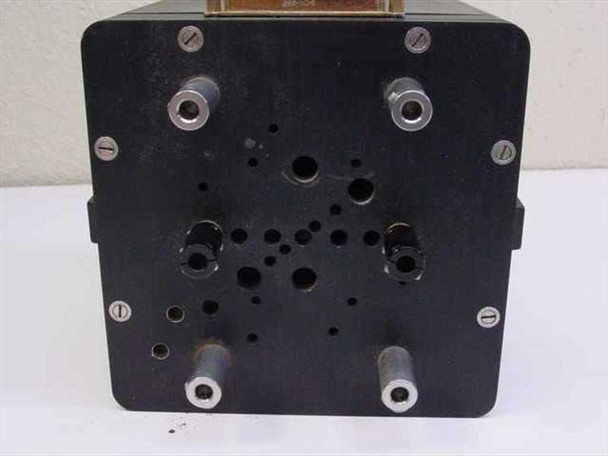

  • BEI Satcom Channel Changer – bottom or rear panel view showing multiple mounting holes and two motor shaft protrusions
  • BEI 01238/30-710460-001 – close-up of D-sub multi-pin connector (approximately 37-pin) on front face of unit

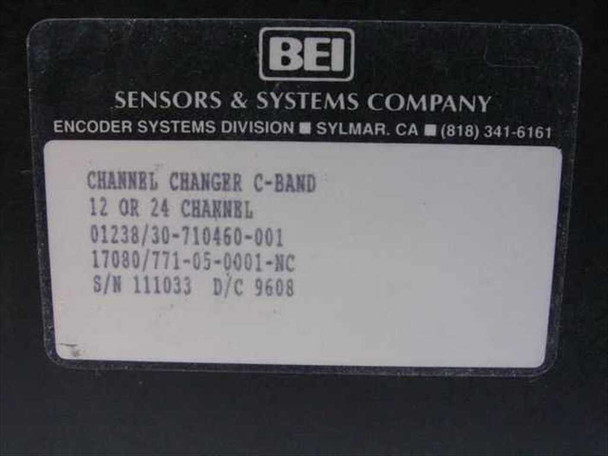

  • BEI Sensors & Systems label showing model 01238/30-710460-001, Channel Changer C-Band, 12 or 24 Channel, serial number 111033, D/C 9608
  • BEI C-Band Channel Changer with top cover removed – showing two Pittman DC gear motors, encoders, and internal wiring harness
  • Interior view of BEI 01238/30-710460-001 – two Pittman gear motors and two encoders visible with multi-color wiring
  • Pittman GM9413D780 DC gear motor label – 24 VDC, 127.7:1 ratio, dated 01-20-95
  • Pittman GM9413D779 DC gear motor label – 24 VDC, 38.3:1 ratio, dated 04-28-95
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

BEI 01238/30-710460-001 C-Band Satcom Channel Changer 12 24 Ch Pittman 24VDC

C-Band satellite communications channel selector module with dual Pittman DC gear motors and encoders. Supports 12 or 24 channel configurations and operates on 24VDC supply.

Specifications & What's Included

  • Model: 01238/30-710460-001 / 17080/771-05-0001-NC
  • Type: C-Band Satcom Channel Changer
  • Channels: 12 or 24
  • Motor 1: Pittman GM9413D780, 24VDC, 127.7:1 ratio
  • Motor 2: Pittman GM9413D779, 24VDC, 38.3:1 ratio
  • Encoders: 2 units included
  • Connector: D-Sub 37-pin multi-pin
  • Manufactured: United States, Date Code 9608

Applications

Channel changers were standard components in satellite earth stations and telecom ground systems for frequency band selection and tuning operations. This C-Band unit integrates with larger SATCOM receive and transmit systems requiring motorized channel switching. Dual motors with different gear ratios enabled precise and rapid band tuning across satellite transponder networks.

Condition: Used
This BEI 01238/30-710460-001 C-Band Satcom Channel Changer has been inspected and is in good condition. It was pulled from a working environment where it was in use and functional. The enclosure is intact with no visible cracks or damage. The D-sub multi-pin connector on the front face shows normal contact wear, and the Pittman DC gear motors and encoders are present and appear undamaged. Minor surface scuffs are visible on the exterior as typical for used satcom equipment. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
BEI Sensors & Systems
Model:
01238/30-710460-001
MPN:
01238/30-710460-001
Secondary Model:
17080/771-05-0001-NC
Type:
C-Band Satcom Channel Changer
SKU:
31535
Number of Channels:
12 or 24
Frequency Band:
C-Band
Application:
Satellite Communications (Satcom)
Motor 1:
Pittman GM9413D780, 24VDC, 127.7:1 Ratio
Motor 2:
Pittman GM9413D779, 24VDC, 38.3:1 Ratio
Motor Voltage:
24VDC
Number of Motors:
2 DC Gear Motors
Number of Encoders:
2
Date Code:
D/C 9608
Connector Type:
D-Sub (approx. 37-pin) multi-pin connector
Form Factor:
Box / Module
Seller Notes:
Includes 2 Pittman DC gear motors and 2 encoders as described. No accessories.
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Condition Notes:
BEI 01238/30-710460-001 C-Band Satcom Channel Changer. Inspected and in good condition; pulled from a working environment where it was in use and functional. Pittman motors and encoders present. Minor surface wear.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

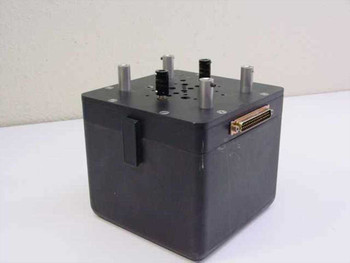

BEI 01238 Ku-Band Channel Changer front view showing top-mounted connectors and D-sub port on side BEI 01238 Ku-Band Channel Changer angled top view showing connector posts and housing with surface marks
Add to Cart
Quick view

BEI 01238 30-710460-001 Ku-Band Channel Changer 6 or 8 Ch D/C 9608 Satcom

BEI

$275.00
Was: $550.00
BEI 01238 30-710460-001 Ku-Band Channel Changer 6 or 8 Ch D/C 9608 SatcomKu-Band channel changer mechanism for satellite antenna feed switching. Features two DC gear motors with integrated encoders...
31536
SKU:
31536
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
BEI Sensors & Systems
Model:
01238
MPN:
30-710460-001
Secondary Model:
17080/771-05-0002-NC
Type:
Ku-Band Channel Changer
SKU:
31536
Frequency Band:
Ku-Band
Number of Channels:
6 or 8 Channel
Date Code:
D/C 9608
Motor 1 Model:
Pittman GM9413D779
Motor 1 Voltage:
24 VDC
Motor 1 Gear Ratio:
38.3:1
Motor 2 Model:
Pittman GM9413D780
Motor 2 Voltage:
24 VDC
Motor 2 Gear Ratio:
127.7:1
Motor Manufacturer:
Pittman (Penn Engineering & Mfg.)
Number of Encoders:
2
Number of DC Gear Motors:
2
Connector Type:
D-Sub (approx. 37-pin)
Application:
Satellite antenna feed channel switching
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Includes 2 Pittman DC gear motors and 2 encoders as installed
Condition Notes:
BEI 01238 Ku-Band Channel Changer pulled from a working satcom environment, inspected and in good condition. Both Pittman motors and encoders present. Minor surface scuffing consistent with use.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

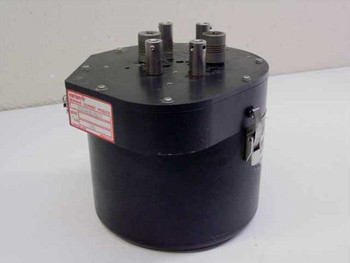

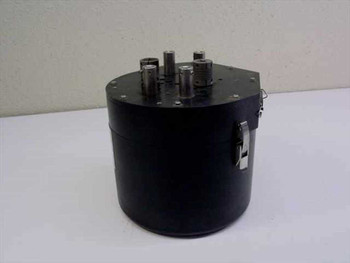

Varian VJW1454C Channel Select Sub-System – front-right three-quarter view showing black cylindrical housing with top-mounted coaxial connectors and red identification label Varian VJW1454C Channel Select Sub-System – left-side three-quarter view showing cylindrical enclosure, latch hardware, and top RF connectors
Add to Cart
Quick view

Varian VJW1454C Channel Select Sub-System 01014540-01/A Pittman DC Gear Motors

Varian

$150.00
Was: $300.00
Varian VJW1454C Channel Select Sub-System 01014540-01/A Pittman DC Gear MotorsChannel select sub-system from Varian's microwave equipment division. Controls RF channel selection in satellite and...
31542
SKU:
31542
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Brand:
Varian
Model:
VJW1454C
MPN:
01014540-01/A
Secondary Model:
01014430-01/J
Type:
Channel Select Sub-System
SKU:
31542
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes two Pittman 24VDC DC gear motors: GM9413H838 (38.3:1) and GM9413H839 (127.7:1)
Country/Region of Manufacture:
United States
Motor 1 Model:
Pittman GM9413H838
Motor 1 Part Number:
01014448 Rev. A
Motor 1 Voltage:
24 VDC
Motor 1 Gear Ratio:
38.3:1
Motor 2 Model:
Pittman GM9413H839
Motor 2 Part Number:
01014449 Rev. A
Motor 2 Voltage:
24 VDC
Motor 2 Gear Ratio:
127.7:1
Number of Motors:
2
Motor Voltage:
24 VDC
Motor Type:
DC Gear Motor
Connector Type:
D-Sub (25-pin)
RF Connector Type:
Coaxial (multiple, top-mounted)
Manufacturer Division:
Varian Microwave Equipment Products
Manufacturer Location:
Santa Clara, California
CAGE Code:
59782
Application:
Satellite / Microwave Channel Selection
Compatible With:
Varian microwave satellite communication systems
Condition Notes:
Varian VJW1454C Channel Select Sub-System in good used condition. Pulled from a working environment. Both Pittman 24VDC DC gear motors (GM9413H838 & GM9413H839) present. Normal wear. Please view photos and contact us with questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

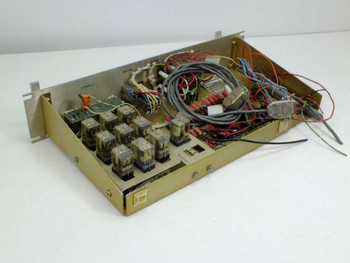

Satellite Transmission Systems C14922 HPA Switching and Monitor Assembly — front panel and open chassis showing internal relay matrix and wiring C14922 HPA Switching Monitor Assembly — bottom/rear view of open chassis showing relay array, wiring harness, and rackmount ears
Add to Cart
Quick view

Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor Assembly

Satellite Transmission Systems

$150.00
Was: $300.00
Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor AssemblyRedundancy switching and monitoring assembly for high-power amplifiers in satellite ground stations. Routes signal between...
45325
SKU:
45325
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Brand:
Satellite Transmission Systems
Model:
HPA Switching & Monitor Assembly
MPN:
C14922
Secondary Model:
C14922 Rev B
Type:
HPA Redundancy Switching & Monitor Assembly
SKU:
45325
Revision:
Rev B
Form Factor:
Rackmount
Number of HPA Channels:
2 (HPA 1 / HPA 2)
Control Mode:
Auto / Manual
Indicators:
HPA 1 Norm, HPA 1 Fail, HPA 2 Norm, HPA 2 Fail; ON LINE / OFF LINE
Relay Type:
Electromechanical relay matrix (visible internal relays)
Application:
Satellite ground station HPA redundancy switching
Country/Region of Manufacture:
United States
Manufacturer Location:
Hauppauge, New York
Condition:
Used – Inspected
Condition Notes:
Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor Assembly. Inspected and in good used condition. Front panel indicators and pilot lights intact. Internal relay matrix and wiring harness complete.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

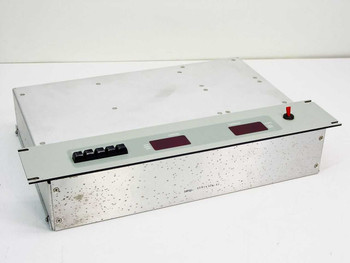

Varian VJW1454B Channel Selector Sub-System — angled top-front view showing front panel LED displays, red toggle switch, and multi-port rear connectors Varian VJW1454B Channel Selector Sub-System — angled top-rear view showing enclosure top, front panel controls, and speckled aluminum chassis
Add to Cart
Quick view

Varian VJW1454B Channel Selector Sub-System 115VAC 100VA Microwave Satcom

Varian

$125.00
Was: $250.00
Varian VJW1454B Channel Selector Sub-System 115VAC 100VA Microwave SatcomVarian rackmount channel selector and switching subsystem for satellite and microwave communications equipment. Provides local...
38671
SKU:
38671
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Brand:
Varian
Model:
VJW1454B
MPN:
VJW1454B
Secondary Model:
01014540-04
SKU:
38671
Type:
Channel Selector Sub-System
Power Requirements:
115VAC, 100VA Max
Input Voltage:
115VAC
Power Consumption:
100VA Max
AC Inlet:
IEC C14 (J1)
Rear Connectors:
J2, J3, J4, J5, J6 — multi-pin parallel connectors
Front Panel Indicators:
PWR FAIL, CABLE, CHANNEL LED displays
Front Panel Controls:
UP, DOWN, SEL, LAMP TEST, CONT MODE buttons; red toggle switch
Operating Modes:
LOC (Local), REM (Remote), AUX
Form Factor:
Rackmount / Benchtop
Manufacturer:
Varian Microwave Equipment Products
Country/Region of Manufacture:
United States
Application:
Satellite / Microwave channel selection and switching
Condition:
Used – Inspected
Seller Notes:
Unit only; no cables or accessories included.
Condition Notes:
Varian VJW1454B Channel Selector Sub-System inspected and in good used condition. Light surface marks on aluminum enclosure; front panel controls, LED displays, and rear connectors appear intact. Pulled from a working environment.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

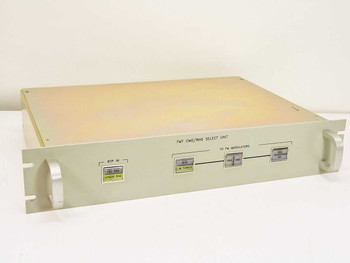

FMT CMD/RNG Select Unit front panel three-quarter view showing rackmount chassis and front-panel push-button selector switches FMT CMD/RNG Select Unit front panel close-up showing RTP IN, LM TONES, RNG/CMD, and SCG/CG labeled selector buttons
