Description
BEI 01238 30-710460-001 Ku-Band Channel Changer 6 or 8 Ch D/C 9608 Satcom
Ku-Band channel changer mechanism for satellite antenna feed switching. Features two DC gear motors with integrated encoders for multi-channel frequency band selection in satcom ground equipment.
Specifications & What's Included
- Model: BEI 01238 (MPN 30-710460-001)
- Frequency Band: Ku-Band
- Channel Capacity: 6 or 8 channels

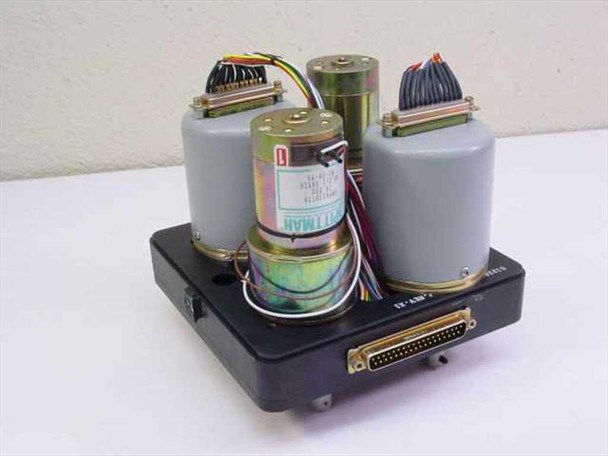

- Two Pittman GM9413D DC gear motors (24 VDC, ratios 38.3:1 and 127.7:1)
- Two integrated encoders
- D-Sub 37-pin connector interface
- Date Code: 9608
- Made in USA
Applications
Channel changers of this type were used in satellite ground stations and uplink/downlink equipment to select operational frequency bands across multiple Ku-Band channels. These mechanisms are found in SATCOM antenna control systems, broadcast uplink facilities, and telecommunications earth stations where automated or remote feed selection was required for different satellite transponders or frequency assignments.
Condition: Used

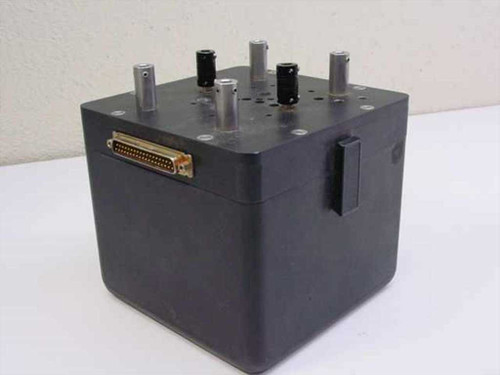

This BEI 01238 Ku-Band Channel Changer (P/N 30-710460-001) was pulled from a working satcom environment where it was in active use. It has been inspected and appears to be in good condition. The housing shows some surface scuffing and minor marks consistent with field use, visible in the photos. Both Pittman DC gear motors and the encoder assemblies are present and intact. The D-sub connector shows no obvious damage. Please view our photo set and contact us if you have any questions.
This BEI 01238 Ku-Band Channel Changer (P/N 30-710460-001) was pulled from a working satcom environment where it was in active use. It has been inspected and appears to be in good condition. The housing shows some surface scuffing and minor marks consistent with field use, visible in the photos. Both Pittman DC gear motors and the encoder assemblies are present and intact. The D-sub connector shows no obvious damage. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
BEI Sensors & Systems Company |
Model: |
01238 |
MPN: |
30-710460-001 |
Secondary Model: |
17080/771-05-0002-NC |
Type: |
Ku-Band Channel Changer |
SKU: |
31536 |
Frequency Band: |
Ku-Band |
Number of Channels: |
6 or 8 Channel |
Date Code: |
D/C 9608 |
Motor 1 Model: |
Pittman GM9413D779 |
Motor 1 Voltage: |
24 VDC |
Motor 1 Gear Ratio: |
38.3:1 |
Motor 2 Model: |
Pittman GM9413D780 |
Motor 2 Voltage: |
24 VDC |
Motor 2 Gear Ratio: |
127.7:1 |
Motor Manufacturer: |
Pittman (Penn Engineering & Mfg.) |
Number of Encoders: |
2 |
Number of DC Gear Motors: |
2 |
Connector Type: |
D-Sub (approx. 37-pin) |
Application: |
Satellite antenna feed channel switching |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes 2 Pittman DC gear motors and 2 encoders as installed |
Condition Notes: |
BEI 01238 Ku-Band Channel Changer pulled from a working satcom environment, inspected and in good condition. Both Pittman motors and encoders present. Minor surface scuffing consistent with use. |
