Ailtech Eaton 1-500783-330 CIU-7 Controlled Input Unit Instruction Manual Oct

Ailtech Eaton 1-500783-330 CIU-7 Controlled Input Unit Instruction Manual Oct 1982

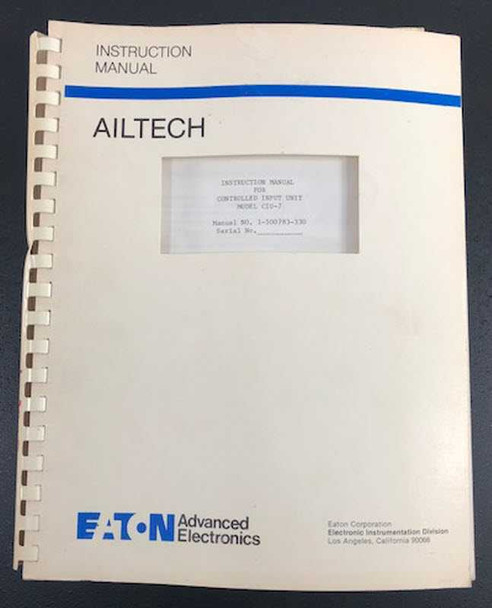

This is the original printed instruction manual for the Ailtech/Eaton Advanced Electronics CIU-7 Controlled Input Unit, manual number 1-500783-330, applicable to serial numbers 151 and above. Published in October 1982 by the Eaton Corporation Electronic Instrumentation Division, Los Angeles, California, this spiral-bound manual provides comprehensive coverage of the CIU-7 system including operation, alignment, maintenance, and schematics.

Specifications & What's Included

• Manual number: 1-500783-330
• For: Ailtech / Eaton CIU-7 Controlled Input Unit
• Serial number coverage: Serial numbers 151 and above

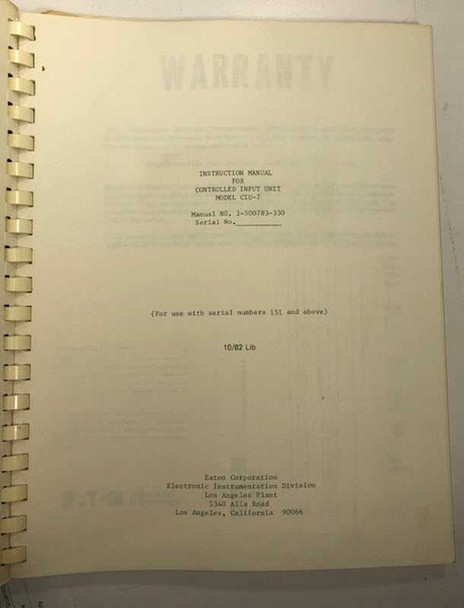

• Publication date: October 1982 (date code 10/82 Lib)
• Publisher: Eaton Corporation, Electronic Instrumentation Division, Los Angeles, CA
• Format: Spiral-bound printed manual
• Language: English

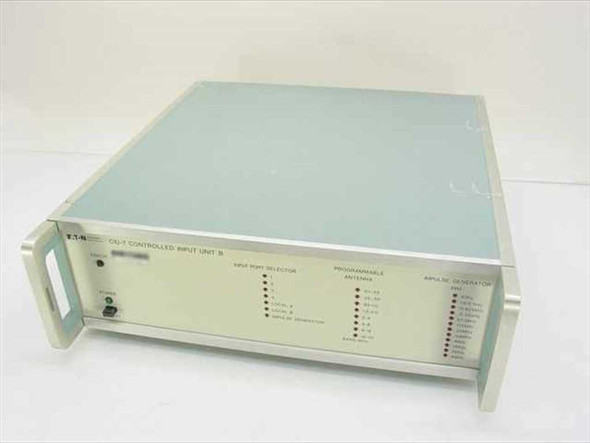

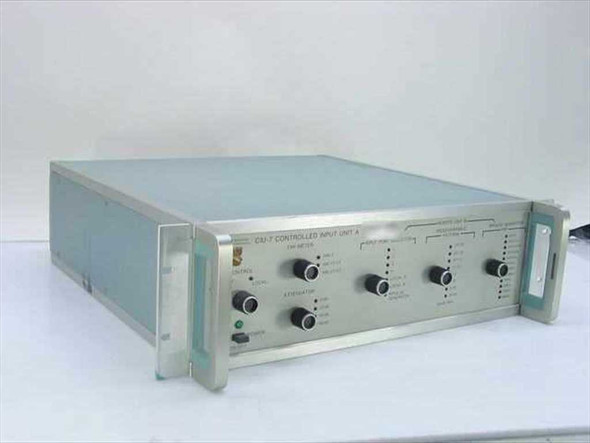

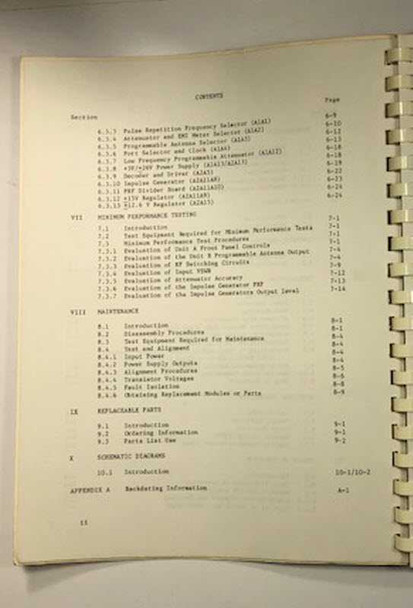

• Contents include: operating controls, switches, indicators and receptacles (Units A and B); minimum performance testing procedures; maintenance and alignment procedures; replaceable parts and parts lists; schematic diagrams for all major assemblies
• Assemblies covered include: impulse generator, attenuator and EMI meter selector, programmable antenna selector, port selector and clock, low-frequency programmable attenuator, +26V/+5V/+3V/+15V/+12.6V power supplies, decoder driver, PRF divider board, impulse generator board

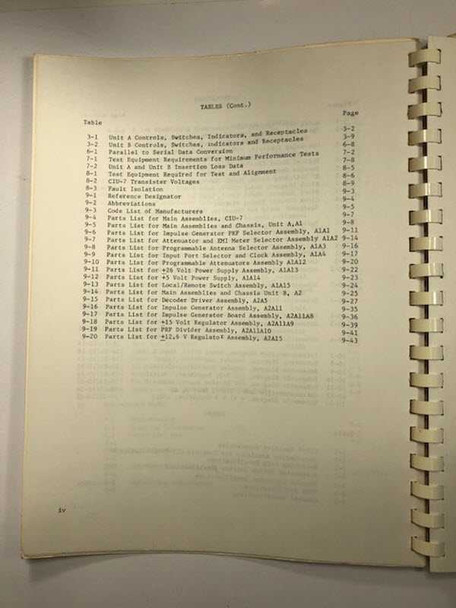

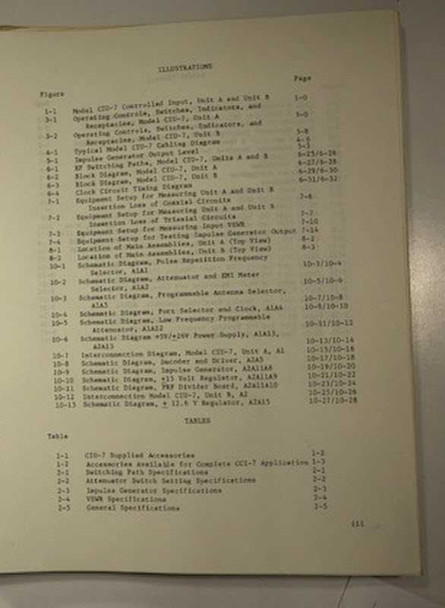

• Tables include: CIU-7 supplied accessories, switching path specifications, attenuator switch settings, impulse generator specifications, VSWR specifications, general specifications, transistor voltages, insertion loss data

Applications

The CIU-7 Controlled Input Unit is a signal-conditioning and switching instrument produced by Ailtech, the electronic instrumentation division of Eaton Corporation, during the early 1980s. Ailtech instruments of this era were used primarily in defense electronics, antenna range testing, radar cross-section measurement, and electromagnetic compatibility (EMC) test systems, where precision RF switching, programmable attenuation, and impulse generation were required. The CIU-7 was designed to interface with automated test setups, providing controlled signal paths and programmable functions across Units A and B. This manual is the primary reference for technicians operating, aligning, or servicing a CIU-7 system, and it covers fault isolation and schematic-level detail needed for board-level repair. It would be of value to anyone maintaining legacy Ailtech or Eaton ATE systems from this period, or to collectors and historians of 1980s defense-grade RF instrumentation.
