Eaton Electronics

Eaton Advanced Electronics CIU-7 Controlled Input Unit A EMI Meter HP-IB 19"

(No reviews yet) Write a Review
SKU:
25043
MPN:
CIU-7
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
29.00 LBS
Shipping:
Calculated at Checkout

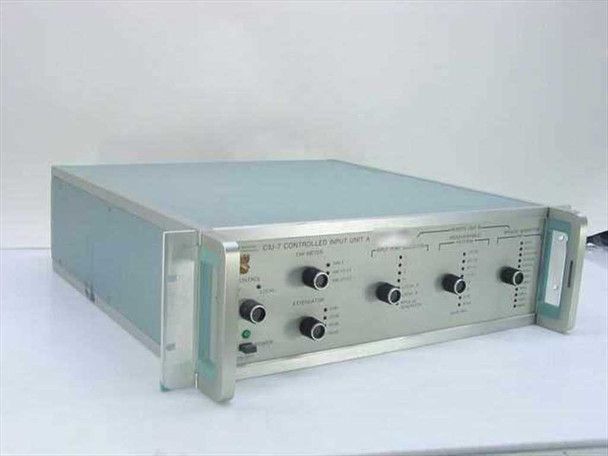

  • Eaton CIU-7 Controlled Input Unit A front panel — three-quarter view showing knobs and front panel labeling
  • Eaton CIU-7 Controlled Input Unit A rear panel — BNC connectors, circular multi-pin connector, power inlet, and Eaton branding labels

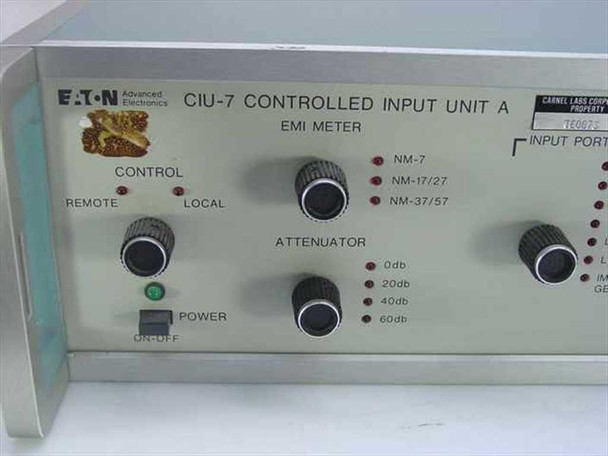

  • Eaton CIU-7 front panel close-up — EMI Meter label, Control Remote/Local switch, Attenuator selector (0/20/40/60 dB), NM-7/NM-17/27/NM-37/57 indicator lights, and Power on/off switch

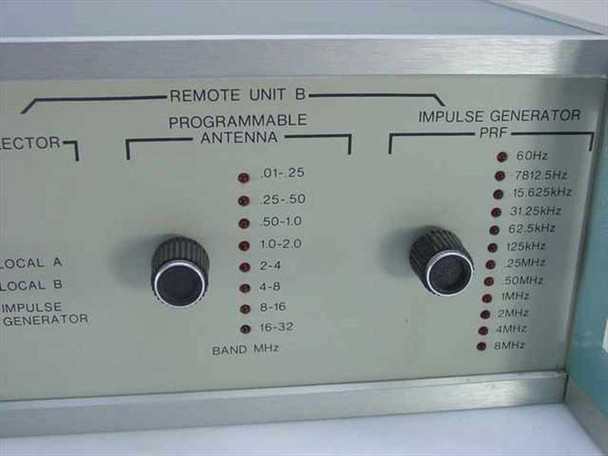

  • Eaton CIU-7 front panel right section close-up — Remote Unit B controls showing Programmable Antenna band selector (0.01–32 MHz) and Impulse Generator PRF selector (60 Hz–8 MHz)
$120.00
Was: $384.00
Current Stock: 1

Sold Out

Description

Eaton Advanced Electronics CIU-7 Controlled Input Unit A EMI Meter HP-IB 19" Rack

The CIU-7 is a controlled input unit and interface designed for EMI/EMC testing systems. This is Unit A of a two-unit configuration that works with Eaton Series 7 EMI measurement receivers and compatible meters via HP-IB (IEEE-488) control.

Specifications & What's Included

  • Model: CIU-7 (Unit A)
  • Interface: HP-IB (IEEE-488)
  • Attenuator Range: 0–60 dB in 20 dB steps
  • Antenna Frequency Range: 0.01–32 MHz (programmable)
  • Impulse Generator PRF: 60 Hz to 8 MHz
  • Control Modes: Remote and Local
  • Form Factor: 19" rack mount

Applications

The CIU-7 integrates with Eaton Series 7 receivers and EMI meters including NM-7, NM-17/27, and NM-37/57 models for automated EMI/EMC test environments. It provides programmable control over antenna frequency, attenuation levels, and impulse generation in laboratory and production testing setups. Operates in both remote and local control modes for system flexibility.

Condition: Used
This Eaton Advanced Electronics CIU-7 Controlled Input Unit A has been inspected and appears to be in good used condition. The front panel, controls, and knobs all look intact with no obvious damage. The unit shows light wear consistent with prior lab or test environment use. Please review our photos for a close look at cosmetic condition and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Eaton Advanced Electronics
Model:
CIU-7
MPN:
CIU-7
Type:
Controlled Input Unit / EMI Meter Interface
SKU:
25043
Series:
Eaton Series 7
Interface Type:
HP-IB (IEEE-488)
Compatible With 1:
Eaton Series 7 Receivers
Compatible With 2:
NM-7, NM-17/27, NM-37/57 EMI Meters
Attenuator Range:
0–60 dB in 20 dB steps
Antenna Frequency Range:
.01–32 MHz (Programmable Antenna)
Impulse Generator PRF Range:
60 Hz to 8 MHz
Control Modes:
Remote / Local
Form Factor:
19" Rack Mount
Application:
EMI / EMC Testing
Condition:
Used – Inspected
Seller Notes:
Unit A only; works with CIU-7 Unit B for full system
Condition Notes:
Eaton CIU-7 Controlled Input Unit A inspected and in good used condition. Front panel, knobs, and controls appear intact. Light wear from prior lab use. Please view photos and contact us with questions.
