Description
Eaton Electronics CIU-7 Controlled Input Unit B HP-IB Interface Series 7 Receiver
A controlled input unit designed for use with Eaton Series 7 receivers. This unit functions as an HP-IB (IEEE-488) programmable interface for remote antenna selection, input port management, and impulse generator control.
Specifications & What's Included
- Model: CIU-7 (MPN 005656-001)
- Interface: HP-IB (IEEE-488)
- Input designation: Unit B

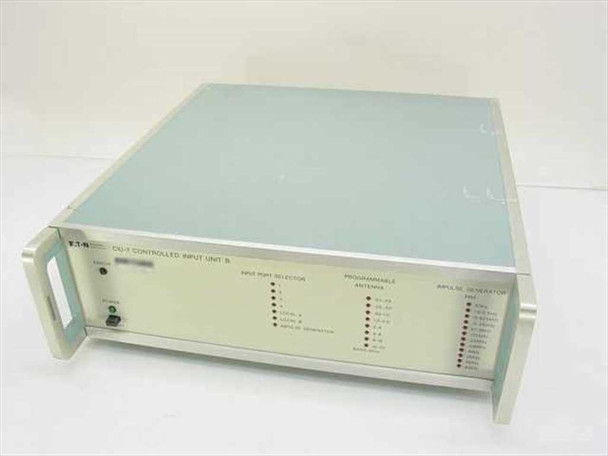

- Front panel: LED indicators for input port selection, antenna status, and impulse generator frequency

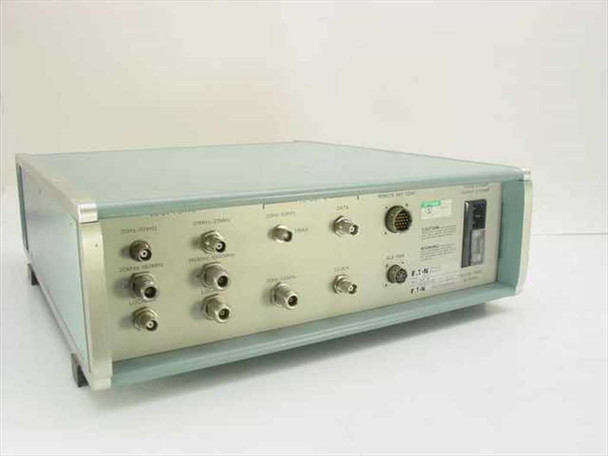

- Rear connectors: Multiple BNC input ports, Remote Ant Cont, Aux Pwr, Data
- Power: 115VAC 0.5A or 230VAC 0.25A, 50–400 Hz
- Form factor: Benchtop/rackmount
- Unit only; no accessories included
Applications
This unit type was used in RF and microwave test systems for remote control of receiver functions via HP-IB protocol. Compatible with Eaton Series 7 receiver systems in laboratory and field measurement setups. Typically operated as part of automated or semi-automated test benches requiring programmable antenna switching and input selection.
Condition: Used

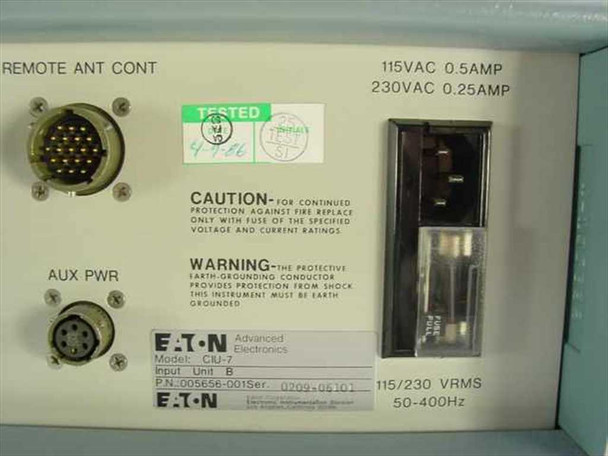

This Eaton Electronics CIU-7 Controlled Input Unit B has been inspected and is in good condition. The front panel LED indicators and labeling are intact and legible, and the unit shows normal cosmetic wear consistent with prior lab or test environment use. The rear BNC input connectors, multi-pin Remote Ant Cont port, and Aux Pwr connector all appear present and undamaged. A "TESTED" sticker is visible on the rear panel label. Please view our photo set and contact us if you have any questions.
This Eaton Electronics CIU-7 Controlled Input Unit B has been inspected and is in good condition. The front panel LED indicators and labeling are intact and legible, and the unit shows normal cosmetic wear consistent with prior lab or test environment use. The rear BNC input connectors, multi-pin Remote Ant Cont port, and Aux Pwr connector all appear present and undamaged. A "TESTED" sticker is visible on the rear panel label. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Eaton Electronics |
Model: |
CIU-7 |
MPN: |
005656-001 |
Type: |
Controlled Input Unit / HP-IB Programming Interface |
SKU: |
25042 |
Input Unit Designation: |
Unit B (Input B) |
Compatible With: |
Eaton Series 7 Receivers |
Interface Type: |
HP-IB (IEEE-488) |
Input Port Selector Indicators: |
Lighted LED readouts for multiple input ports |
Programmable Antenna Indicators: |
Lighted LED readouts — antenna selection status |
Impulse Generator Indicators: |
Lighted LED frequency readouts on front panel |
Power Requirements: |
115VAC 0.5A / 230VAC 0.25A, 50–400Hz |
Voltage Rating: |
115/230 VRMS |
Frequency Range (Power): |
50–400 Hz |
Rear Connectors: |
Multiple BNC input ports, Remote Ant Cont, Aux Pwr, Data |
Form Factor: |
Benchtop / Rackmount |
Condition: |
Used – Inspected, Good Condition |
Seller Notes: |
Unit only; no additional accessories confirmed included |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Eaton Electronics CIU-7 Controlled Input Unit B has been inspected and is in good used condition. Front panel LEDs and labeling intact. Rear connectors present and undamaged. TESTED sticker on rear label. Normal cosmetic wear. |
