Adept Technology L12120S20B0M200P000 06207 Python Linear Module 1500mm Stroke

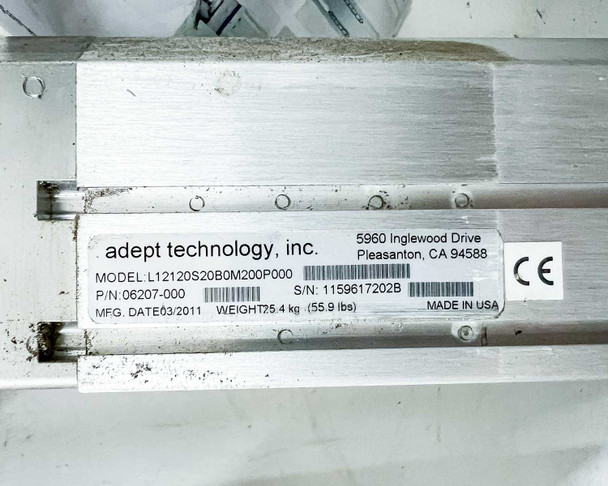

The Adept Technology L12 is a single-axis pneumatic linear module from Adept's Python Linear Module series, designed for precision linear motion in assembly and material handling automation. The module uses precision ground ball screws and high-quality linear bearings to deliver controlled, repeatable single-axis travel. Belt seals protect the internal mechanism from contamination in industrial environments. The full model number readable on the label is L12120S20B0M200P000, with part number 06207-000. Manufactured in the USA in March 2011.
Specifications & What's Included
- Brand: Adept Technology, Inc.
- Model: L12 (full model: L12120S20B0M200P000)
- Part Number: 06207-000
- Product Family: Adept Python Linear Module Series
- Stroke Length: 1500mm
- Cross-Section: 125mm x 83mm
- Payload Capacity: Max 5.0 kg / Rated 2.0 kg
- Drive Mechanism: Precision ground ball screw

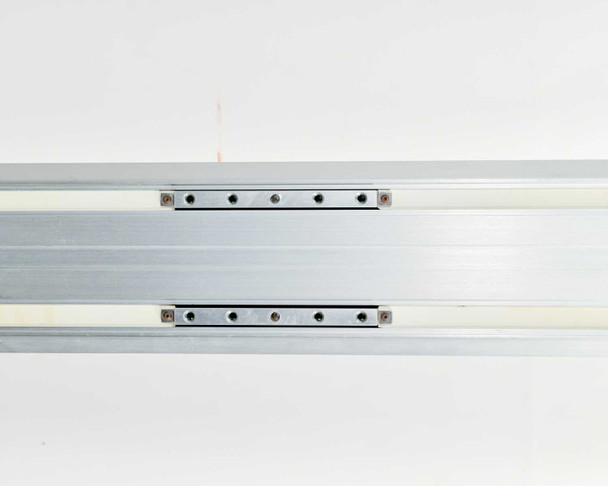

- Linear Bearings: High-quality linear guide rails (twin rail configuration)
- Belt Seals: Present and intact — designed for industrial/harsh environments

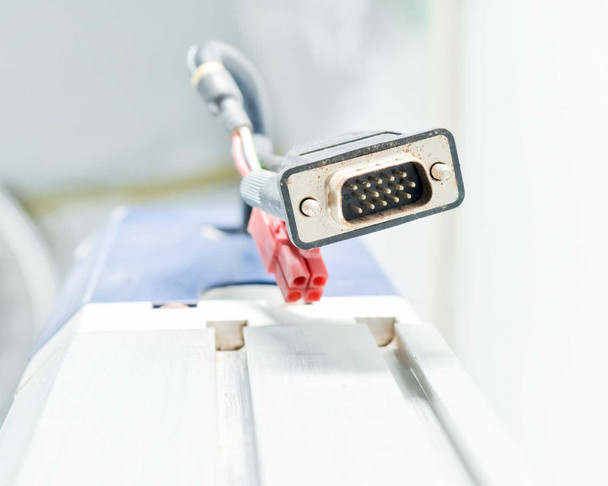

- Motor/Encoder Connector: DB15 (HD-15) cable attached
- Power Connector: Red multi-pin power connector attached
- CE Certified: Yes (CE mark visible on label)
- Country of Manufacture: United States
- Manufacture Date: March 2011
- Included: Linear module with attached motor/encoder cable (DB15) and red power connector cable
- Not Included: Controller, amplifier, or mounting hardware
Applications
The Adept Python Linear Module series was developed for use in flexible factory automation — particularly single-axis pick-and-place, assembly, and material handling cells. The L12 module functions as a standalone single-axis linear actuator or as one axis within a multi-axis Cartesian robot configuration, where multiple Python modules are combined to create XY or XYZ gantry systems. These modules are commonly found in semiconductor assembly, electronics manufacturing, and general industrial automation lines where precise, repeatable linear positioning is required. The Python series was intended to pair with Adept's motion controllers and amplifier systems, making it compatible with a range of Adept automation platforms from the 2000s and 2010s. The 1500mm stroke length makes this module suitable for longer-travel applications such as part transfer or conveyor-interface automation.

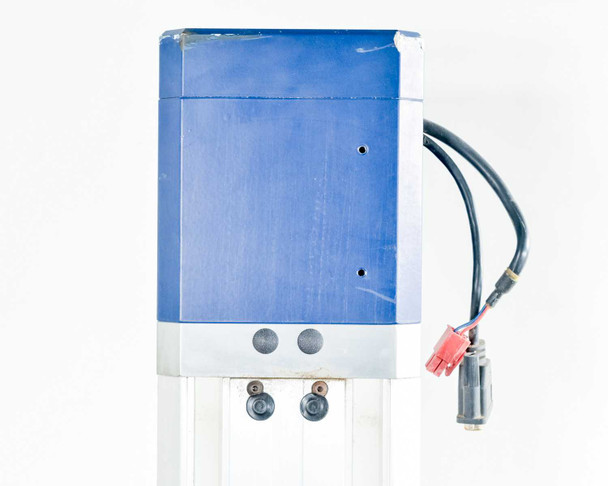

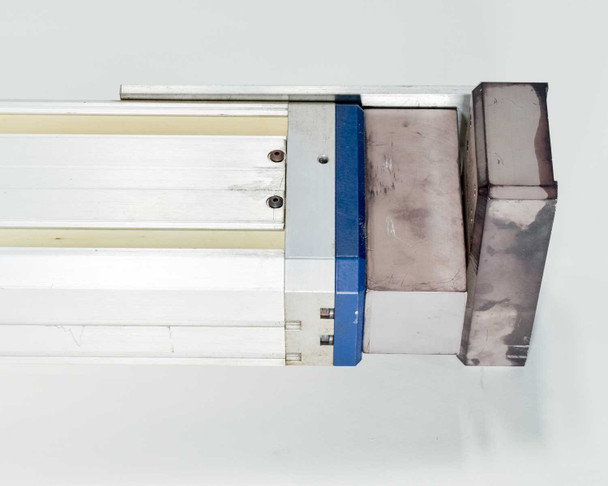

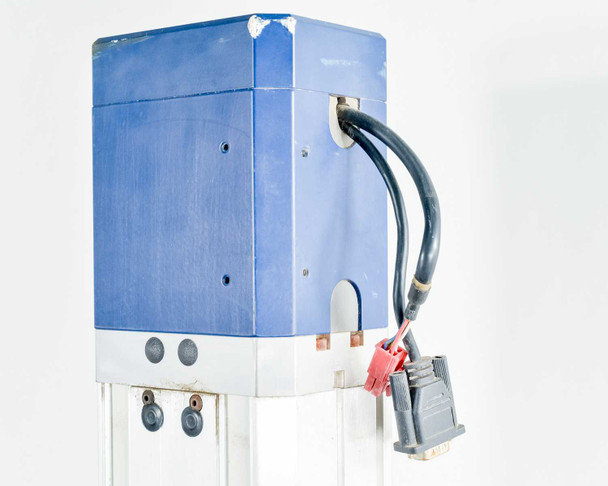

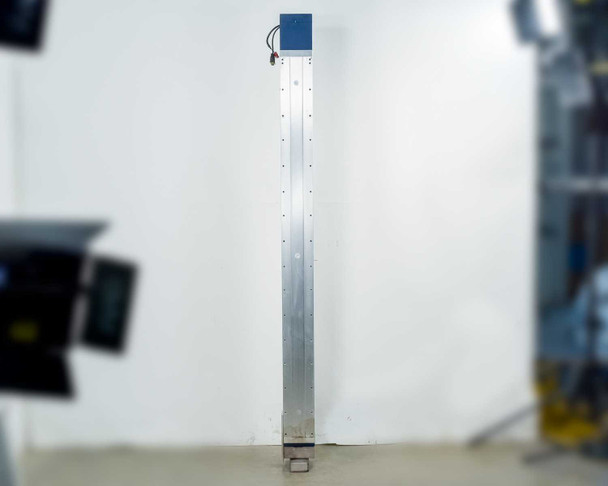

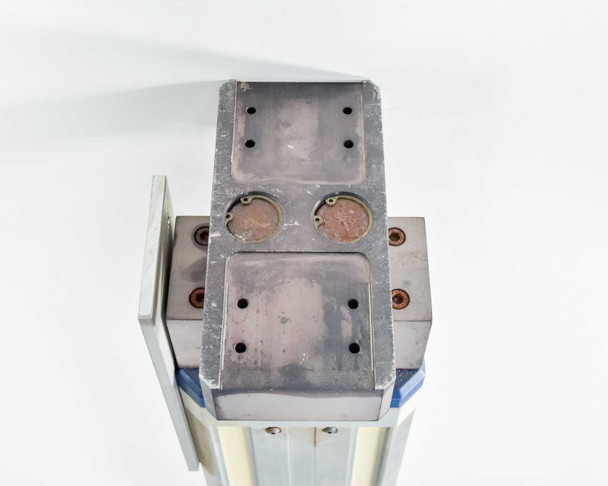

This Adept Technology L12 Python Linear Module (P/N 06207-000) has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The aluminum extrusion body shows surface grime and minor scuffing consistent with industrial use. The blue motor housing has paint chipping and surface scratches on the top cap, and the carriage end plate shows oxidation and surface marks. The twin guide rails and belt seals are intact. The attached DB15 motor/encoder cable and red power connector are present. No controller is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Adept Technology |
Model: |
L12120S20B0M200P000 |
MPN: |
06207-000 |
Secondary Model: |
L12 |
Type: |
Pneumatic Linear Module / Linear Slide |
SKU: |
52862 |
Stroke Length: |
1500mm |
Cross-Section Dimensions: |
125mm x 83mm |
Payload Capacity (Max): |
5.0 kg |
Payload Capacity (Rated): |
2.0 kg |
Connector Type: |
DB15 (HD-15) motor/encoder connector; red power connector |
Country/Region of Manufacture: |
United States |
Manufacture Date: |
03/2011 |
Product Family: |
Adept Python Linear Module Series |
Application: |
Assembly automation, material handling, single-axis motion |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached motor/encoder cable with DB15 connector and red power connector. No controller included. |
CE Certified: |
Yes |
Condition Notes: |
Adept Technology L12 Python Linear Module 06207-000 pulled from a working environment. Inspected and in good used condition. Aluminum body shows grime and minor scuffing; motor housing has paint chips. DB15 and red power cables attached. |
