Adept Technology 06207-000 Python L12 Pneumatic Linear Module 1500mm 125x83mm

Adept Technology 06207-000 Python L12 Pneumatic Linear Module 1500mm 125x83mm

The Adept Technology 06207-000 is a Python L12 series pneumatic linear slider module designed for single-axis automation mechanisms. Built on a rigid aluminum extrusion frame measuring 125mm x 83mm in cross-section, this module provides a 1500mm pneumatic stroke and is equipped with an integrated SMC solenoid valve manifold (SS5V2-10FD2-04B-N7) for pneumatic control. Manufactured in the United States in November 2010, it is part of Adept Technology's Python L-series linear module family, which was engineered for use with Adept robotic systems and single-axis pick-and-place or transport applications.

Specifications & What's Included

• Manufacturer: Adept Technology, Inc.
• Part Number: 06207-000
• Full Model Number: L12120S20B0M200P000
• Product Family: Python L12 Series
• Actuator Type: Pneumatic slider
• Cross-Section: 125mm x 83mm
• Stroke Length: 1500mm
• Max Payload: 5.0 kg; Rated Payload: 2.0 kg
• Max Load Inertia: 350 kg-cm²; Rated Load Inertia: 150 kg-cm²
• Max Speed: 1000 deg/sec; Rated Speed: 400 deg/sec
• Max Torque: 9.0 Nm; Rated Torque: 4.0 Nm

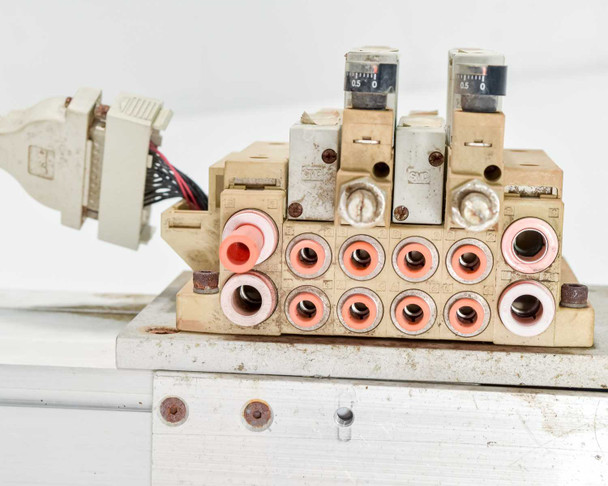

• Integrated SMC Solenoid Valve Manifold: SS5V2-10FD2-04B-N7 (assembled in USA of Japanese SMC parts)

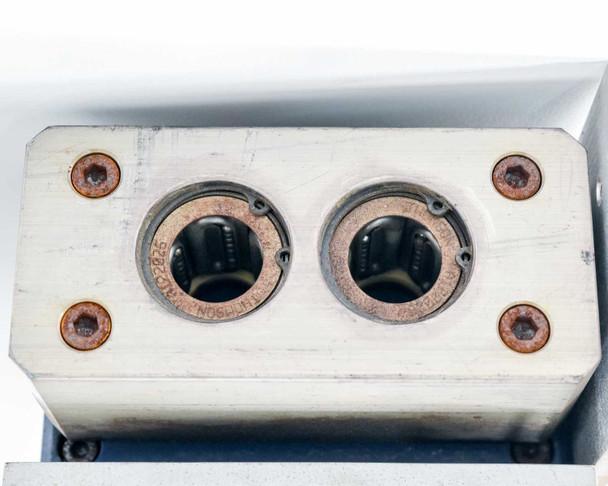

• Linear bearings: dual-rod style, visible at end blocks
• Belt seals for environmental protection

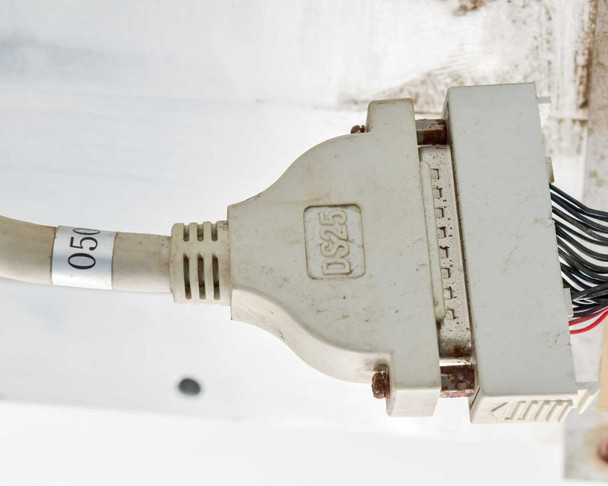

• Connectors: DB25, DB9 (serial), 4-pin power connector (red)
• Manufacture Date: November 2010
• Country of Manufacture: USA
• Includes: integrated SMC valve manifold, DB25 cable, DB9 cable, and power cable with red connector

Applications

The Adept Python L12 is a pneumatic linear module from Adept Technology's family of modular single-axis motion components, designed to integrate with Adept robotic controllers and multi-axis automation systems. These modules are used in industrial pick-and-place systems, part transfer mechanisms, assembly automation, and semiconductor handling applications where a long-stroke pneumatic linear axis is needed. The Python L-series was a common building block in Adept's SCARA and Cartesian robot configurations from the 1990s through the 2010s, allowing system integrators to build custom multi-axis gantries using a standardized modular format. The pneumatic actuation design — paired with an integrated SMC solenoid valve manifold — means end-to-end pneumatic control is handled at the module level, simplifying integration into factory automation cells. These modules are still sought after for legacy Adept system maintenance, spare parts inventory, and integration into new custom automation setups where long-stroke pneumatic linear motion is required.
