Adept
-
Adept Technology L12120S20B0M200P000 06207 Python Linear Module 1500mm Stroke
Adept
$1,600.00Was: $3,200.00Adept Technology L12120S20B0M200P000 06207 Python Linear Module 1500mm StrokeThe Adept Technology L12 is a single-axis pneumatic linear module from Adept's Python Linear Module series, designed for...52862- SKU:
- 52862
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 150.00 LBS
- Brand:
- Adept Technology
- Model:
- L12120S20B0M200P000
- MPN:
- 06207-000
- Secondary Model:
- L12
- Type:
- Pneumatic Linear Module / Linear Slide
- SKU:
- 52862
- Stroke Length:
- 1500mm
- Cross-Section Dimensions:
- 125mm x 83mm
- Payload Capacity (Max):
- 5.0 kg
- Payload Capacity (Rated):
- 2.0 kg
- Connector Type:
- DB15 (HD-15) motor/encoder connector; red power connector
- Country/Region of Manufacture:
- United States
- Manufacture Date:
- 03/2011
- Product Family:
- Adept Python Linear Module Series
- Application:
- Assembly automation, material handling, single-axis motion
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes attached motor/encoder cable with DB15 connector and red power connector. No controller included.
- CE Certified:
- Yes
- Condition Notes:

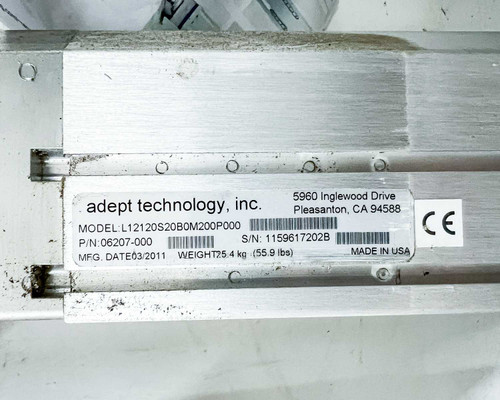

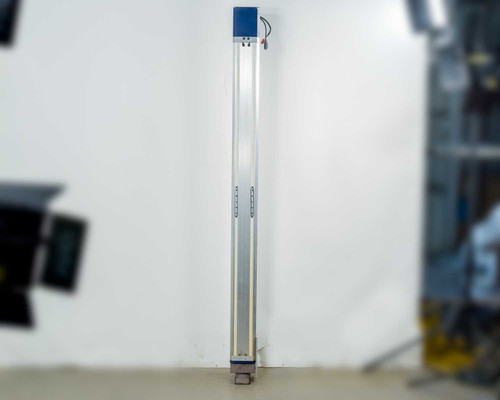

- Adept Technology L12 Python Linear Module 06207-000 pulled from a working environment. Inspected and in good used condition. Aluminum body shows grime and minor scuffing; motor housing has paint chips. DB15 and red power cables attached.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,600.00Was: $3,200.00 -
Adept Technology 06207-000 Python L12 Pneumatic Linear Module 1500mm 125x83mm
Adept
$1,800.00Was: $3,600.00Adept Technology 06207-000 Python L12 Pneumatic Linear Module 1500mm 125x83mmThe Adept Technology 06207-000 is a Python L12 series pneumatic linear slider module designed for single-axis automation...52861- SKU:
- 52861
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 105.00 LBS
- Brand:
- Adept Technology
- Model:
- 06207-000
- Secondary Model:
- L12120S20B0M200P000
- MPN:
- 06207-000
- Product Family:
- Python L12 Series
- Type:
- Pneumatic Linear Module / Linear Slider
- SKU:
- 52861
- Stroke Length:
- 1500mm
- Cross-Section Dimensions:
- 125mm x 83mm
- Actuator Type:
- Pneumatic
- Max Payload:
- 5.0 kg
- Rated Payload:
- 2.0 kg
- Max Load Inertia:
- 350 kg-cm²
- Rated Load Inertia:
- 150 kg-cm²
- Max Speed:
- 1000 deg/sec
- Rated Speed:
- 400 deg/sec
- Max Torque:
- 9.0 Nm
- Rated Torque:
- 4.0 Nm
- Valve Manifold:
- SMC SS5V2-10FD2-04B-N7
- Connector Type:
- DB25, DB9, 4-pin power connector
- Manufacture Date:
- November 2010
- Country/Region of Manufacture:
- United States
- Application:
- Single-axis industrial automation, robotics
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes SMC valve manifold, DB25 cable, DB9 cable, and power cable
- Condition Notes:
- Adept Technology 06207-000 Python L12 Pneumatic Linear Module, pulled from a working environment where it was in active use and functional. Shows surface oxidation, bearing rust spots, and paint wear on end caps.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,800.00Was: $3,600.00
