Hiwin KK60 Linear Ball Screw Stage 60mm 300mm Travel 1100mm/s No Cover

(No reviews yet) Write a Review
SKU:
53288
MPN:
KK60
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
11.00 LBS
Shipping:
Calculated at Checkout

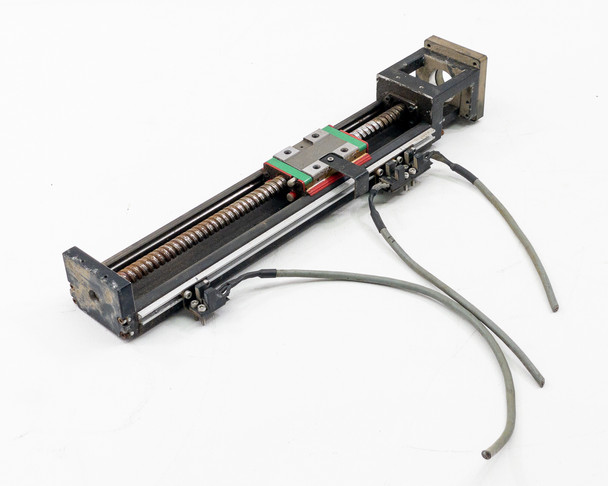

  • Hiwin KK60 linear ball screw stage full assembly angled view showing rail, carriage, and attached cables
  • Hiwin KK60 linear stage close-up of ball screw, green-and-red linear guideway carriage, and limit switch wiring
  • Hiwin KK60 model label embossed on motor mount block end of linear stage
  • Hiwin KK60 linear stage mid-section showing ball screw with surface rust and limit switch sensor assembly

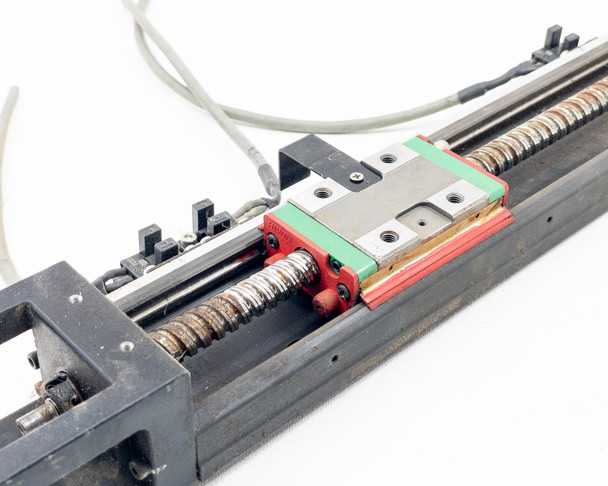

  • Hiwin KK60 ball screw carriage block close-up showing green and red guideway rail with mounting screws
  • Hiwin KK60 motor mount end plate close-up showing central bearing bore and six bolt holes
  • Hiwin KK60 motor mount block side angle showing surface wear, grime buildup, and bearing housing
  • Hiwin KK60 opposite end view showing ball screw exposed end, end plate, and limit switch connector
  • Hiwin KK60 ball screw close-up showing surface oxidation and rust along thread length
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Hiwin KK60 Linear Ball Screw Stage 60mm 300mm Travel 1100mm/s No Cover

A linear motion stage with 300mm travel stroke driven by ball screw mechanism. Designed for automated positioning and repetitive linear motion in industrial applications.

Specifications & What's Included

  • Brand: Hiwin | Model: KK60
  • Stage Width: 60mm | Travel Stroke: 300mm
  • Max Speed: 1100 mm/s
  • Drive Type: Ball Screw | Guideway: Linear Ball Guideway
  • Cables attached | No cover included

Applications

Linear stages of this type are used in CNC machining centers, automated assembly lines, pick-and-place systems, and semiconductor manufacturing equipment. The KK60 is compatible with industrial automation platforms and robotics systems requiring controlled linear positioning. Typical applications include material handling, component placement, and precision motion control in manufacturing environments.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
Hiwin KK60 Linear Ball Screw Stage (60mm, 300mm Travel, 1100mm/s) in used condition. This industrial-grade linear actuator shows cosmetic wear consistent with prior use: the ball screw exhibits surface rust and oxidation along its length, the end blocks and frame display grime buildup and surface wear, and the guideway carriage shows scuffing on the rail surfaces. The motor mount end block retains its embossed model designation and central bearing bore. Limit switch wiring and sensors are present and functional. No cover included. Mechanically sound and ready for application or refurbishment.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hiwin
Model:
KK60
MPN:
KK60
SKU:
53288
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold AS-IS. No cover included. Cables attached. Not tested.
Form Factor:
Linear Stage / Actuator Module
Stage Width:
60mm
Travel Stroke:
300mm
Max Speed:
1100 mm/s
Drive Type:
Ball Screw
Guideway Type:
Linear Ball Guideway
Cover:
No Cover
Compatible With:
CNC machines, automation systems, pick-and-place
Application:
Linear motion, automation, robotics, semiconductor
Country of Manufacture:
Taiwan
Condition Notes:
Used Hiwin KK60 Linear Ball Screw Stage. Surface rust, cosmetic wear from industrial use. Limit switch wiring and sensors present. Functional, no cover. Sold as-is.
