Description
Linear Stage Optical Mount Threaded Tube 14.7mm Travel Drag Screw Aluminum Lab
Unbranded linear translation stage with removable threaded optical tube for benchtop mounting. Provides 14.7mm of precise linear travel via stainless steel adjustment screw with extra-fine threading.
Specifications & What's Included
- Travel Range: 14.7mm (~5/8 in)
- Body Material: Aluminum
- Adjustment Screw: Stainless steel, extra-fine thread
- Collar: Brass
- Removable threaded optical tube
- Travel stop and drag screw included
- Dimensions: 2-3/8 in D x 2.5 in W x 1.25 in H
Applications
Linear stages of this type are used in optical labs, photonics, and laser alignment setups for fine positioning of optical components, beam steering, and sample manipulation. The removable tube accepts standard threaded optics and mounts to breadboard or benchtop systems. Common in research and industrial laser applications requiring repeatable micrometer-level adjustments.
Condition: Used

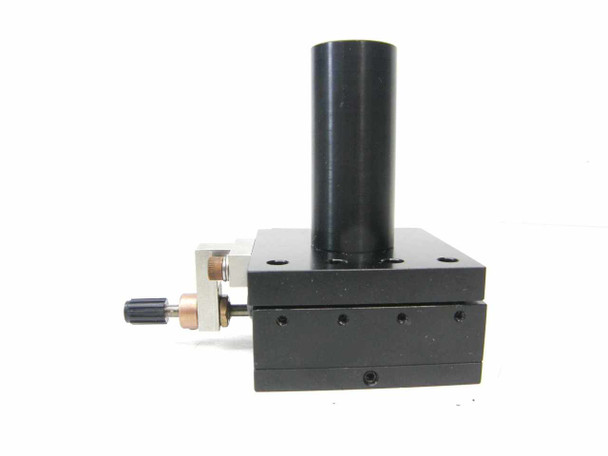

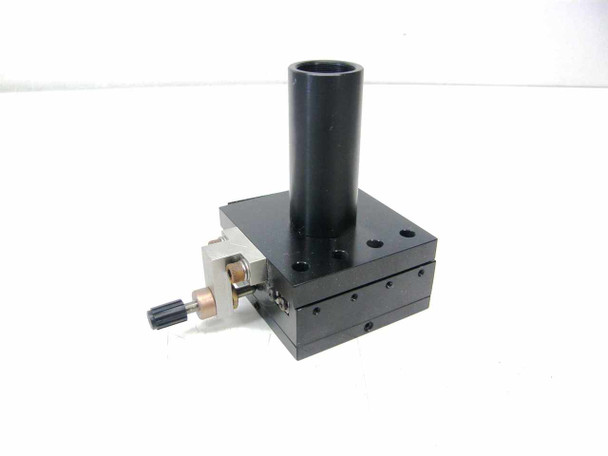

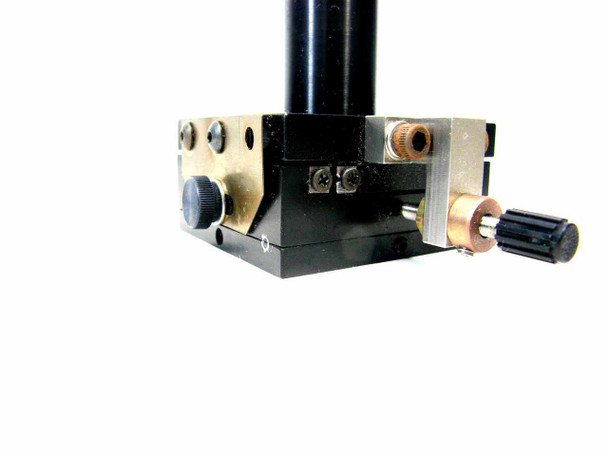

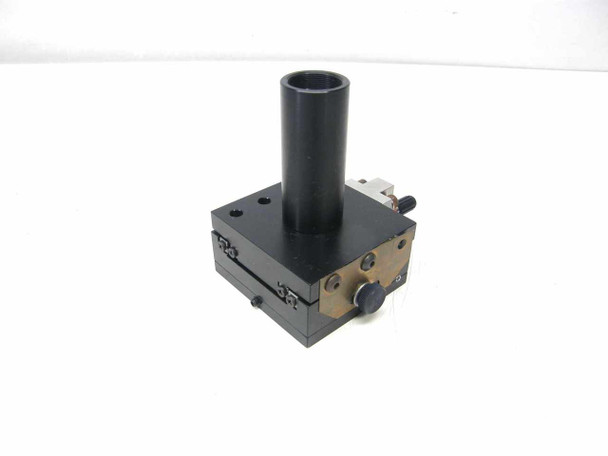

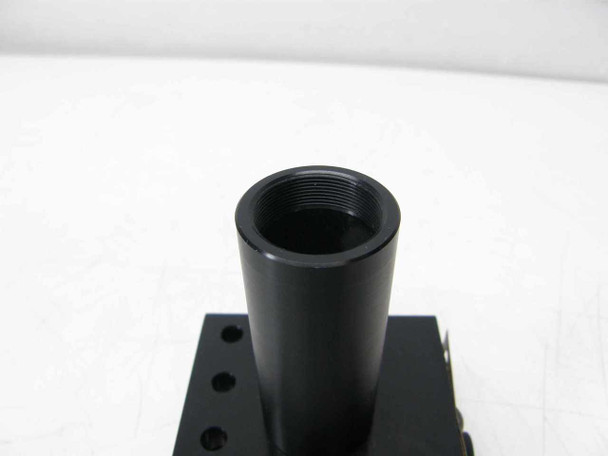

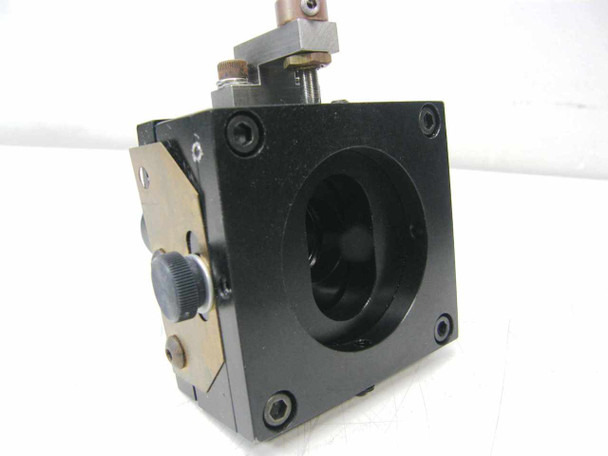

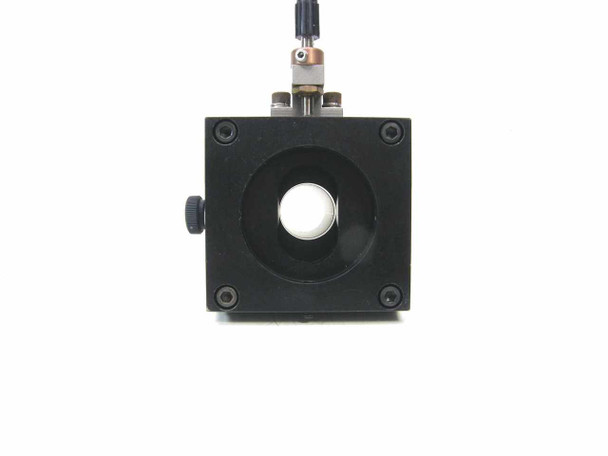

This linear stage optical mount with threaded tube has been inspected and is in good used condition. The black anodized aluminum body shows minor surface wear consistent with lab use. The stainless steel fine-thread adjustment screw, brass collar, drag screw, and travel stop all appear intact and undamaged. The removable threaded optical tube is present and the internal threading is clean and legible, as shown in the photos. No manufacturer markings are visible on the unit. Please view our photo set and contact us if you have any questions.
This linear stage optical mount with threaded tube has been inspected and is in good used condition. The black anodized aluminum body shows minor surface wear consistent with lab use. The stainless steel fine-thread adjustment screw, brass collar, drag screw, and travel stop all appear intact and undamaged. The removable threaded optical tube is present and the internal threading is clean and legible, as shown in the photos. No manufacturer markings are visible on the unit. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
Linear Stage Optical Mount w/ Threaded Tube |
Type: |
Linear Translation Stage / Optical Mount |
Travel Range: |
14.7mm (~5/8 in) |
Body Material: |
Aluminum |
Adjustment Screw Material: |
Stainless Steel – Extra Fine Thread |
Collar Material: |
Brass |
Tube Feature: |
Removable Threaded Optical Tube |
Travel Stop: |
Yes – travel stop included |
Drag Screw: |
Yes – drag screw included |
Approximate Dimensions: |
2-3/8 in D x 2.5 in W x 1.25 in H (body) |
Application: |
Optical lab, photonics, laser alignment, beam steering |
Form Factor: |
Benchtop / Breadboard Mount |
SKU: |
36345 |
Condition: |
Used – Inspected |
Seller Notes: |
Includes removable threaded optical tube. No manufacturer markings visible. |
Condition Notes: |
Linear stage optical mount inspected and in good used condition. Aluminum body shows minor wear. Adjustment screw, brass collar, drag screw, and threaded tube all present and intact. No manufacturer markings visible. |
