Yuken

Yuken DSG-01-3C40-D24 Solenoid Directional Valve 26.4 GPM 5080 PSI D03

(No reviews yet) Write a Review
SKU:
52408
MPN:
DSG-01-3C40-D24
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout
  • Yuken DSG-01-3C40-D24 solenoid directional valve — front-left 3/4 view showing solenoid housing, blue nameplate, lead wire, and valve body with APC subplate markings
  • Yuken DSG-01-3C40-D24 directional valve — right-side 3/4 view showing heavy surface wear, chipped paint, solenoid assembly, and manual override pin
  • Yuken DSG-01-3C40-D24 directional valve — straight front face view showing APC subplate and port face with 0853 date code stamp
  • Yuken DSG-01-3C40-D24 directional valve — rear 3/4 view showing opposite solenoid end, valve body, and subplate interface
  • Yuken DSG-01-3C40-D24 directional valve — close-up of blue nameplate label reading DSG-01-3C40-D24-50398, Yuken Kogyo Co. Ltd., Japan, SOL a and SOL b markings
  • Yuken DSG-01-3C40-D24 directional valve — subplate bottom port face view showing D03/NG6 five-port pattern (P, A, B, T, T) bolt holes
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Yuken DSG-01-3C40-D24 Solenoid Directional Valve 26.4 GPM 5080 PSI D03

4/3-way solenoid-operated directional control valve with spring-centered spool. Routes and controls flow direction in hydraulic systems through dual 24VDC solenoid actuation.

Specifications & What's Included

  • Model: DSG-01-3C40-D24 | Series: D03 (NG6)
  • Flow: 26.4 GPM (100 L/min) | Pressure: 5080 PSI (350 bar) | T-line back pressure: 3050 PSI (210 bar)
  • Dual solenoid, 24VDC | 3C40 spring-centered spool | Subplate mount configuration
  • Includes valve body with subplate face
  • Manufactured in Japan

Applications

Used in industrial hydraulic systems for flow direction control. Common in injection molding equipment, including CD injection machines where this unit was sourced. Mounts to D03/NG6 subplate manifolds on hydraulic power units. Handles moderate to high-pressure operations in manufacturing and processing equipment.

Condition: Used
This Yuken DSG-01-3C40-D24 solenoid operated directional valve has been inspected and appears to be in good used condition. It was pulled from a CD injection molding machine where it was previously in service. The photos show moderate surface wear and paint chipping on the valve body — typical of industrial hydraulic service — but no visible damage to the solenoid assembly, port faces, or subplate mounting surface. The blue Yuken nameplate is intact and clearly legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Yuken
Model:
DSG-01-3C40-D24
MPN:
DSG-01-3C40-D24-50398
Type:
Solenoid Operated Directional Control Valve
SKU:
52408
Valve Configuration:
4/3-Way, Spring-Centered, 3C40 Spool
Valve Size / Series:
D03 / NG6
Actuation:
Solenoid (Dual) — 24VDC
Maximum Flow Rate:
26.4 GPM (100 L/min)
Maximum Operating Pressure:
5080 PSI (350 bar)
Max T-Line Back Pressure:
3050 PSI (210 bar)
Coil Voltage:
24VDC (D24)
Mounting Type:
Subplate Mount (D03 / NG6 pattern)
Spool Type:
3C40
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes valve body with subplate face; pulled from CD injection molding machine
Country/Region of Manufacture:
Japan
Compatible With:
D03 / NG6 subplate manifolds, hydraulic power units
Application:
Injection Molding, Industrial Hydraulic Systems
Condition Notes:
Yuken DSG-01-3C40-D24 solenoid directional valve inspected and in good used condition. Pulled from a CD injection molding machine. Shows surface wear and paint chipping on body; solenoid and port faces appear intact.
View AllClose

Related Products

Related Products

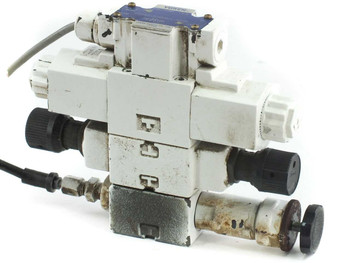

Yuken DSG-01-3C40-D24-50398 solenoid directional valve assembled with MSW-01-X-50 and MRP-01-C-3004 modular valves – front three-quarter view showing full stack Yuken DSG-01-3C40-D24-50398 directional valve stack – rear/side view showing surface wear and hydraulic port faces
Add to Cart
Quick view

Yuken DSG-01-3C40-D24-50398 Solenoid Directional Valve MSW-01-X-50 MRP-01-C-3004

Yuken

$175.00
Was: $350.00
Yuken DSG-01-3C40-D24-50398 Solenoid Directional Valve MSW-01-X-50 MRP-01-C-3004A 24V DC solenoid-operated directional control valve from Yuken Kogyo. This NG6/CETOP 3 valve manages hydraulic flow...
52439
SKU:
52439
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Brand:
Yuken
Model:
DSG-01-3C40-D24-50398
MPN:
DSG-01-3C40-D24-50398
Secondary Model:
MSW-01-X-50 / MRP-01-C-3004
SKU:
52439
Type:
Solenoid Operated Directional Control Valve
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes MSW-01-X-50 throttle & check modular valve and MRP-01-C-3004 reducing modular valve
Country/Region of Manufacture:
Japan
Valve Configuration:
3C40 (4-way, spring-centered, tandem center)
Solenoid Voltage:
24V DC (D24)
Max Operating Pressure:
5080 PSI
Max Flow Rate:
26.4 GPM
Max T-Line Back Pressure:
3050 PSI
Valve Size:
01 (NG6 / CETOP 3)
Number of Solenoids:
2 (SOL a, SOL b)
Compatible With:
Sumitomo injection molding machines; NG6/CETOP 3 hydraulic systems
Included Component 1:
Yuken MSW-01-X-50 Throttle and Check Modular Valve
Included Component 2:
Yuken MRP-01-C-3004 Reducing Modular Valve
Manufacturer Full Name:
Yuken Kogyo Co., Ltd.
Date Code:
9908
Condition Notes:
Yuken DSG-01-3C40-D24-50398 directional valve set pulled from a working Sumitomo injection molder in the Bay Area. Inspected, in good used condition with normal industrial wear. Includes MSW-01-X-50 and MRP-01-C-3004 modular valves.

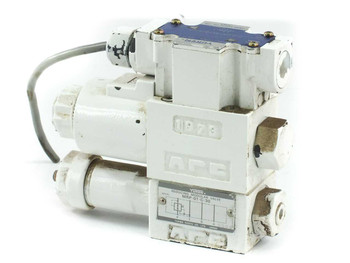

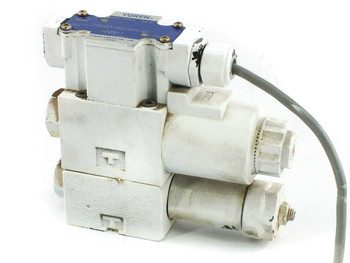

Yuken DSG-01-2B2-D24-60 hydraulic directional valve with MRP-01-C-30 reducing modular valve — front-left three-quarter view showing IP73 enclosure rating and solenoid body Yuken DSG-01-2B2-D24-60 directional valve assembly — right-side view showing Yuken label on solenoid top cap and wiring harness
