Description
Yuken DSG-01-2B2-D24-60 Hydraulic Directional Valve w/ MRP-01-C-30 Reducing
4/3-way double solenoid directional control valve with integrated reducing modular valve. Designed to direct and modulate hydraulic flow in industrial systems, operating at 24V DC with NG6 (CETOP 3/D03) manifold mounting.
Specifications & What's Included
- Model: DSG-01-2B2-D24-60 with MRP-01-C-30 reducing modular valve
- Spool type: 2B2 (all ports blocked in center)
- Max operating pressure: 4570 PSI (315 bar)
- Max flow rate: 63 L/min (16.6 US GPM)
- Max T-line back pressure: 2320 PSI (160 bar)
- Solenoid voltage: 24V DC, double solenoid spring centered
- Enclosure: IP73
- Manifold size: NG6 (CETOP 3 / D03)
Applications
Used in injection molding machines and general industrial hydraulic systems. This valve type manages directional flow control and pressure modulation in processing equipment. Commonly found in Sumitomo injection molders and compatible with standard CETOP 3 / D03 hydraulic manifolds.
Condition: Used

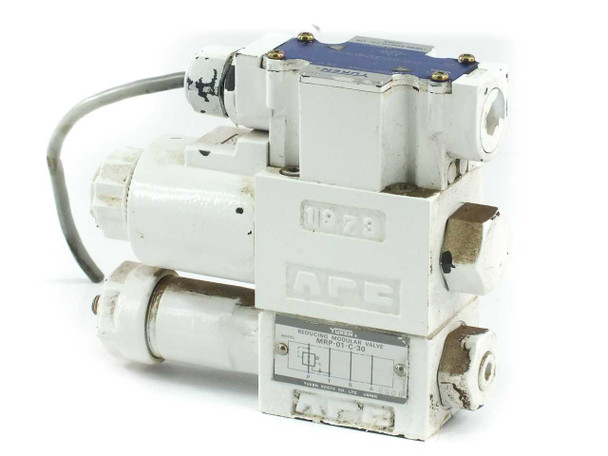

This Yuken DSG-01-2B2-D24-60 hydraulic directional valve with MRP-01-C-30 reducing modular valve has been inspected and is in good used condition. It was recently removed from a Sumitomo injection molder at a facility in the Bay Area, California, where it was in active service and functional. The white body shows typical industrial wear consistent with normal use — light surface marks and minor soiling — but there is no visible cracking, damage to ports, or missing hardware. The solenoid wiring harness and connectors appear intact. Both the directional valve and the reducing modular valve are present and assembled as a unit. Please view our photo set and contact us if you have any questions.
This Yuken DSG-01-2B2-D24-60 hydraulic directional valve with MRP-01-C-30 reducing modular valve has been inspected and is in good used condition. It was recently removed from a Sumitomo injection molder at a facility in the Bay Area, California, where it was in active service and functional. The white body shows typical industrial wear consistent with normal use — light surface marks and minor soiling — but there is no visible cracking, damage to ports, or missing hardware. The solenoid wiring harness and connectors appear intact. Both the directional valve and the reducing modular valve are present and assembled as a unit. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Yuken |
Model: |
DSG-01-2B2-D24-60 |
MPN: |
DSG-01-2B2-D24-60 |
Secondary Model: |
MRP-01-C-30 |
SKU: |
52435 |
Type: |
Hydraulic Solenoid Directional Control Valve |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes MRP-01-C-30 Reducing Modular Valve |
Country/Region of Manufacture: |
Japan |
Manufacturer: |
Yuken Kogyo Co., Ltd. |
Series: |
DSG-01 |
Valve Type: |
4/3-Way Double Solenoid Directional Valve |
Modular Valve Included: |
MRP-01-C-30 Reducing Modular Valve |
Solenoid Voltage: |
24V DC |
Max T-Line Back Pressure: |
2320 PSI (160 bar) |
Max Flow Rate: |
63 L/min (16.6 US GPM) |
Valve Size / NG: |
NG6 (CETOP 3 / D03) |
Spool Type: |
2B2 (All ports blocked in center) |
Actuation Type: |
Double Solenoid, Spring Centered |
Enclosure Rating: |
IP73 |
Application: |
Injection Molding, Industrial Hydraulics |
Compatible With: |
Sumitomo injection molders; CETOP 3 / D03 manifolds |
Condition Notes: |
Yuken DSG-01-2B2-D24-60 directional valve with MRP-01-C-30 reducing modular valve. Inspected, good used condition. Removed from a working Sumitomo injection molder in the Bay Area, CA. Functional in service. Normal industrial wear. |
