Description
Yaskawa B4ICE-03A Sigma II Servo Power Cable 3M 100/200V Single-Phase 0.8kW

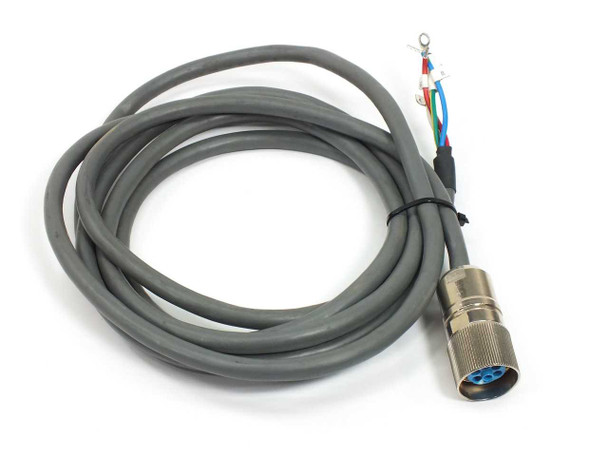

The Yaskawa B4ICE-03A is a pre-wired power cable for Yaskawa Sigma II servomotor systems. It connects a Sigma II servo drive to a compatible servomotor, with a 7-pin circular connector on the motor end and bare wire leads on the drive end. This cable is rated for 100/200V single-phase and supports motor sizes from 0.1 kW up to 0.8 kW. No brake wiring is included. Manufactured in Japan, July 2006, Revision REV8.
Specifications & What's Included
- Part Number: B4ICE-03(A) REV8
- Cable length: 3 meters
- Voltage rating: 100/200V single-phase
- Compatible motor sizes: 0.1 kW, 0.2 kW, 0.4 kW, 0.8 kW

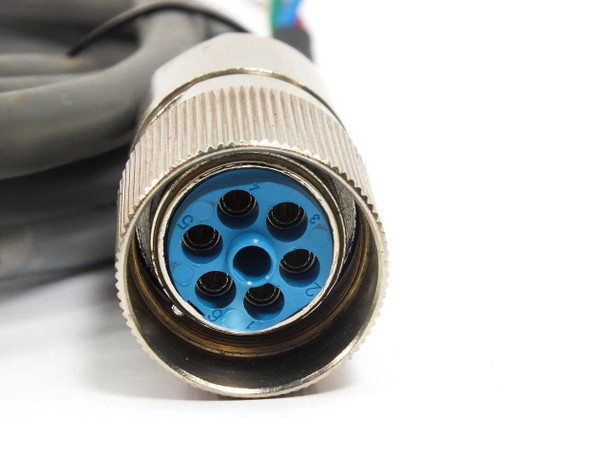

- Motor-end connector: 7-pin circular connector with nickel-plated housing and blue insert

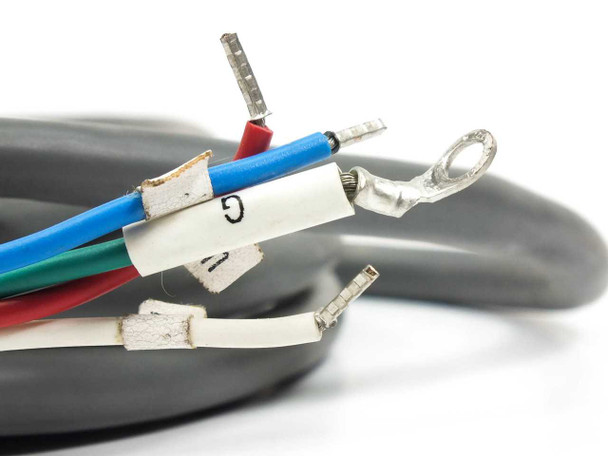

- Drive-end termination: bare wire leads with labeled conductor markers and pre-terminated spade and ring connectors
- Brake wiring: not included (without brake)
- Country of manufacture: Japan
- Manufacture date: July 2006 (FUJ 07/06 per label)
Applications
The Yaskawa Sigma II series is a widely deployed AC servomotor platform used in industrial automation, CNC machine tools, packaging machinery, and general motion control systems. Power cables like the B4ICE-03A are a standard interconnect between the Sigma II servo drive (SGDH series) and small-frame servomotors, handling the main power conductors for single-phase motor operation. These cables are used wherever a Sigma II servo system requires a factory-terminated, pre-wired connection — eliminating the need for custom cable assembly on the machine floor. The Sigma II platform was introduced in the early 2000s and remains in service across a large installed base of manufacturing equipment worldwide, so replacement and spare cables continue to be in demand for maintenance and repair of existing systems.

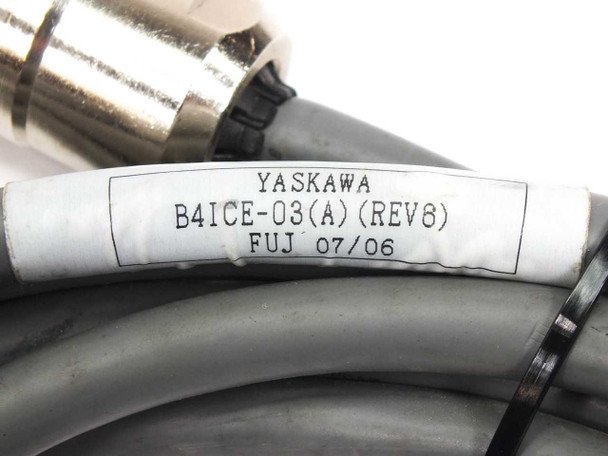

This Yaskawa B4ICE-03A Sigma II servo power cable is in good used condition. It was pulled from a working servo system where it was actively in use. The cable jacket is intact with no visible cuts or damage. The 7-pin circular connector at the motor end is clean and undamaged — the blue insert and pin sockets are in good shape. The bare wire leads at the drive end retain their labeled conductor markers and pre-terminated spade and ring connectors. The label on the cable clearly reads B4ICE-03(A) REV8, manufactured by Yaskawa (FUJ 07/06). Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Yaskawa |
Model: |
B4ICE-03A |
MPN: |
B4ICE-03(A) |
Type: |
Servo Motor Power Cable |
SKU: |
49043 |
Revision: |
REV8 |
Cable Length: |
3 Meters |
Voltage Rating: |
100/200V |
Phase: |
Single-Phase |
Compatible Motor Sizes: |
0.1 kW, 0.2 kW, 0.4 kW, 0.8 kW |
Compatible With: |
Yaskawa Sigma II Servomotor Systems |
Brake Support: |
Without Brake |
Connector Type: |
7-pin circular (motor end); bare wire leads (drive end) |
Seller Notes: |
Pre-wired power cable for Sigma II servomotors; no brake wiring included |
Country/Region of Manufacture: |
Japan |
Manufacture Date: |
July 2006 (FUJ 07/06 per label) |
Condition Notes: |
Yaskawa B4ICE-03A Sigma II servo power cable, 3M. Inspected, good used condition. Pulled from a working servo system. Cable jacket intact, 7-pin connector clean, labeled wire leads undamaged. Please view photos and contact us with questions. |
Series: |
Sigma II |
