Yamashita Denso PXS-0855MP Amorphous Solar Panel I-V Flash Tester 6000x900mm

Yamashita Denso PXS-0855MP Amorphous Solar Panel I-V Flash Tester 6000x900mm

The Yamashita Denso PXS-0855MP is a large-format solar panel I-V flash tester (solar simulator) built to measure the current-voltage (I-V) characteristics of amorphous thin-film and polysilicon solar panels up to 18 feet (approximately 6000mm) in length. The system was designed specifically by Yamashita Denso (YDC) for Unisolar to test their PVL and ePVL series flexible amorphous a-Si solar laminates, but is also capable of testing standard-size crystalline silicon solar modules. It consists of three integrated 2000mm x 900mm flash tester sections that combine to form a single continuous 6000mm x 900mm test bed, allowing simultaneous or individual testing of up to two long-format panels side by side.

Specifications & What's Included

• Model: Yamashita Denso PXS-0855MP
• Maximum panel test area: 6000mm x 900mm (approx. 19 ft x 3 ft)

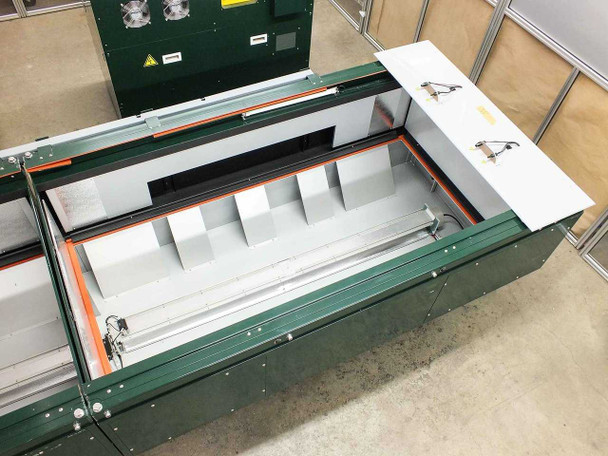

• Configuration: 3 x integrated 2000mm x 900mm flash tester sections

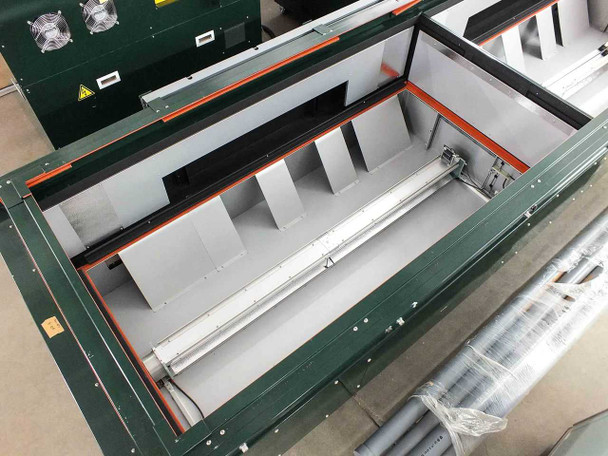

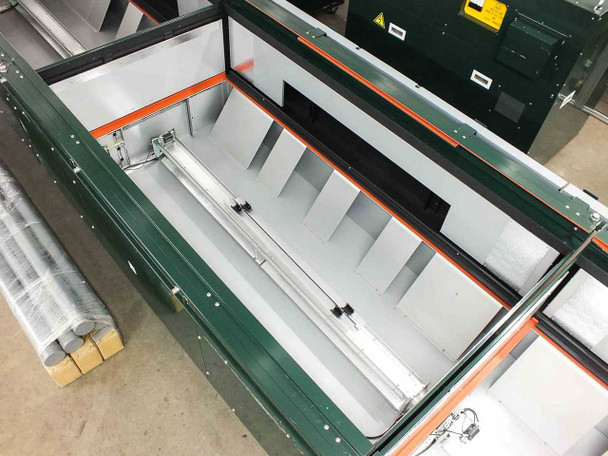

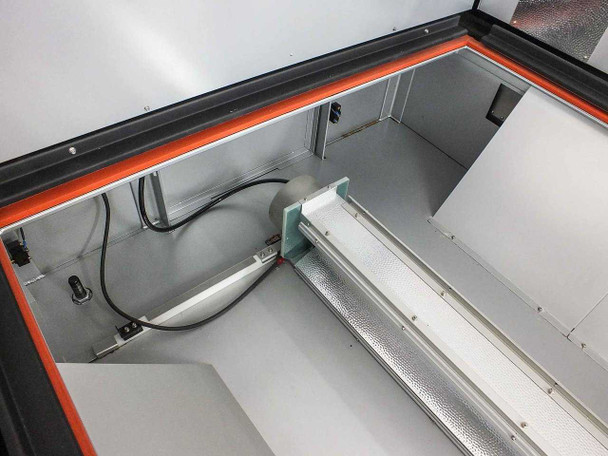

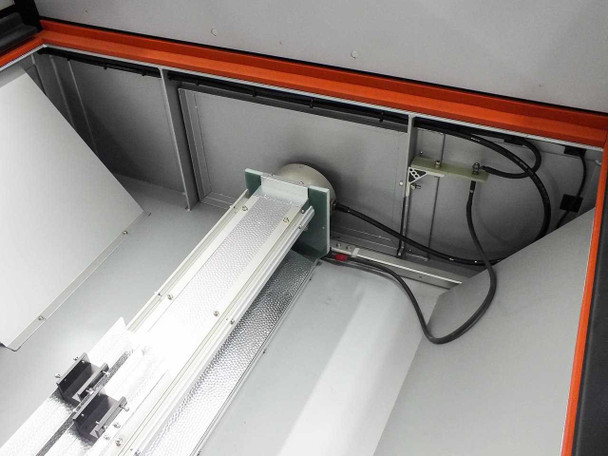

• Light source: Xenon flash lamps (upgraded bulbs; replaceable without recalibration due to optical glass design)

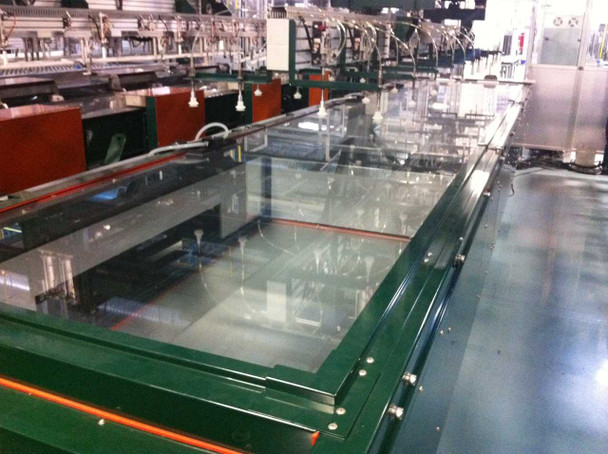

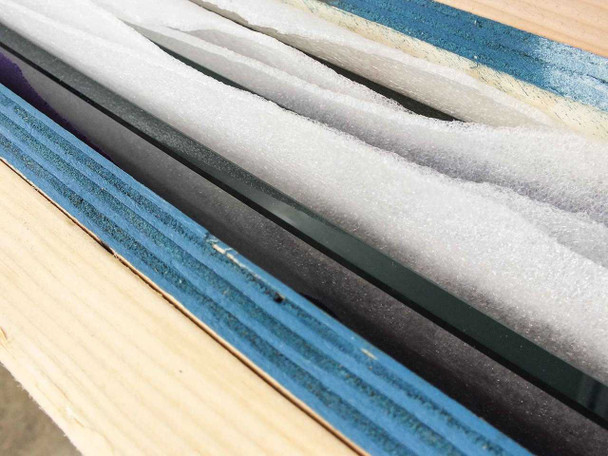

• Optical design: special optical glass top surface for uniform, repeatable illumination
• Panel capacity: simultaneous dual-panel testing or single-panel operation
• Compatible panel types: Unisolar PVL, ePVL (flexible amorphous a-Si laminates); polysilicon; standard crystalline silicon modules
• Measurement: I-V curve characterization — Isc, Voc, Pmax, Vpm, Ipm, FF, efficiency, Rsh, Rsh per panel

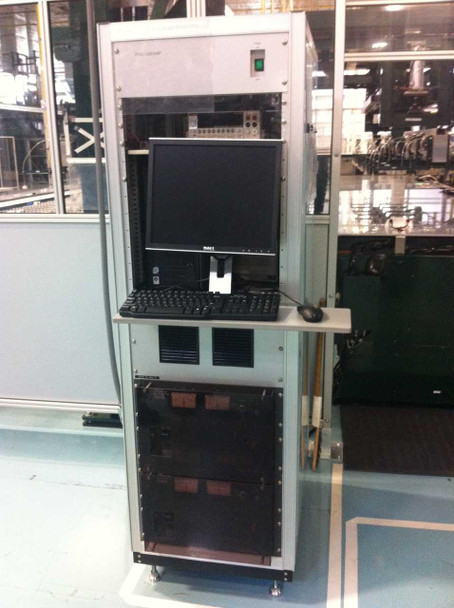

• Control system: integrated rack-mount workstation with Dell LCD monitor, keyboard, and mouse; dedicated panel tester software displaying dual Module A / Module B I-V curves

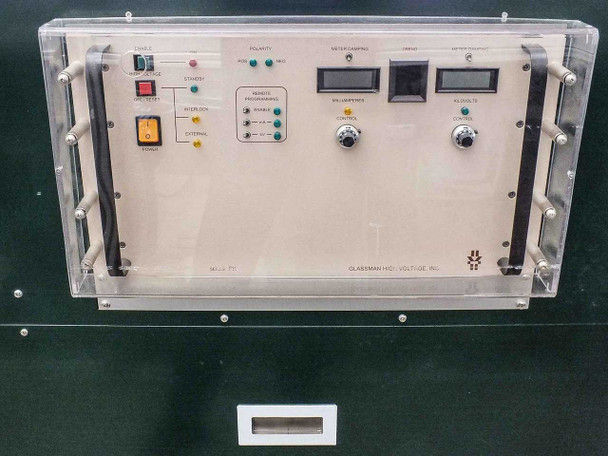

• High-power capacitor bank and power supply hardware visible inside cabinet underside

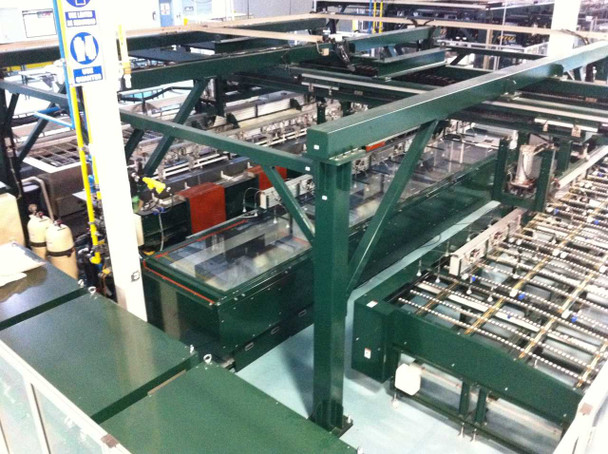

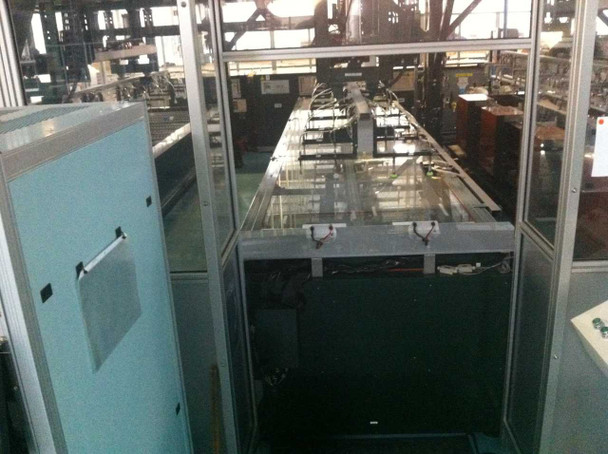

• Installed new: 2011 at Unisolar solar panel manufacturing plant, Mexico

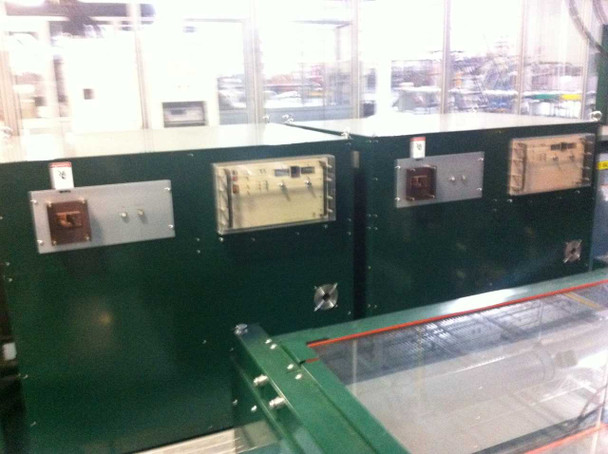

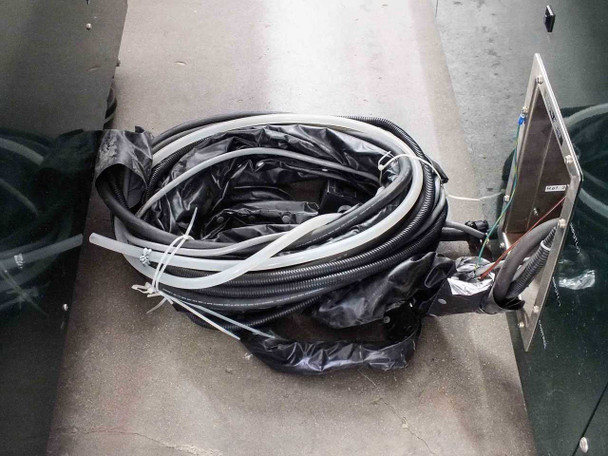

• Included: 3 flash tester section cabinets (on casters), control rack with Dell PC workstation, loose interconnect cable bundles, wooden shipping crates
• NOT included / INCOMPLETE: system is missing components and is not fully assembled for operation

Applications

Solar panel I-V flash testers are the standard production-line and R&D instrument used to characterize the electrical output of photovoltaic modules under simulated standard test conditions (STC: 1000 W/m², AM1.5, 25°C). A Xenon flash lamp fires a brief, intense pulse of light over the panel surface while the system simultaneously sweeps voltage and records current, producing the I-V curve from which key parameters — Voc, Isc, Pmax, fill factor, and conversion efficiency — are derived. Large-format flash testers like the PXS-0855MP were purpose-built for the thin-film and flexible laminate solar market that grew rapidly in the late 2000s, particularly for Unisolar's building-integrated PVL laminates that bonded directly to standing-seam metal roofs and could not be tested on standard module-sized testers. The ability to test panels up to 18–19 feet long in a single pass — or two panels simultaneously — made this class of system essential in high-throughput manufacturing environments. Today, large-format I-V flash testers are sought by thin-film PV manufacturers, solar R&D labs, university photovoltaics programs, and companies developing next-generation flexible or BIPV solar products who need to validate long-format panels without cutting them down. The three-section modular design also means individual 2000x900mm sections can potentially be used independently or reconfigured for different test geometries.
