Xunlight

Xunlight XLS12-100 100W Flexible Amorphous Solar Panel 12V Battery Charging

(No reviews yet) Write a Review
SKU:
52097
MPN:
XLS12-100
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
$125.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

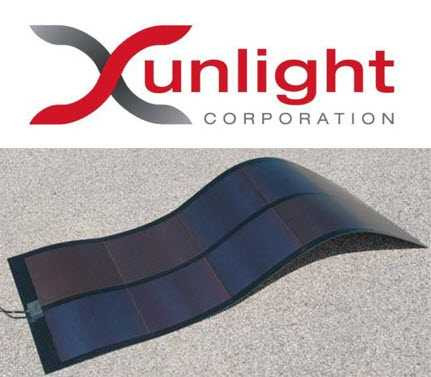

Xunlight XLS12-100 100W Flexible Amorphous Solar Panel 12V Battery Charging

The Xunlight XLS12-100 is a 100-watt flexible amorphous silicon solar panel designed for 12V battery charging applications. Unlike rigid crystalline panels, it uses a thin-film amorphous silicon construction on a flexible substrate that can be rolled up for storage or transport, making it well suited for installations on curved or irregular surfaces.

Specifications & What's Included

  • Model: Xunlight XLS12-100
  • Power Output: 100W
  • Solar Cell Technology: Amorphous silicon (thin film)
  • Number of Solar Cells: 12
  • Unrolled Dimensions: 70 x 35 inches
  • Rolled-Up Diameter: Approximately 12 inches
  • System Voltage: 12V
  • Application: 12V battery charging
  • Note: Solar cell color and border color may vary from panels shown in photos

Applications

Flexible amorphous solar panels like the XLS12-100 are used in applications where a rigid panel is impractical — RVs, boats, marine vessels, camper vans, tents, and off-grid portable power setups where the panel needs to conform to a curved surface or roll up for transport. Amorphous silicon panels perform better than crystalline panels in low-light and diffuse light conditions, which makes them a common choice for overcast climates and shaded environments. The 100W output at 12V is suitable for maintaining or charging 12V lead-acid or AGM battery banks. Xunlight Corporation, based in Toledo, Ohio, was known for producing large-format roll-to-roll amorphous silicon thin-film panels and brought commercial thin-film flexibility to portable and marine solar markets.

Condition: Used
This Xunlight XLS12-100 100W Flexible Amorphous Solar Panel is in used condition and has been inspected. The panel is intact and ready to install and use. Note that the color of the solar cells and/or border trim may vary slightly from what is shown in the photos, as these panels can differ between production runs. Please review all photos and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Xunlight
Model:
XLS12-100
MPN:
XLS12-100
Type:
Flexible Amorphous Solar Panel
SKU:
52097
Power Output:
100W
Solar Cell Technology:
Amorphous Silicon (Thin Film)
Number of Solar Cells:
12
Panel Dimensions:
70 x 35 inches
Rolled Diameter:
Approximately 12 inches
System Voltage:
12V
Application:
Battery Charging
Form Factor:
Flexible / Rollable
Compatible With:
12V battery charging systems, RV, marine, off-grid
Seller Notes:
Panel only. Cell color and border color may vary from photos.
Country/Region of Manufacture:
United States
Condition Notes:
This Xunlight XLS12-100 100W Flexible Amorphous Solar Panel is in used condition and has been inspected. Cell and border color may vary from photos. Please contact us with any questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
