Wilhelm Bothner WB15 Optical Curve Generating Lathe 60° Swivel 150mm Stroke 220V

Wilhelm Bothner WB15 Optical Curve Generating Lathe 60° Swivel 150mm Stroke 220V

The Wilhelm Bothner WB15 is a precision optical curve generating lathe built by Wilhelm Bothner & Co., Masch. u. Zahnradfabrik, Braunschweig, Germany — a specialist German manufacturer of machine tools and gear-cutting machinery. This type of machine is designed to generate accurate spherical and aspherical curved surfaces on optical elements such as lenses, prisms, and glass blanks by driving a rotating workpiece against a precision-controlled cutting or grinding tool along a defined radius path. The WB15 features a 60° swivel range and a 150mm stroke, providing the geometry range needed for a wide variety of optical surface radii. Power is 220VAC via a dual-motor arrangement — a driving motor for the main curve-generation mechanism and a separate work motor for the workpiece spindle.

Specifications & What's Included

• Manufacturer: Wilhelm Bothner & Co., Braunschweig, Germany
• Model: WB15
• Machine type: Optical Curve Generating Lathe
• Swivel range: 60°
• Stroke: 150mm
• Power: 220VAC
• Drive: Dual-motor — Driving Motor and Work Motor

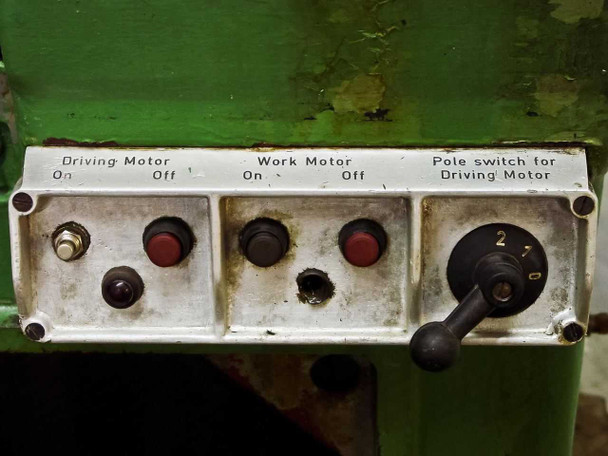

• Control panel: Driving Motor On/Off pushbuttons, Work Motor On/Off pushbuttons, Pole Switch for Driving Motor (2-speed)

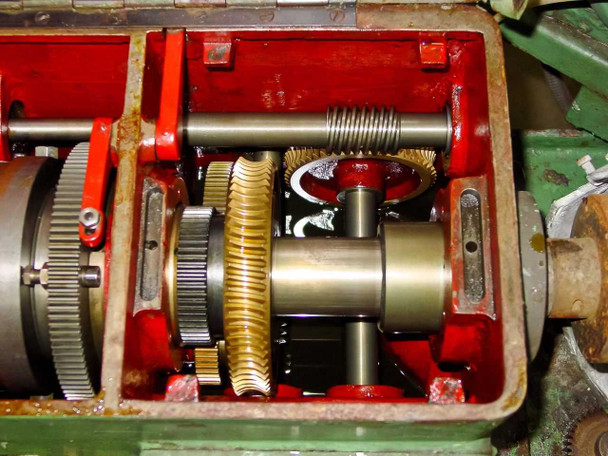

• Internal mechanism: Worm and helical gear train with large bronze worm wheel; red-painted internal gearbox housing

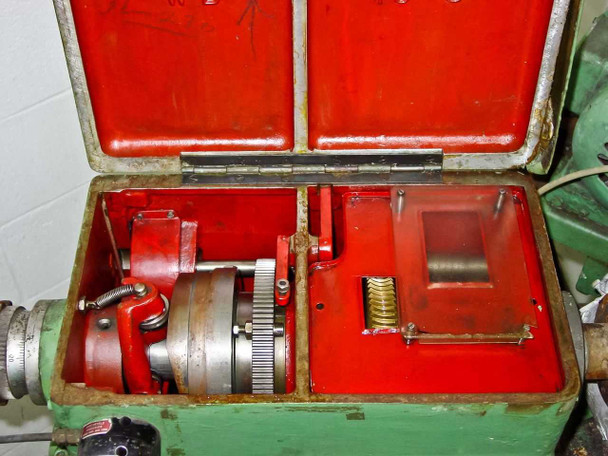

• Curve-generating cam mechanism visible in top compartment with adjustable toolholder tray

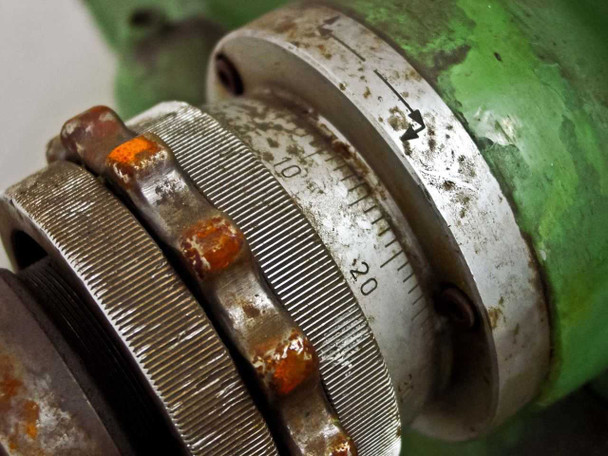

• Precision spindle with graduated micrometer collar (scale visible to 150–180mm range)
• Spindle assembly with dual cable connections and precision coupler
• Integrated air/oil lubrication system with pressure regulator, filter bowls, and pressure gauge on side panel
• Secondary lubrication/filtration panel with oil reservoir and gauge
• Floor-standing pedestal cabinet construction on original pallet
• Accessory tray with toolholders present (see photos)
