Watlow G9N-13995 FIREROD 240V 180W Cartridge Heater Element 3/8" x 9.75"
The Watlow G9N-13995 is a FIREROD cartridge immersion heater element designed for insertion into drilled holes in metal tooling, dies, molds, platens, and process equipment to provide precise, localized electric resistance heating. The stainless steel sheath houses a coiled resistance wire element insulated with compacted magnesium oxide (MgO), and the unit terminates in bare lead wires for direct connection to a control circuit. Manufactured by Watlow Electric Manufacturing Co. of St. Louis, Missouri, the FIREROD line is one of the most widely used cartridge heater families in industrial process heating.
Specifications & What's Included
- Manufacturer: Watlow (Watlow St. Louis)
- Part Number / MPN: G9N-13995
- Series: FIREROD
- Voltage: 240V AC
- Power Rating: 180W
- Rod (Sheath) Diameter: 0.375" (3/8")
- Overall Length: 9.75"
- Tip-to-Hilt Length: 7.25"
- Heated Length: 7.0" (hilt to 0.25" from tip)
- Hilt Diameter: 0.625"
- Hilt Thickness: 0.125"
- Lead Wire Length: 5 ft (bare stripped wire terminations)
- Sheath Material: Stainless steel

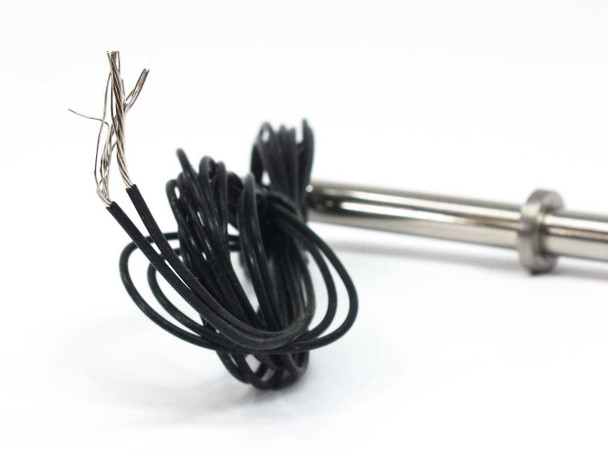

- Termination: Bare lead wires (two conductors)
- Includes: Heater element with attached 5 ft lead wires
Applications
FIREROD cartridge heaters are a standard electric heating element used throughout industrial manufacturing and process industries. They are inserted into precision-drilled bores in metal components — including injection mold tooling, die casting dies, hot runner manifolds, platens, heated rolls, packaging machinery, and semiconductor process fixtures — where direct conductive heat transfer to the surrounding metal is required. The 3/8" diameter is one of the most common cartridge heater sizes in tooling applications. At 240V/180W, this element is suited for small-bore heating zones requiring moderate watt density. Watlow FIREROD elements are also widely used in laboratory heating apparatus, food processing equipment, and custom OEM thermal assemblies. The bare-wire lead termination allows connection to thermocouples, solid-state relays, or PID controllers in a complete heating circuit. Watlow has manufactured FIREROD cartridge heaters in St. Louis since the mid-20th century, and the product line remains in active production and everyday industrial use today.
This Watlow G9N-13995 FIREROD cartridge heater element is brand new and unused. It comes in open-box condition — the item itself is new and uninstalled, though original manufacturer packaging may not be present or may be opened. The stainless steel sheath shows no signs of use, the hilt and lead wires are intact, and the bare wire terminations are clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Watlow |
Model: |
G9N-13995 |
MPN: |
G9N-13995 |
Type: |
Cartridge Immersion Heater Element |
SKU: |
48928 |
Voltage: |
240V AC |
Power Rating: |
180W |
Rod Diameter: |
0.375" (3/8") |
Overall Length: |
9.75" |
Heated Length: |
7.0" |
Tip-to-Hilt Length: |
7.25" |
Hilt Diameter: |
0.625" |
Hilt Thickness: |
0.125" |
Lead Wire Length: |
5 ft |
Termination Type: |
Bare lead wires |
Country/Region of Manufacture: |
United States |
Series: |
FIREROD |
Seller Notes: |
New open-box Watlow FIREROD cartridge heater element with 5 ft lead wires. |
Condition Notes: |
Watlow G9N-13995 FIREROD 240V 180W cartridge heater is brand new and unused. Open-box — item is new/uninstalled; original packaging may be open or absent. Sheath, hilt, and lead wires are clean and undamaged. |
