Watlow G11E-14328 FIREROD Cartridge Heater 3/8" Dia 11.25" 240V 180W

(No reviews yet) Write a Review
SKU:
48929
MPN:
G11E-14328
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

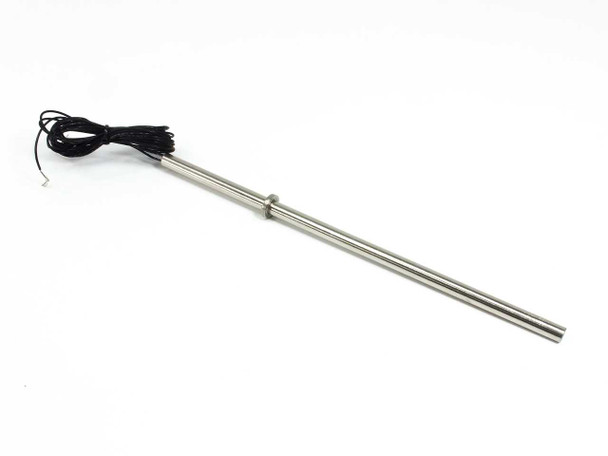

  • Watlow G11E-14328 FIREROD cartridge insertion heater full length view with black lead wires coiled at hilt

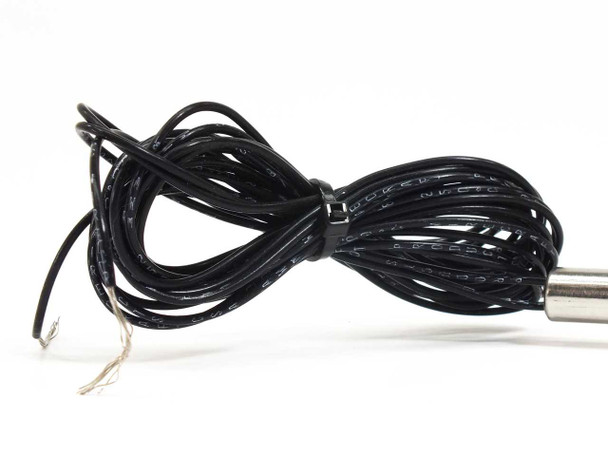

  • Watlow FIREROD G11E-14328 cartridge heater lead wire close-up showing bare wire ends and black insulation

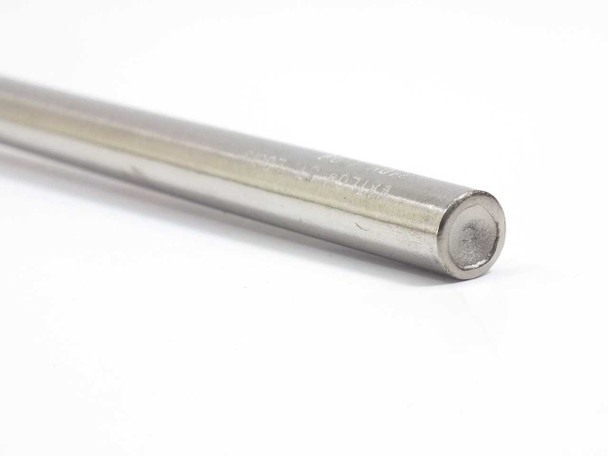

  • Watlow G11E-14328 FIREROD heater rod tip close-up showing 3/8-inch stainless steel body and end face

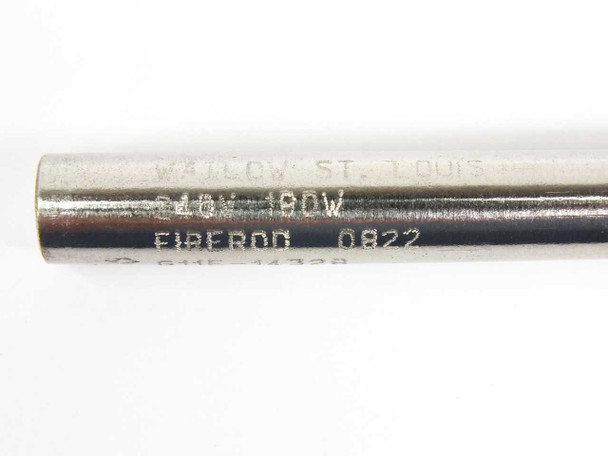

  • Watlow G11E-14328 FIREROD label on heater body showing 240V 180W rating, FIREROD designation, and part number
$50.00
Was: $100.00
Current Stock: 39

Sold Out

Description

Watlow G11E-14328 FIREROD Cartridge Heater 3/8" Dia 11.25" 240V 180W

Cartridge insertion heater manufactured by Watlow for direct immersion or cavity heating applications. Operates at 240V with 180W power output.

Specifications & What's Included

  • Model: G11E-14328 FIREROD series
  • Rod diameter: 3/8" (0.375")
  • Overall length: 11.25"
  • Heating length: 7.50"
  • Voltage: 240V
  • Power: 180W
  • Lead wire length: 5 ft black, bare ends
  • Made in USA

Applications

FIREROD cartridge heaters are used in industrial and laboratory equipment requiring localized heating. Typical applications include injection molding machines, extruders, process control systems, and thermal processing equipment. The compact form factor allows insertion into drilled cavities or direct immersion in fluids for temperature regulation.

Condition: New - Open Box
Watlow G11E-14328 FIREROD cartridge heater, 3/8" diameter, 11.25" length, 240V 180W. This is a new, unused unit with original packaging opened or not present. The stainless steel rod body and tip show no signs of use or wear. The 5 ft black lead wires are intact with bare wire ends ready for connection. Ready to install and use. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Watlow
Model:
G11E-14328
MPN:
G11E-14328
Type:
Cartridge Insertion Heater
SKU:
48929
Series:
FIREROD
Voltage:
240V
Power Rating:
180W
Rod Diameter:
0.375 in (3/8")
Overall Length:
11.25 in
Heating Length:
7.50 in
Tip-to-Hilt Length:
7.75 in
Hilt Diameter:
0.625 in
Hilt Thickness:
0.125 in
Lead Wire Length:
5 ft
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Heater rod with 5 ft black lead wires; no additional accessories included.
Condition Notes:
New/open box Watlow G11E-14328 FIREROD cartridge heater. Unused, stainless steel body shows no wear. 5 ft lead wires intact, ready to connect.
View AllClose
