Watlow G10E-15180 FIREROD Cartridge Heater 208V 75W 3/8" x 10.25" Lot of 4

Watlow G10E-15180 FIREROD Cartridge Heater 208V 75W 3/8" x 10.25" Lot of 4

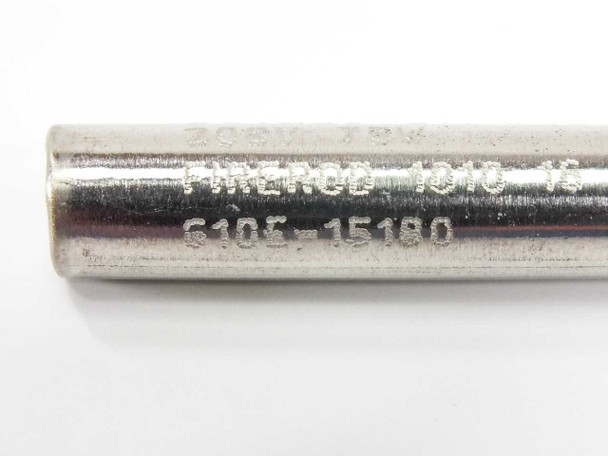

This listing is for a lot of four new Watlow G10E-15180 FIREROD cartridge heaters rated at 208V and 75W. FIREROD cartridge heaters are precision resistance heating elements with a stainless steel sheath designed to be inserted directly into drilled holes in tooling, dies, molds, or process equipment to deliver concentrated, efficient heat. Each unit features a 6-foot braided lead wire and a machined hilt for positive seating and heat break at the bore opening.

Specifications & What's Included

• Manufacturer: Watlow
• Part Number / MPN: G10E-15180
• Series: FIREROD
• Quantity: 4 heaters (lot)
• Voltage: 208V
• Power: 75W
• Rod (sheath) diameter: 0.375" (3/8")
• Overall length: 10.25"
• Heating length: 6.0" (hilt to 0.25" from tip)
• Tip-to-hilt length: 6.25"
• Hilt diameter x thickness: 0.625" x 0.125"
• Lead / cable length: 6 ft braided
• Sheath material: stainless steel

Applications

Watlow FIREROD cartridge heaters are a widely used industrial heating element for applications requiring compact, high-watt-density heat in confined spaces. They are inserted into close-tolerance drilled bores in injection mold platens, stamping dies, hot runner manifolds, packaging sealing jaws, laboratory heating blocks, and general process tooling. The 3/8-inch diameter is one of the most common sizes in tooling applications, and the 208V rating suits standard three-phase industrial power infrastructure. Watlow has manufactured the FIREROD line in the United States since the 1950s, and it remains a production standard for OEM machine builders and maintenance operations requiring replacement heater elements. This lot of four same-spec units is well suited for multi-zone tooling applications or as stock spares for equipment already using this model.
