Description
Vibrint Technologies MPression MPEG-2 Video Server SDI AES/EBU RS422 24-0005-05
MPEG-2 video server and encoding device designed for broadcast production environments. Accepts multiple video input formats and outputs encoded video via SDI with synchronized audio over AES/EBU and analog connections.
Specifications & What's Included

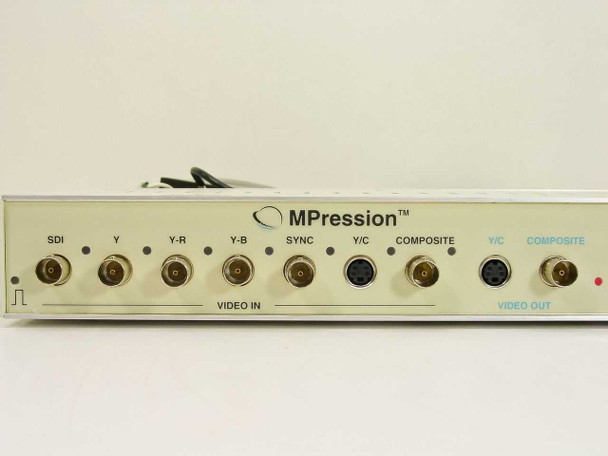

- Video inputs: SDI, Y/C, Composite, component (Y, Y-R, Y-B)
- Video outputs: SDI, Y/C, Composite

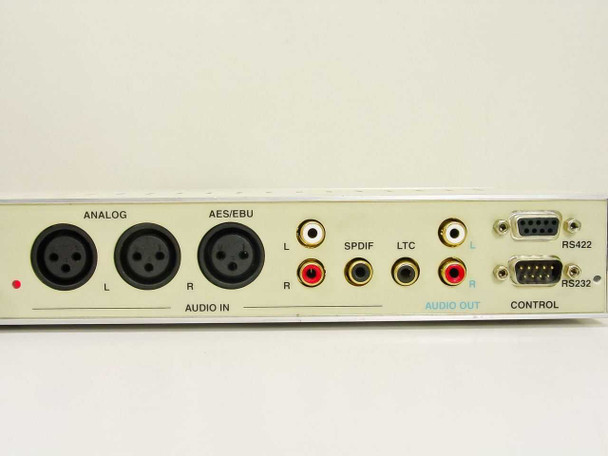

- Audio inputs: Analog XLR (L/R), AES/EBU XLR (L/R)
- Audio outputs: AES/EBU XLR, SPDIF, LTC, analog RCA (L/R)
- Control: RS422, RS232, DB-9 PC Communication port
- Digital I/O: SCSI-style 50-pin connector
- Power: 115V AC, 50/60Hz via included Power Products HE381 external PSU
- Form factor: Desktop/1U rackmountable
Applications
Used in broadcast video production and post-production workflows for MPEG-2 encoding and video serving. Connects to SDI-based production systems, NLE workstations, and broadcast infrastructure. Supports real-time or file-based video encoding with synchronized timecode and audio.
Condition: Used

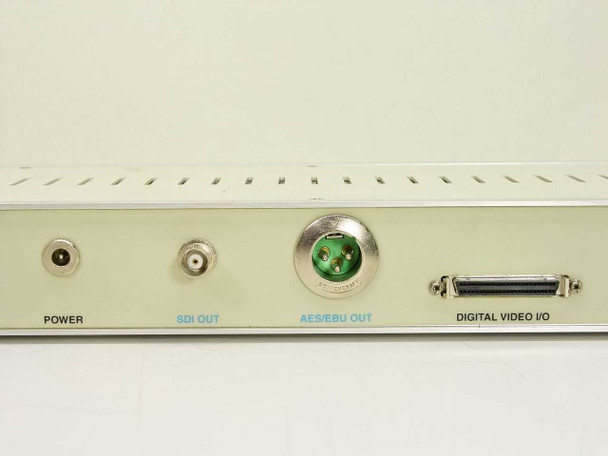

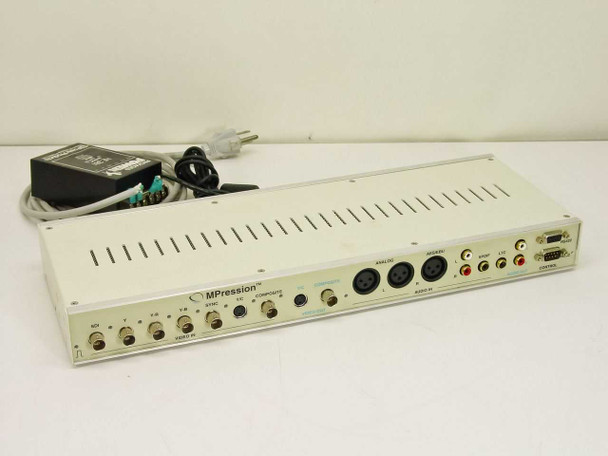

This Vibrint Technologies MPression MPEG-2 production video server has been inspected and is in good used condition. The unit shows light shelf wear consistent with prior professional use, including minor scuffing on the chassis surface, but overall presents cleanly. All front-panel BNC, XLR, S-Video, and RCA connectors appear intact and undamaged. The rear-panel RS422, RS232, Digital Video I/O, AES/EBU Out, and SDI Out connectors are also present and in good order. The unit includes the original Power Products HE381 external power supply with cable. Please view our photo set and contact us if you have any questions.
This Vibrint Technologies MPression MPEG-2 production video server has been inspected and is in good used condition. The unit shows light shelf wear consistent with prior professional use, including minor scuffing on the chassis surface, but overall presents cleanly. All front-panel BNC, XLR, S-Video, and RCA connectors appear intact and undamaged. The rear-panel RS422, RS232, Digital Video I/O, AES/EBU Out, and SDI Out connectors are also present and in good order. The unit includes the original Power Products HE381 external power supply with cable. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Vibrint Technologies |
Model: |
MPression |
MPN: |
24-0005-05 |
SKU: |
39841 |
Condition: |
Used – Inspected |
Seller Notes: |
Includes Power Products HE381 external power supply and cable. |
Form Factor: |
Desktop / 1U Rackmountable |
Video Standard: |
MPEG-2 |
Video Input: |
SDI, Y, Y-R, Y-B, Sync, Y/C, Composite |
Video Output: |
Y/C, Composite, SDI Out |
Audio Input: |
Analog XLR (L/R), AES/EBU XLR (L/R) |
Audio Output: |
SPDIF, LTC, Analog RCA (L/R), AES/EBU Out |
Control Interface: |
RS422, RS232 |
Digital I/O: |
Digital Video I/O (SCSI-style 50-pin connector) |
PC Communication: |

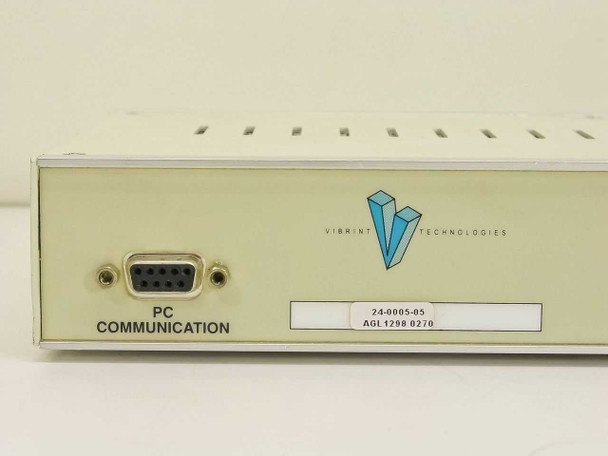

DB-9 PC Communication port |
Power Requirements: |
115V AC, 50/60Hz (via HE381 external PSU) |
Power Supply Model: |

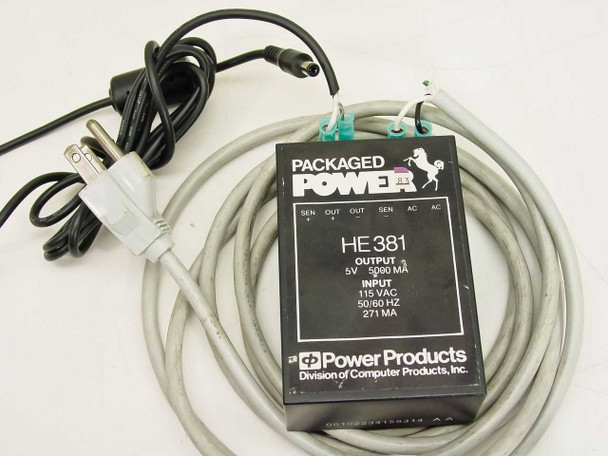

Power Products HE381 (5V, 5000mA output) |
Country of Manufacture: |
United States |
Application: |
Broadcast video production, MPEG-2 encoding/serving |
Compatible With: |
Broadcast production systems, NLE workstations via SDI/RS422 |
Condition Notes: |
This Vibrint Technologies MPression MPEG-2 production video server has been inspected and is in good used condition. The unit shows light shelf wear consistent with prior professional use, including minor scuffing on the chassis surface, but overall |
