Description
Vibrint Technologies AES/EBU SDI Audio Console Embedder w/ Power Supply
Desktop audio embedder for SDI video signals. Combines XLR audio inputs with SDI video to distribute embedded audio in broadcast environments.
Specifications & What's Included
- Model: 24-0012-04
- Audio connectors: XLR (AES/EBU, stereo, monitor)
- Video connectors: BNC (SDI, CVBS, reference), Mini-DIN (Y/C)

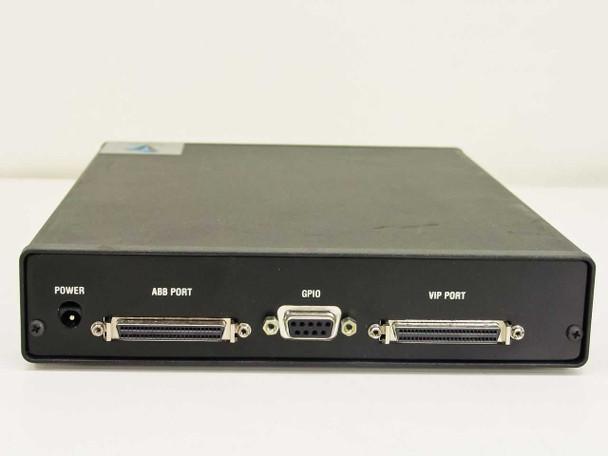

- Control ports: DB25 ABB, DB9 GPIO, DB25 VIP
- Features: MUTE button, STATUS and POWER LEDs

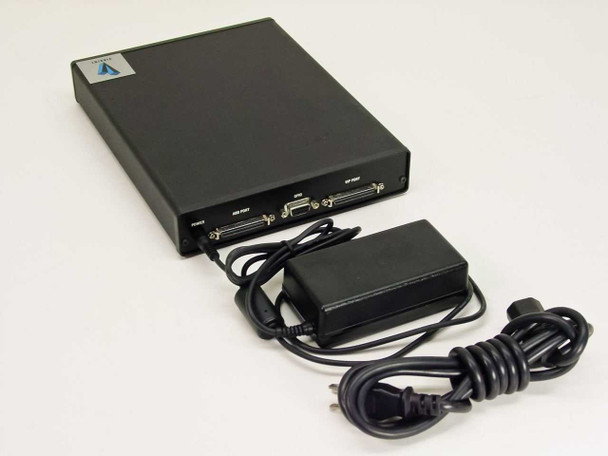

- Includes external power supply with AC cable
Applications
Used in broadcast facilities for audio embedding in SDI distribution chains. Designed to integrate professional audio feeds into video signals for production workflows and on-air distribution.
Condition: For Parts or Not Working
This Vibrint Technologies AES/EBU SDI Audio Console (model 24-0012-04) is being sold as-is for parts or repair. The unit does power on, but it has not been tested beyond that. We cannot confirm whether it is fully functional, whether it performs as intended, or whether any parts may be missing. It is sold in its current state with no functionality guarantee. The unit includes an external power supply with AC cord. Please view our photo set and contact us if you have any questions.
This Vibrint Technologies AES/EBU SDI Audio Console (model 24-0012-04) is being sold as-is for parts or repair. The unit does power on, but it has not been tested beyond that. We cannot confirm whether it is fully functional, whether it performs as intended, or whether any parts may be missing. It is sold in its current state with no functionality guarantee. The unit includes an external power supply with AC cord. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Vibrint Technologies |
Model: |
24-0012-04 |
MPN: |
24-0012-04 |
SKU: |
39842 |
Type: |
AES/EBU SDI Audio Embedder / Console |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes external power supply with AC cable. Sold as-is. |
Form Factor: |
Desktop / Tabletop |
Interface Type: |
AES/EBU, SDI, Y/C, CVBS, XLR, BNC, ABB, GPIO, VIP |
Audio Connectors: |
XLR (AES/EBU in, Left Audio, Right Audio, MON) |
Video Connectors: |
BNC (SDI, CVBS, REF IN), Mini-DIN Y/C |
Control Ports: |
ABB Port (DB25), GPIO (DB9), VIP Port (DB25) |
Additional Features: |

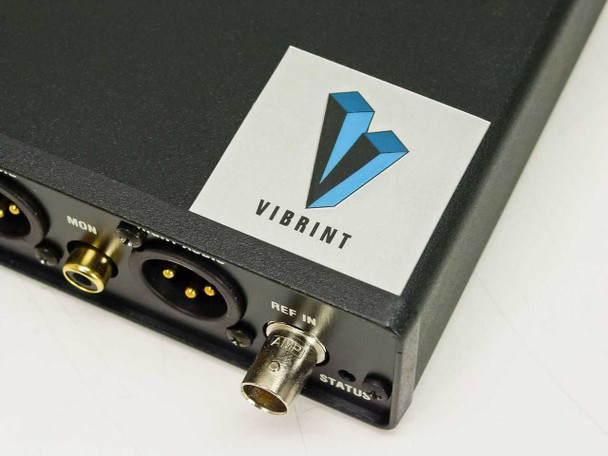

MUTE button, STATUS LED, POWER LED, REF IN BNC |
Country/Region of Manufacture: |
United States |

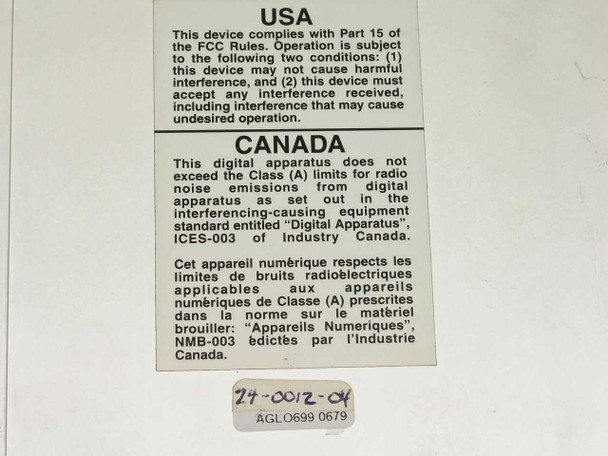

FCC Compliance: |
FCC Part 15 |
Application: |
Broadcast audio embedding, SDI video/audio distribution |
Condition Notes: |
Vibrint Technologies AES/EBU SDI Audio Console 24-0012-04 sold as-is for parts or repair. Powers on but has not been tested. Functionality not confirmed; parts may be missing. Includes power supply. |
