Varian VZC-6965 Cable Set Amplifier to Power Supply NEMA L5-30 125V 30A
Complete cable and harness assembly for connecting a Varian VZC-6965 TWT (Traveling Wave Tube) amplifier to its external power supply. This set includes both power distribution and signal control cabling.
Specifications & What's Included
- Model: VZC-6965 | Part Number: 00-112820-07 N
- Power Cable: NEMA L5-30 twist-lock connector, 125V 30A
- Signal Harness: Military-style circular connector, DB-15 and DB-9 D-Sub connections

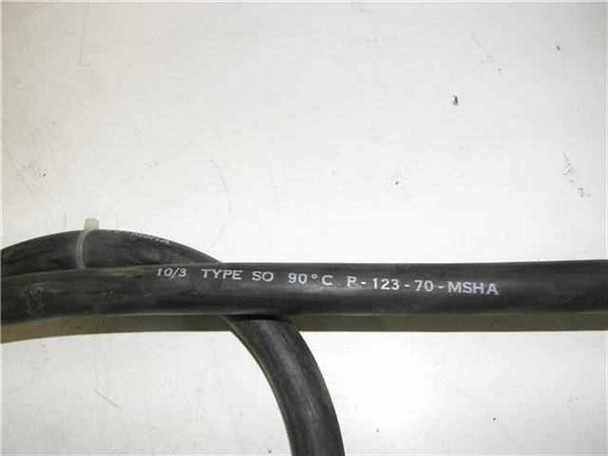

- Cable Jacket: 10/3 Type SO, 90°C rated, R-123-70-MSHA compliant
- Includes power cable and multi-conductor signal harness assembly
Applications
Designed for TWT/TWTA (Traveling Wave Tube Amplifier) satellite communications systems. Varian amplifiers of this class were used in ground station uplink equipment, transportable satellite terminals, and fixed-site RF amplification networks. The cable set interfaces amplifier RF output stages with external high-voltage DC power supplies and command/monitoring control systems.
Condition: Used

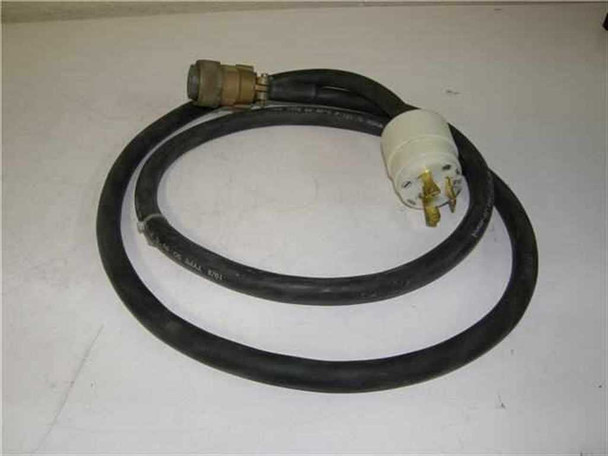

This Varian VZC-6965 Amplifier to Power Supply Cable Set has been tested and is in good working condition. The set includes the power cable — fitted with a NEMA L5-30 twist-lock plug (125V/30A) on one end and a military-style circular connector on the other — and the multi-conductor signal harness assembly (P/N 00-112820-07 N), which terminates in D-Sub and multi-pin connectors at both ends. The power cable jacket is marked 10/3 Type SO, 90°C, R-123-70-MSHA. Cables and connectors show normal wear consistent with prior use; no broken pins or damaged jacketing was observed. Please view our photo set and contact us if you have any questions.
This Varian VZC-6965 Amplifier to Power Supply Cable Set has been tested and is in good working condition. The set includes the power cable — fitted with a NEMA L5-30 twist-lock plug (125V/30A) on one end and a military-style circular connector on the other — and the multi-conductor signal harness assembly (P/N 00-112820-07 N), which terminates in D-Sub and multi-pin connectors at both ends. The power cable jacket is marked 10/3 Type SO, 90°C, R-123-70-MSHA. Cables and connectors show normal wear consistent with prior use; no broken pins or damaged jacketing was observed. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Varian |
Model: |
VZC-6965 |
MPN: |
00-112820-07 N |
Type: |
Amplifier to Power Supply Cable Set |
SKU: |
35902 |
Condition: |
Used – Inspected and Tested |
Compatible With: |
Varian VZC-6965 TWT Amplifier |
Connector Type 1: |
NEMA L5-30 (125V, 30A, twist-lock) |
Connector Type 2: |
Military-style circular connector |
Connector Type 3: |
D-Sub (DB-15 and DB-9 style) |
Cable Jacket: |
10/3 Type SO, 90°C, R-123-70-MSHA rated |
Power Rating: |
125V, 30A |
Harness Part Number: |
00-112820-07 N |
Seller Notes: |
Includes power cable (NEMA L5-30) and multi-conductor signal harness assembly. |
Application: |
TWT / TWTA Satellite Communications Amplifier |
Condition Notes: |
Varian VZC-6965 Amplifier to Power Supply Cable Set. Tested and in good working condition. Includes NEMA L5-30 power cable (125V/30A) and signal harness P/N 00-112820-07 N. Normal wear. Please contact us with questions. |
