Varian MED 01-000062-00H 12kVA 3-Phase Transformer Klystron RF Power Supply

(No reviews yet) Write a Review
SKU:
45820
MPN:
01-000062-00H
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
257.00 LBS
Shipping:
Calculated at Checkout
  • Varian MED 01-000062-00H 12kVA three-phase transformer — front-left view showing three black coil cores on steel base frame with Kraus & Naimer rotary tap selector and wiring harness on top
  • Varian MED 01-000062-00H 12kVA three-phase transformer — front-right view showing three-phase coil assembly, top-mounted tap switch, and full wiring harness loop
  • Varian MED 01-000062-00H identification label — showing part number 01-000062-00H, CMC 1858C, LOT 738-8544, S/NO. 92, and secondary reference 738-8609
  • Kraus & Naimer rotary tap selector knob — 12-position rotary switch labeled 1 through 12 with phi symbol, mounted on red bracket above blue terminal block assembly
  • Varian MED transformer output busbar — red busbar with three output terminal studs labeled X1, X2, and X3 with yellow lug connections and identification label visible
  • Transformer top assembly detail — blue terminal block stack with multiple tap wiring connections and rotary switch base, showing full wiring bundle routing
  • Kraus & Naimer A14 rotary switch detail — nameplate showing A14, Style-MC, UL listed markings, mounted between red brackets above blue terminal block
  • Kraus & Naimer A14 rotary switch rating plate — showing VDE 0660 ratings: AC1 16A 660V, AC11 16A 240V, AC3 5.5kW 3x380V, 1ph 1.5kW 220V; BS 587 wire ratings
$1,500.00
Was: $3,500.00
Current Stock: 1

Sold Out

Description

Varian MED 01-000062-00H 12kVA 3-Phase Transformer Klystron RF Power Supply

This is a three-phase power transformer designed for Varian Medical Systems klystron RF power supplies. It steps down 208V three-phase AC input to adjustable high-voltage DC output via a 12-tap rotary selector switch.

Specifications & What's Included

  • Power Rating: 12 kVA
  • Primary: 208V AC three-phase delta input
  • Secondary: Adjustable 3,500V – 9,600V DC output
  • Tap Selector: Kraus & Naimer A14 rotary switch, 12 positions
  • Output Terminals: Three studs (X1, X2, X3) on red busbar
  • Includes wiring harness and mounted on steel base frame

Applications

This transformer supports klystron tube RF power supplies used in medical linear accelerators and industrial RF systems. The adjustable secondary voltage allows tuning of the klystron operating point. The unit was deployed in active Varian MED systems for radiation therapy and imaging equipment.

Condition: Used
This Varian MED 01-000062-00H 12kVA three-phase transformer has been inspected and is in good used condition. It was pulled from a working environment where it was in active service. The three-phase coil assembly shows normal surface wear and some aging to the insulating tape wrap on the coils, consistent with its service history. The Kraus & Naimer 12-position rotary tap selector and output busbar terminals appear intact and undamaged. The attached wiring harness is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Varian Medical Systems (Varian MED)
Model:
01-000062-00H
MPN:
01-000062-00H
Type:
Three-Phase Power Transformer
SKU:
45820
Power Rating:
12 kVA
Primary Voltage:
208V AC (Three-Phase Delta)
Secondary Voltage:
Adjustable 3,500V – 9,600V DC
Phase:
Three Phase
Input Configuration:
Delta (3-Phase)
Output Configuration:
Three-Phase Y (Wye) for HV DC rectification
Tap Positions:
12 (via rotary selector knob)
Tap Selector:
Kraus & Naimer A14 Rotary Switch, Style-MC, 12-position
Tap Switch Rating:
AC1: 16A 660V; AC3: 5.5kW 3x380V; 1ph: 1.5kW 220V
Output Terminals:
3 output studs labeled X1, X2, X3 on red busbar
Application:
Klystron RF Power Supply (Varian MED)
Compatible With:
Varian MED Klystron RF Power Supply
CMC Code:
1858C
LOT:
738-8544
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes attached wiring harness and Kraus & Naimer rotary tap selector.
Country/Region of Manufacture:
United States
Form Factor:
Open Frame / Floor Mount (on steel base frame)
Condition Notes:
Varian MED 01-000062-00H 12kVA 3-phase transformer. Inspected and in good used condition; pulled from active service. Coils show normal wear. Tap selector and output terminals intact. Wiring harness included.
View AllClose

Related Products

Related Products

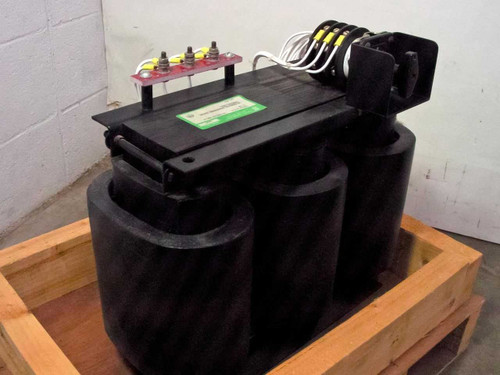

Quality Transformer Electronics 4690 12KVA three-phase klystron transformer — 3/4 front view showing three-core construction, red terminal block on top, and rotary tap selector on right side, unit seated in wooden crate Quality Transformer Electronics 4690 — close-up of rotary tap selector knob showing positions 0 through 5 with safety shield bracket and mounting screws
