QT&E 4684 Varian MED 01005166-01 Klystron Transformer Power Supply Component

(No reviews yet) Write a Review
SKU:
41935
MPN:
4684
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
40.00 LBS
Shipping:
Calculated at Checkout
  • QT&E 4684 Varian MED klystron transformer – front-left view showing black epoxy-potted toroidal core and steel base flange with mounting holes

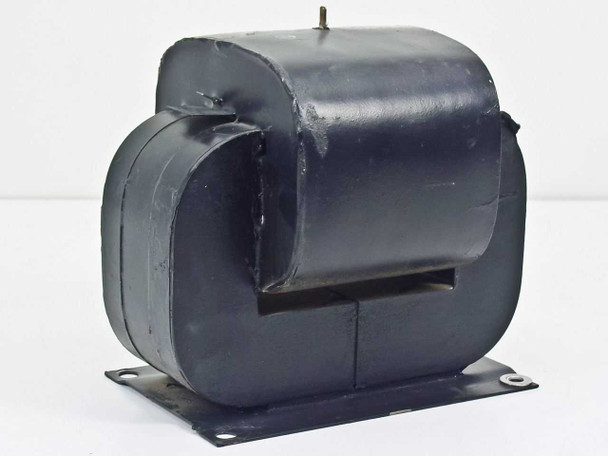

  • QT&E 4684 Varian MED klystron transformer – front-right view showing overall form factor and terminal slot opening on right side
  • QT&E 4684 label close-up showing QT&E 4684, Varian M.E.D., part number 01005166-01, date code 91/27, and revision F marking
  • QT&E 4684 Varian MED klystron transformer – bottom-rear view showing steel base flange with surface rust and corrosion, and exposed winding area
$275.00
Was: $550.00
Current Stock: 1

Sold Out

Description

QT&E 4684 Varian MED 01005166-01 Klystron Transformer Power Supply Component

This is a klystron power transformer manufactured by Quality Transformer & Electronics (QT&E) for Varian M.E.D. microwave systems. It functions as a high-voltage transformer in klystron tube power supply circuits.

Specifications & What's Included

  • Brand: Quality Transformer & Electronics (QT&E)
  • Model: 4684
  • Part Number: 01005166-01
  • Type: Klystron Power Transformer
  • Mounting: Base/Flange Mount, Open Frame
  • Date Code: Week 27, 1991
  • Manufactured in United States
  • Transformer only; no cables or hardware included

Applications

Klystron transformers supply high-voltage power to klystron tubes used in microwave generation and amplification systems. These components were standard in Varian M.E.D. industrial microwave equipment, medical accelerators, and communications infrastructure. The transformer steps up line voltage to the several kilovolt levels required by klystron operation.

Condition: Used
This Quality Transformer & Electronics QT&E 4684 Varian MED klystron transformer was pulled from a working environment where it was previously in service. The black epoxy-potted core and body are intact with no cracks or visible damage to the winding enclosure. The steel base flange shows moderate surface rust and corrosion on its underside, visible in the photos, which is cosmetic and typical for a component of this age and service history. The terminal slot opening is clear and unobstructed. The label is fully legible, confirming part number 01005166-01, date code 91/27, and revision F. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Quality Transformer & Electronics (QT&E)
Model:
4684
MPN:
01005166-01
Secondary Model:
QT&E 4684
Type:
Klystron Power Transformer
SKU:
41935
Made For / OEM Customer:
Varian M.E.D. (Microwave & Electronic Devices)
Application:
Klystron tube power supply / microwave system
Date Code:
91/27 (week 27 of 1991)
Mounting:
Base/Flange Mount
Condition:
Used – Pulled from Working Environment
Seller Notes:
Transformer only; no cables or external hardware included
Country/Region of Manufacture:
United States
Form Factor:
Open Frame / Flange Mount
Condition Notes:
QT&E 4684 Varian MED klystron transformer, P/N 01005166-01, pulled from working service. Core and body intact; steel base flange shows surface rust (cosmetic). Label legible. Please contact us with any questions.
