Description
Vacuum Chamber Electrical Feedthrough 50-Pin Mini D Ribbon Solder 108cm Stainless
A vacuum chamber electrical feedthrough rod with 50-position Mini D ribbon connector. Transmits electrical signals through chamber walls under vacuum or controlled environmental conditions.
Specifications & What's Included
- Connector Type: 50-Position Mini D Ribbon (MDR), solder termination
- Length: 108 cm (43 inches)
- Body Material: Stainless steel
- Cable: Multi-conductor, white insulated
- Includes: Feedthrough rod, solder-pin PCB breakout assembly, and wire harness
Applications
Vacuum chamber feedthroughs are used in research, industrial testing, and equipment manufacturing to route electrical signals into sealed or evacuated chambers. Common applications include vacuum environmental testing, semiconductor processing, analytical instruments, and telecommunications equipment testing. These connectors maintain vacuum integrity while providing multi-pin signal transmission.
Condition: For Parts or Not Working

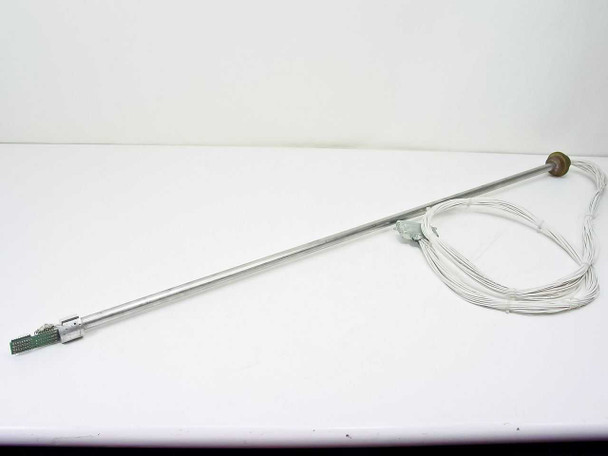

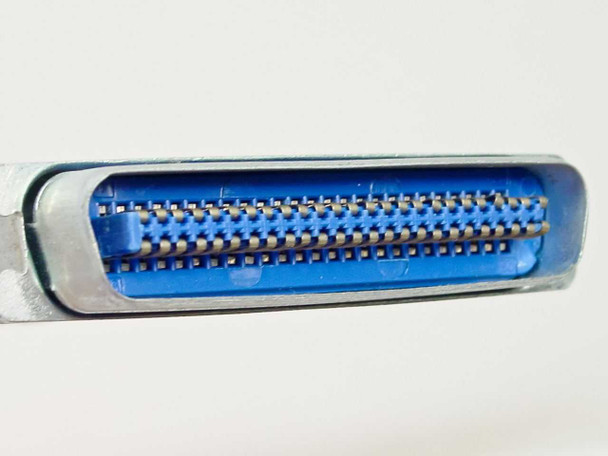

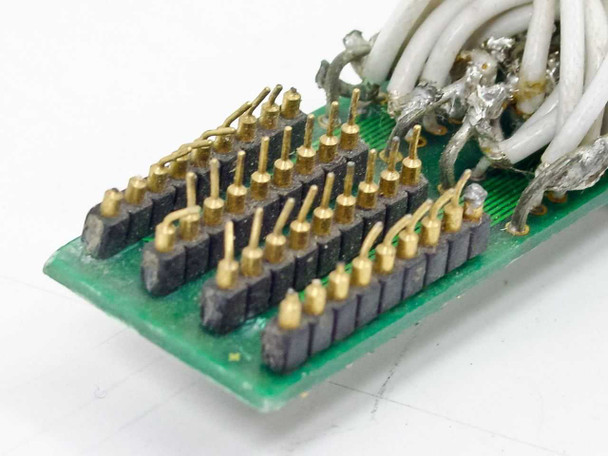

This stainless steel vacuum chamber electrical feedthrough is being sold as-is. It has not been tested or verified functional, and no functionality is guaranteed. The assembly includes the full stainless rod, the internal PCB breakout board with solder pins, the multi-conductor white wire harness, and the 50-position Mini D ribbon solder connector on the external end. Photos show the connector end and PCB assembly in used condition with some oxidation and solder flux residue visible on the PCB pins. The wire harness and rod appear intact. Please view our photo set and contact us if you have any questions.
This stainless steel vacuum chamber electrical feedthrough is being sold as-is. It has not been tested or verified functional, and no functionality is guaranteed. The assembly includes the full stainless rod, the internal PCB breakout board with solder pins, the multi-conductor white wire harness, and the 50-position Mini D ribbon solder connector on the external end. Photos show the connector end and PCB assembly in used condition with some oxidation and solder flux residue visible on the PCB pins. The wire harness and rod appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
50-Pin Mini D Ribbon Vacuum Feedthrough |
Type: |
Vacuum Chamber Electrical Feedthrough |
Connector Type: |
Mini D Ribbon (MDR), 50-Position, Solder |
Number of Positions: |
50 |
Total Length: |
108 cm (43 in) |
Body Material: |
Stainless Steel |
Application: |
Vacuum Chamber Electrical Environmental Testing |
Termination Style: |
Solder |
Cable Type: |
Multi-conductor, white insulated |
PCB Assembly Included: |
Yes — solder-pin PCB breakout at internal end |
Condition: |
As-Is / For Parts or Not Working |
SKU: |
41526 |
Seller Notes: |
Sold as-is. Includes feedthrough rod, PCB breakout, and wire harness. |
Condition Notes: |
This vacuum chamber electrical feedthrough is sold as-is with no functionality guaranteed. Includes rod, PCB breakout, wire harness, and 50-pin Mini D ribbon solder connector. Oxidation and flux residue visible on PCB pins. |
