Vacuum Chamber 43" Electrical Feedthrough Tube 30-Pin 7-Pin 6-Pin Brass Box
Electrical feedthrough assembly for vacuum chamber applications. 43-inch stainless steel tube with brass enclosure box, ball valve, and multi-pin connectors for signal and power transmission through chamber walls.
Specifications & What's Included

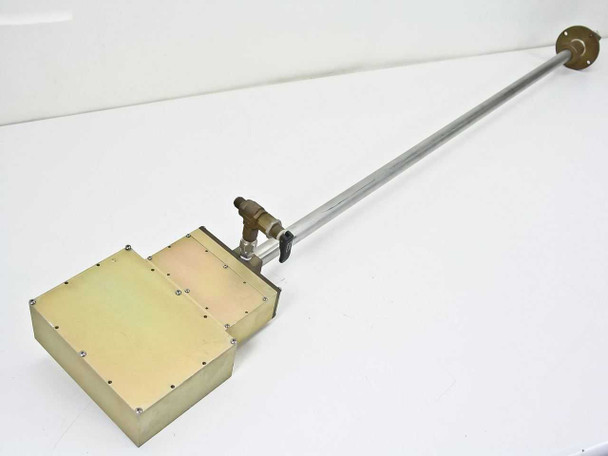

- 43-inch overall length feedthrough tube
- Brass enclosure box (approx. 6" x 6")

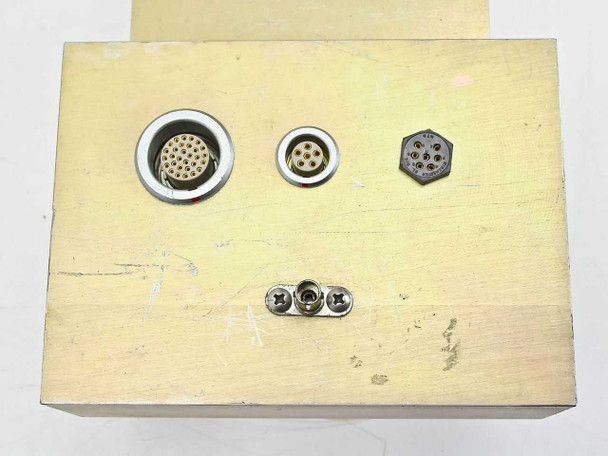

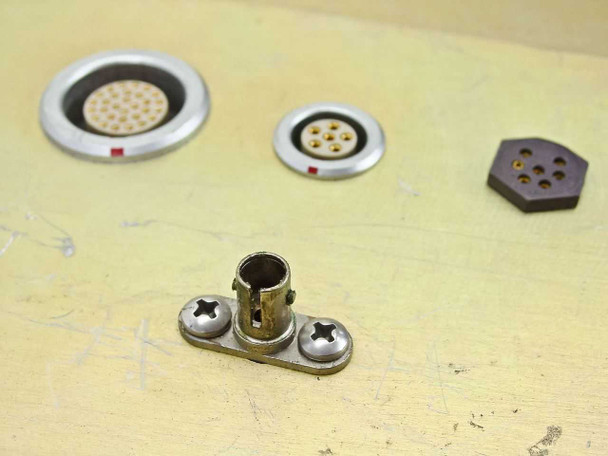

- 30-pin, 7-pin, and 6-pin circular connectors
- Small coaxial/BNC-style connector on front panel
- Brass ball valve with lever handle

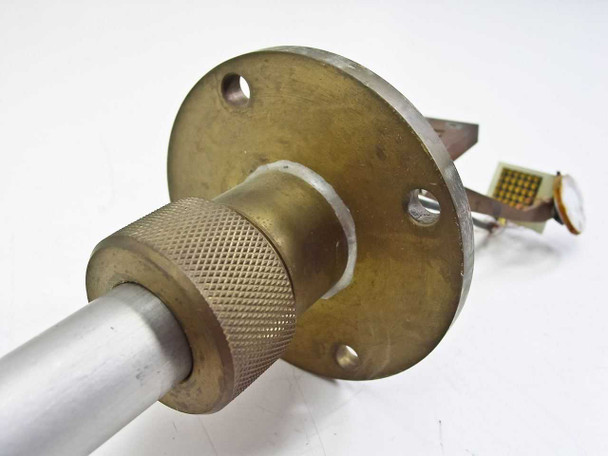

- Stainless steel tube with round mounting flange

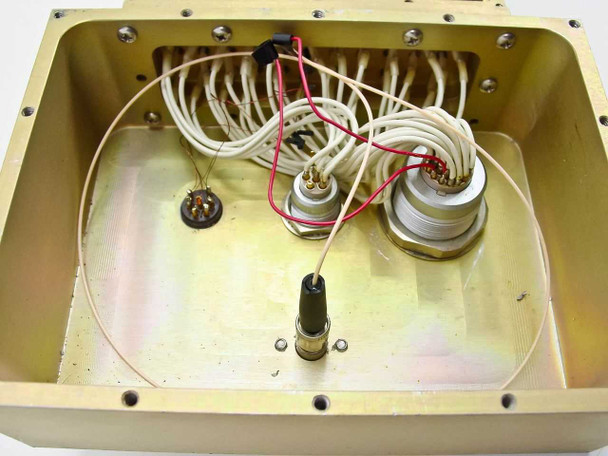

- Internal white multi-conductor wiring harness with pin connectors
Applications
Vacuum chamber electrical feedthroughs are used in research and industrial vacuum deposition systems, sputtering equipment, and research chambers requiring electrical signals and power connections through chamber walls. These assemblies allow multiple signal lines and power feeds to pass through while maintaining vacuum integrity. Commonly found in materials processing, thin-film deposition, and laboratory vacuum systems.
This vacuum chamber electrical feedthrough tube assembly is being sold as-is for parts or repair. The unit looks to be in good cosmetic shape overall — the brass enclosure box shows light surface scuffing and some discoloration on the exterior panels, and the stainless feedthrough shaft appears straight with no visible damage. The chamber-end flange shows some oxidation and minor corrosion typical of used vacuum hardware. The internal wiring harness and pin connectors are present and intact as seen in the photos. The brass ball valve and stainless compression fitting on the shaft are present and appear undamaged. No testing has been performed on this assembly, and no functional guarantee is made. Sold strictly as-is. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Electrical Feedthrough Tube 43-Inch |
Type: |
Vacuum Chamber Electrical Feedthrough Assembly |
SKU: |
41589 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is. Includes brass enclosure box, 43" feedthrough tube, ball valve, and internal wiring harness. |
Overall Length: |
43 inches |
Enclosure Box Dimensions: |
Approx. 6" x 6" (as stated in listing) |
Connector 1: |
30-Pin circular connector |
Connector 2: |
7-Pin circular connector |
Connector 3: |
6-Pin circular connector |
Additional Connector: |
Small coaxial/BNC-style connector on front panel |
Valve Type: |
Brass ball valve with lever handle |
Tube Material: |
Stainless steel / metal shaft tube |
Enclosure Material: |
Brass / gold-plated steel box enclosure |
Internal Wiring: |
Multi-conductor white wire harness with pin connectors |
Flange Type: |
Round flange at tube end for chamber mounting |
Application: |
Vacuum chamber electrical signal/power feedthrough |
Compatible With: |
Vacuum deposition chambers, research vacuum systems |
Form Factor: |
Inline tube with junction box |
Condition Notes: |
This vacuum chamber electrical feedthrough tube is sold as-is for parts or repair. No testing performed; no functionality guaranteed. Cosmetically fair — light scuffing on enclosure, some oxidation at flange end. |
