Uni-Solar PVL-144 144W Flexible Amorphous Solar Panel 46.2Voc MC3 600V UL
The Uni-Solar PVL-144 is an 18-foot amorphous thin-film flexible solar panel rated at 144W maximum power output. It uses a triple-junction amorphous silicon cell design and features a PowerBond peel-and-stick adhesive backing for direct application to compatible roofing surfaces — no mechanical fasteners required. MC3 output cables are factory-attached and the frameless, flexible construction allows it to conform to slightly curved substrates.
Specifications & What's Included

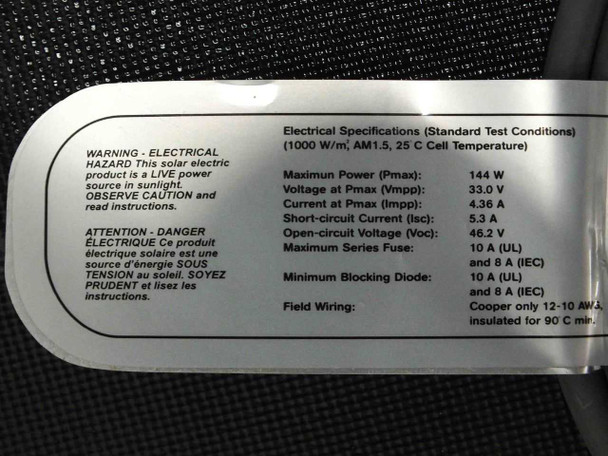

- Maximum Power (Pmax): 144 W
- Max Power Voltage (Vmpp): 33.0 V
- Max Power Current (Impp): 4.36 A
- Open Circuit Voltage (Voc): 46.2 V
- Short Circuit Current (Isc): 5.3 A
- Nominal System Voltage: 24 V

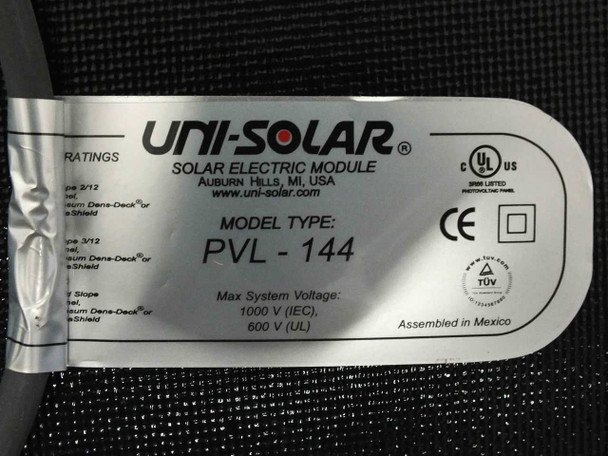

- Max System Voltage: 600 V (UL) / 1000 V (IEC)
- Maximum Series Fuse: 10 A (UL) / 8 A (IEC)
- Minimum Blocking Diode: 10 A (UL) / 8 A (IEC)
- Module Efficiency: 6.67%
- Cell Technology: Triple-junction amorphous silicon thin film
- Bypass Diodes: Per-cell bypass diodes
- Dimensions: 18 ft × 15.375 in (216 in × 15.375 in)
- Frame: Frameless
- Mounting: PowerBond peel-and-stick adhesive backing
- Connector Type: MC3
- Field Wiring: Copper only, 12–10 AWG, 90°C minimum insulation
- Certifications: UL Listed, CE, TÜV
- Country of Manufacture: Mexico (assembled)

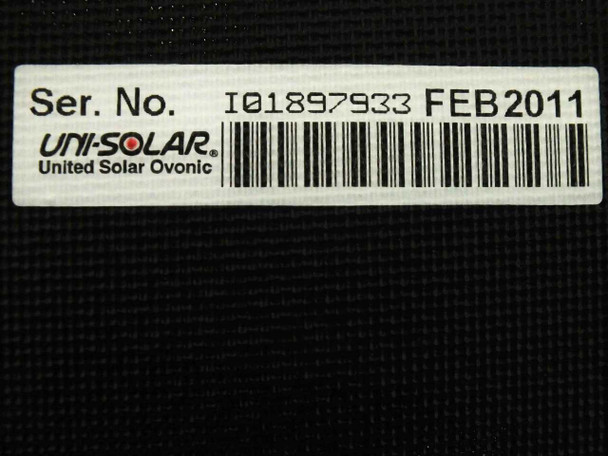

- Date Code: February 2011
- Includes: MC3 output cables (factory-attached)
Applications
Uni-Solar PVL-series panels are designed for building-integrated and low-slope photovoltaic applications where rigid framed modules are impractical. The peel-and-stick PowerBond backing bonds directly to standing-seam metal roofing, Dens-Deck, and Shield roofing substrates, making them a common choice for commercial low-slope rooftop systems and residential metal roof installations. Their flexibility and light weight also make them well-suited for RV and mobile home rooftops, marine vessels, and other transportation applications where mounting area is curved or structural load is a concern. The triple-junction amorphous silicon cell design performs relatively well in diffuse and low-light conditions compared to mono- or polycrystalline modules, which can be an advantage in overcast climates. Uni-Solar (United Solar Ovonic) manufactured these panels in Auburn Hills, Michigan, with production at their Mexico facility; the PVL-144 was among their most widely specified commercial rooftop products during the late 2000s and early 2010s.

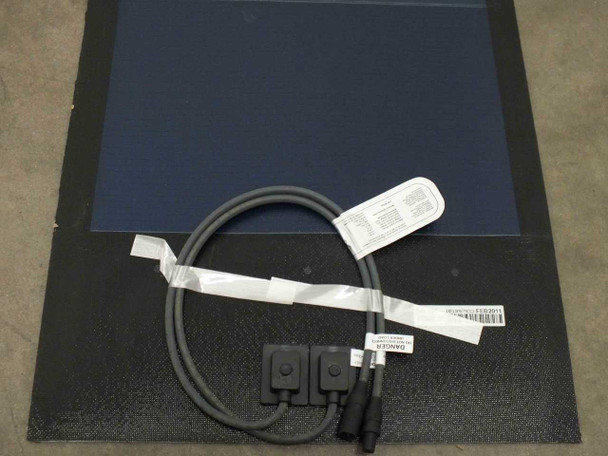

This Uni-Solar PVL-144 144W Amorphous Flexible Solar Panel is new and unused, pulled from a 2011 date-code carton. The panel shows no wear or damage. MC3 output cables are attached, and the PowerBond peel-and-stick adhesive backing is intact and ready to install. Please view our photos and contact us if you have any questions.
Warranty Information
Additional Information
Datasheet: |
|
Brand: |
Uni-Solar |
Model: |
PVL-144 |
MPN: |
PVL-144 |
Type: |
Amorphous Thin-Film Flexible Solar Panel |
SKU: |
51762 |
Seller Notes: |
New from 2011 date-code carton; includes MC3 output cables |
Country/Region of Manufacture: |
Mexico |
Maximum Power (Pmax): |
144 W |
Max Power Voltage (Vmpp): |
33.0 V |
Max Power Current (Impp): |
4.36 A |
Open Circuit Voltage (Voc): |
46.2 V |
Short Circuit Current (Isc): |
5.3 A |
Max System Voltage: |
600 V (UL) / 1000 V (IEC) |
Module Efficiency: |
6.67% |
Maximum Series Fuse: |
10 A (UL) / 8 A (IEC) |
Panel Dimensions: |
18 ft x 15.375 in (216 in x 15.375 in) |
Frame Material: |
Frameless |
Cell Technology: |
Amorphous Silicon (Triple-Junction Thin Film) |
Connector Type: |
MC3 |
Mounting Type: |
Peel-and-Stick Adhesive (PowerBond) |
Bypass Diodes: |
Yes — per-cell bypass diodes |
Certifications: |
UL Listed, CE, TÜV |
Date Code: |
February 2011 |
Compatible With: |
RV rooftops, metal roofing, flat/low-slope surfaces |
Compatible With 2: |
Dens-Deck, Shield roofing substrates |
Condition Notes: |
Uni-Solar PVL-144 144W flexible solar panel — new and unused from a 2011 date-code carton. No wear or damage. MC3 output cables included; PowerBond adhesive backing intact and ready to install. |
Minimum Blocking Diode: |
10 A (UL) / 8 A (IEC) |
Field Wiring: |
Copper only, 12-10 AWG, 90°C min. insulation |
Compatible With 1: |
RV rooftops, metal roofing, flat/low-slope surfaces |
