Uni-Solar PVL-116 Flexible 24V 116W Solar Panel MC3 Carton of 30 3.48kW UL
This listing is for a factory carton of 30 Uni-Solar PVL-116 flexible thin-film solar laminates — 116 watts each, 3.48 kW total. The PVL-116 is a peel-and-stick amorphous silicon photovoltaic laminate designed to bond directly to membrane and architectural steel roofing surfaces without penetrations, mounting hardware, or added structural load. These are UL listed, Category 3 hurricane-rated (130 MPH uplift resistance), and are new and unused, sourced directly from the Uni-Solar manufacturing and distribution facility when it closed in 2012.
Specifications & What's Included
- Model: PVL-116
- Quantity: 30 panels per factory carton (3.48 kW total)
- Cell Technology: Triple-junction amorphous silicon (thin-film)
- Maximum Power (Pmax): 116 Watts per panel
- Nominal Operating Voltage: 24V
- Peak Power Voltage (Vmp): 30 V
- Peak Power Current (Imp): 3.88 A
- Open Circuit Voltage (Voc): 43.2 V
- Short Circuit Current (Isc): 4.8 A
- Panel Dimensions: 196.8" L × 15.5" W × 0.2" thick (16.44 ft × 1.3 ft)
- Panel Weight: 16.5 lbs each (less than 1/5 the weight of crystalline panels)
- Electrical Connectors: MC3 push/pull connectors (male and female pair per panel)
- Bypass Diodes: Cell-level bypass diodes — shading of one cell causes less than 4.5% total power loss
- Installation Method: Peel-and-stick adhesive laminate — no penetrations, no mounting hardware
- Wind Rating: Category 3 — 130 MPH hurricane uplift resistant
- Fire Rating: Class A (Max Slope 3/12 on SSR Panel, G-P Gypsum Dena-Deck, or Elk VersaShield); Class B and Class C ratings also available depending on substrate
- Certifications: UL Listed (3R06 Photovoltaic Panel); UL approved for Galvalume steel roofs
- Compatible Roof Types: SSR (standing seam metal), membrane roofing, architectural steel; compatible substrates include G-P Gypsum Dena-Deck and Elk VersaShield
- Country of Manufacture: Mexico (per panel label)

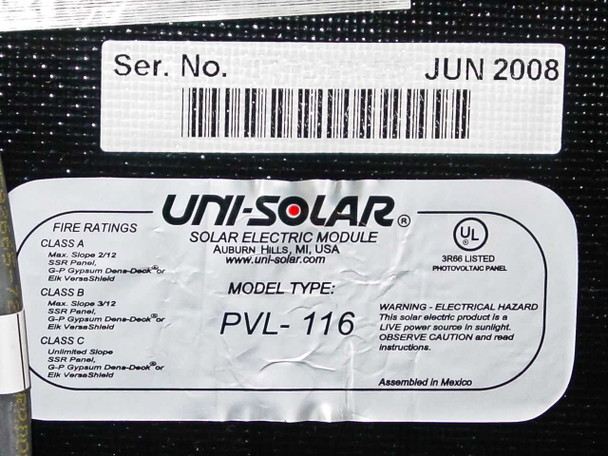

- Manufacture Date: June 2008 (per panel serial label)
- Related Models: Similar to PVL-128 (128W) and PVL-136 (136W) — PVL-116 is one cell shorter

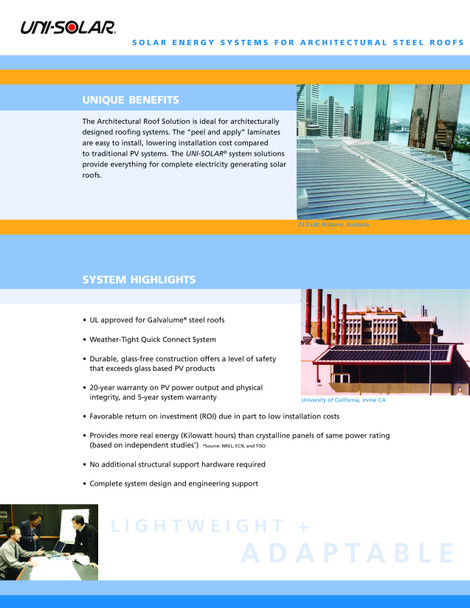

- Included: 30 PVL-116 panels with MC3 connectors, MC3 connector accessories pack, original factory carton; Uni-Solar installation guides and brochures available on request
Applications
The Uni-Solar PVL series are building-integrated photovoltaic (BIPV) laminates intended for commercial and industrial roofing applications where conventional framed panels are impractical. They bond directly to standing seam metal roofs, architectural steel roofs, and compatible membrane roofing systems, converting existing roof area into a power-generating surface without penetrating the weather barrier or adding significant structural load. The thin-film amorphous silicon cell technology gives these panels a performance advantage over crystalline panels in diffuse, cloudy, or low-angle light conditions, and the cell-level bypass diode architecture means partial shading — common in real-world rooftop environments — has minimal impact on overall system output. The PVL-116 was widely used in commercial BIPV installations through the mid-2000s and early 2010s, particularly on large-footprint industrial and institutional buildings. Uni-Solar (United Solar Ovonic) ceased manufacturing in 2012; new old stock panels from that liquidation remain sought after for replacement arrays, off-grid systems, and projects where a flexible, adhesive-mount solution is required. These panels are also compatible with standard grid-tied inverter systems when combined with an appropriate combiner box, DC disconnect, and inverter as shown in the included Uni-Solar system documentation.
These Uni-Solar PVL-116 flexible thin-film solar panels are new and unused, stored in the original factory carton of 30. They came directly from the Uni-Solar manufacturing and distribution facility when it was liquidated in 2012, and have been in dry storage since. The panels themselves show no signs of use or installation. The factory carton is open, as shown in the photos, and the panels remain coiled inside with their MC3 connectors and accessories. Uni-Solar brochures and installation guides are available upon request — just ask when you order. Please review our full photo set and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Uni-Solar |
Model: |
PVL-116 |
MPN: |
PVL-116 |
Type: |
Flexible Thin-Film Amorphous Silicon Solar Panel |
SKU: |
44038 |
Quantity in Lot: |
30 panels per carton |
Total Lot Power Output: |
3.48 kW (30 x 116W) |
Maximum Power (Pmax): |
116 Watts per panel |
Peak Power Voltage (Vmp): |
30 V |
Peak Power Current (Imp): |
3.88 A |
Open Circuit Voltage (Voc): |
43.2 V |
Short Circuit Current (Isc): |
4.8 A |
Panel Dimensions: |
196.8" L x 15.5" W x 0.2" thick (16.44 ft x 1.3 ft) |
Panel Weight: |
16.5 lbs per panel |
Electrical Connector: |
MC3 Push/Pull |
Certification: |
UL Listed (3R06), UL Approved for Galvalume steel roofs |
Wind/Hurricane Rating: |
Category 3 — 130 MPH uplift resistant |
Fire Rating: |
Class A, B, and C (substrate dependent) |
Compatible Roof Types: |
Membrane roofing, architectural steel, metal roofing |
Compatible Roof Substrates: |
SSR Panel, G-P Gypsum Dena-Deck, Elk VersaShield |
Installation Method: |
Peel-and-stick adhesive laminate — no penetrations |
Cell Technology: |
Triple-junction amorphous silicon (thin film) |
Bypass Diodes: |
Yes — cell-level bypass diodes included |
Country/Region of Manufacture: |
Mexico |
Manufacture Date: |
June 2008 (per panel label) |
Comparable Models: |
PVL-128, PVL-136 (PVL-116 is 1 cell shorter) |
Seller Notes: |
Carton of 30 panels with MC3 connectors; installation guides available on request |
Condition Notes: |
Uni-Solar PVL-116 116W flexible solar panels, new/unused in original factory carton of 30. New old stock from 2012 Uni-Solar liquidation; stored in dry conditions. Carton open; panels uninstalled. Installation guides available on request. |
