Uni-Solar ePVL-144T 144W Amorphous Flexible Solar Panel PowerBond MC4 Carton/30
This listing is for a factory carton of 30 Uni-Solar ePVL-144T 144-watt PowerBond amorphous thin-film solar panels, totaling 4,320 watts of solar capacity. The ePVL-144T is a frameless, lightweight, flexible laminate panel designed for peel-and-stick installation directly onto compatible roofing surfaces. Each panel ships new in the original Uni-Solar carton with factory-installed PowerBond adhesive on the back and MC4 connectors pre-attached.
Specifications & What's Included
- Model: Uni-Solar ePVL-144T (PowerBond)
- Part Number: E638128
- Quantity per carton: 30 panels
- Total carton power output: 4,320 W
- Maximum Power (Pmax): 144 W per panel
- Nominal Operating Voltage: 24 V
- Voltage at Pmax (Vmpp): 33.0 V
- Current at Pmax (Impp): 4.4 A
- Open-Circuit Voltage (Voc): 46.2 V
- Short-Circuit Current (Isc): 5.3 A
- Maximum Series Fuse: 10 A
- Max System Voltage: 600 V (UL) / 1000 V (IEC)
- Production Tolerance: ±5%
- Module Efficiency: 7.6%
- Cell Technology: Amorphous silicon thin-film
- Cells per module: 22
- Frame: Frameless laminate
- Module Connector: MC4
- Field Wiring: Copper only, 4–6 mm² (12–10 AWG), insulated for 90°C min.
- Mounting: PowerBond factory-installed peel-and-stick adhesive backing
- Fire Rating: Class A (max slope 2/12), Class B (max slope 3/12), Class C (unlimited slope)
- Application Class: Class A, Safety Class II per IEC 61730
- Panel Dimensions: 213.1 × 14.49 × 0.12 inches
- Panel Weight: 16.2 lbs each
- Carton Weight: 580 lbs
- Carton Dimensions: 45W × 45D × 25H inches
- Manufacture Date: May 2012
- Includes: 30 panels with factory PowerBond adhesive and MC4 connectors — no inverter or mounting hardware
Applications
The Uni-Solar ePVL series uses amorphous silicon thin-film technology, which performs better than conventional crystalline silicon panels in low-light, high-heat, and partially shaded conditions — making it well suited for commercial and residential rooftop installations where shade tolerance matters. The PowerBond adhesive system is designed for direct lamination to metal standing-seam and low-slope roofing substrates, eliminating the need for penetrating roof fasteners and reducing installation time and labor. These panels are commonly used on commercial metal roofs, RV and marine applications, and other surfaces where a rigid framed panel is impractical. The long, narrow form factor (213 inches × 14.5 inches) allows panels to run the full length of a roof panel bay. Multiple cartons can be stacked and palletized for freight shipping, with reduced per-unit shipping cost on multi-carton orders.

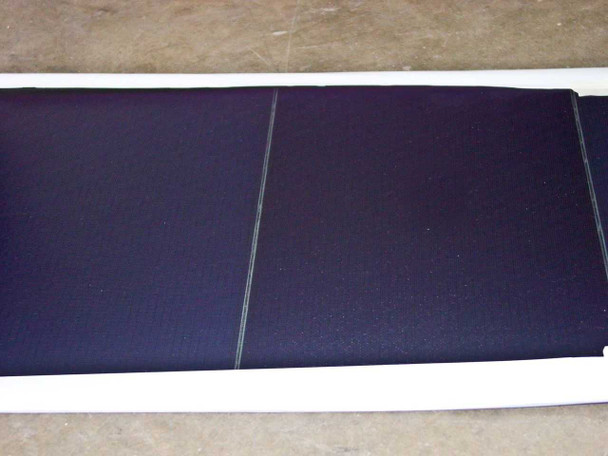

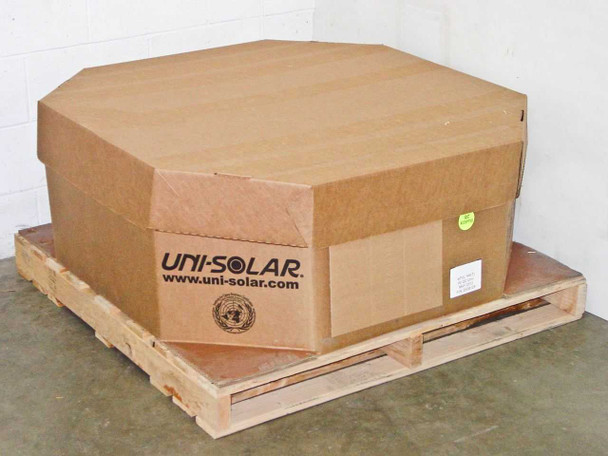

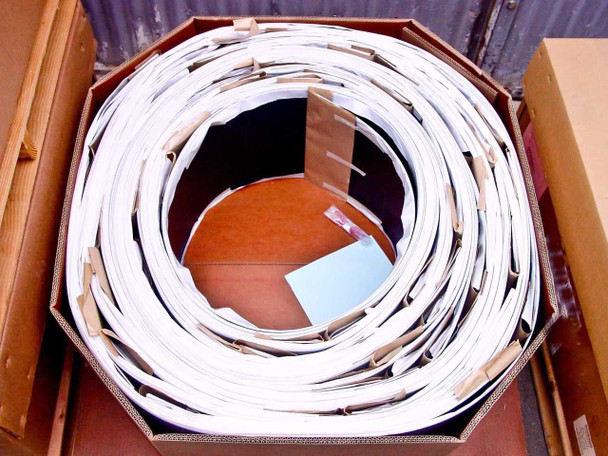

These Uni-Solar ePVL-144T 144W PowerBond amorphous solar panels are new and unused. The carton label confirms a manufacture date of May 2012 (P/N E638128). Panels are stored rolled in the original factory carton on pallet. The panel surfaces, laminate edges, and MC4 connectors appear clean and undamaged in the photos. Normal minor edge scuffing consistent with storage may be present on some panels. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Uni-Solar |
Model: |
ePVL-144T |
MPN: |
E638128 |
Type: |
Amorphous Thin-Film Flexible Solar Panel |
SKU: |
44016 |
Seller Notes: |
Carton of 30 panels. Panels only — no mounting hardware or inverter included. |
Country/Region of Manufacture: |
United States |
Maximum Power (Pmax): |
144 W |
Voltage at Pmax (Vmpp): |
33.0 V |
Current at Pmax (Impp): |
4.4 A |
Open-Circuit Voltage (Voc): |
46.2 V |
Short-Circuit Current (Isc): |
5.3 A |
Maximum Series Fuse: |
10 A |
Max System Voltage: |
600 V (UL) / 1000 V (IEC) |
Module Efficiency: |
7.6% |
Cell Technology: |
Amorphous Silicon (Thin Film) |
Frame Material: |
Frameless |
Module Connector: |
MC4 |
Mounting Method: |
PowerBond Peel-and-Stick Adhesive |
Cells Per Module: |
22 |
Panel Dimensions: |
213.1 x 14.49 x 0.12 in |
Panel Weight: |
16.2 lbs |
Quantity Per Carton: |
30 |
Total Carton Power: |
4,320 W |
Carton Weight: |
580 lbs |
Carton Dimensions: |
45W x 45D x 25H in |
Fire Rating: |
Class A (max slope 2/12), Class B (max 3/12), Class C (unlimited) |
Application Class: |
Class A (Safety Class II) per IEC 61730 |
Wiring: |
Copper only, 4-6 mm² (12-10 AWG), 90°C rated |
Production Tolerance: |
±5% |
Manufacture Date: |
May 2012 |
Condition Notes: |
Uni-Solar ePVL-144T 144W PowerBond amorphous solar panels — new, unused, stored in original factory carton (May 2012, P/N E638128). Panel surfaces and MC4 connectors appear clean. Minor storage wear possible. Please contact us with any questions. |
