Tung Lee 5RK60GN-C Reversible Motor 60W 200-220VAC 5GN-15 Gear Head Indexing

(No reviews yet) Write a Review
SKU:
49414
MPN:
5RK60GN-C
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
39.00 LBS
Shipping:
Calculated at Checkout
  • Tung Lee 5RK60GN-C reversible motor assembly with 5GN-15 gear head and 60DF-8-270R1DA indexing drive – full assembly front-right view showing output shaft with multi-hole hub and wiring leads
  • Tung Lee 5RK60GN-C reversible motor and indexing drive assembly – rear-left view showing motor fan housing, gear head, and indexing drive body on base plate

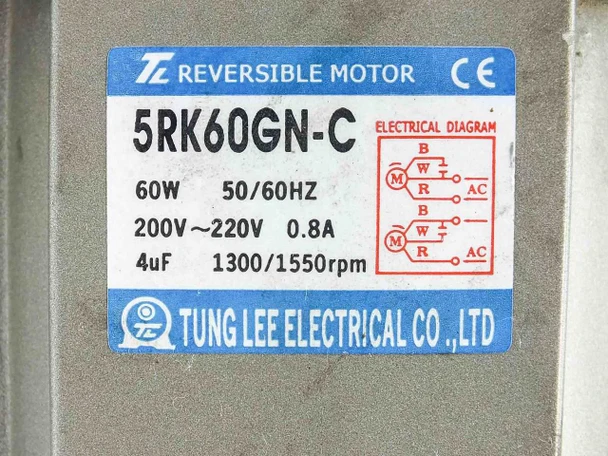

  • Tung Lee Electrical 5RK60GN-C reversible motor nameplate label showing 60W, 50/60Hz, 200-220V, 0.8A, 4uF, 1300/1550 RPM with electrical wiring diagram
  • Tung Lee 5RK60GN-C motor and indexing drive assembly – angled front view showing output shaft hub, indexing drive face plate, and gear head body
  • Close-up of 60DF-8-270R1DA indexing drive output face showing multi-position output hub and cam follower disc with mounting bracket
  • Indexing drive nameplate plate showing model 60DF-8-270R1DA, manufacture date 2005.4, and serial number – Chinese text reading precision divider
  • Tung Lee 5RK60GN-C motor wiring detail showing bare wire leads with red spade connectors and white multi-pin connector for reversible motor control
$350.00
Was: $700.00
Current Stock: 1

Sold Out

Description

Tung Lee 5RK60GN-C Reversible Motor 60W 200-220VAC 5GN-15 Gear Head Indexing Drive

Single-phase reversible AC motor with integrated 5GN-15 gear head and 60DF-8-270R1DA precision indexing drive mounted on a base plate assembly. Designed for controlled rotational indexing applications requiring bidirectional operation.

Specifications & What's Included

  • Power: 60W, 200-220V AC, 0.8A, 50/60Hz
  • Motor Speed: 1300/1550 RPM (reversible)
  • Gear Head: 5GN-15
  • Indexing Drive: 60DF-8-270R1DA (manufactured 2005)
  • Capacitor: 4 µF
  • Phase: Single-phase
  • Mounting: Base plate assembly
  • Certification: CE
  • Origin: Taiwan

Applications

Motor-driven indexing assemblies of this type are used in packaging machinery, rotary table positioning, conveyor systems, and automated assembly equipment requiring precise step-and-hold or continuous indexed rotation. The reversible capability allows directional control for forward/reverse indexing cycles. Commonly found in legacy industrial automation and telecom equipment infrastructure.

Condition: Used
This Tung Lee Electrical 5RK60GN-C Reversible Motor with 5GN-15 Gear Head and 60DF-8-270R1DA Indexing Drive has been inspected and is in good used condition. The motor nameplate, gear head, and indexing drive are all intact and legible. The assembly shows normal wear consistent with prior industrial use, including light surface scuffing on the gear head and indexing drive housings and some oxidation on the base plate. The output hub and cam disc appear complete and undamaged. Wiring leads with spade and multi-pin connectors are present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tung Lee Electrical
Model:
5RK60GN-C
MPN:
5RK60GN-C
Secondary Model:
60DF-8-270R1DA
Type:
Reversible AC Motor with Gear Head and Indexing Drive
SKU:
49414
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes 5GN-15 gear head and 60DF-8-270R1DA precision indexing drive mounted on base plate
Country/Region of Manufacture:
Taiwan
Power Rating:
60W
Voltage Rating:
200V - 220V AC
Current Rating:
0.8A
Frequency:
50/60 Hz
Speed (RPM):
1300/1550 RPM
Capacitor:
4 uF
Motor Direction:
Reversible
Gear Head Model:
5GN-15
Indexing Drive Model:
60DF-8-270R1DA
Indexing Drive Manufacture Date:
2005.4
Phase:
Single Phase
Certifications:
CE
Form Factor:
Base Plate Mounted Assembly
Power Requirements:
200-220V AC, 50/60Hz, 0.8A
Condition Notes:
Tung Lee 5RK60GN-C Reversible Motor w/ 5GN-15 Gear Head and 60DF-8-270R1DA Indexing Drive. Inspected, good used condition. Normal wear on housings, light oxidation on base plate. Wiring leads present.
