Tektronix IGS-1614-63 I/O Trigger Interconnect Control Module 161-420-63

(No reviews yet) Write a Review
SKU:
26607
MPN:
IGS-1614-63
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout

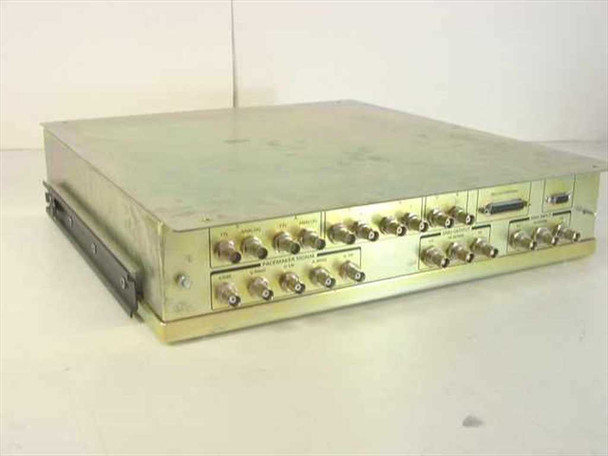

  • Tektronix IGS-1614-63 I/O Trigger Interconnect Control Module – three-quarter front view showing BNC connectors across front panel in metal enclosure

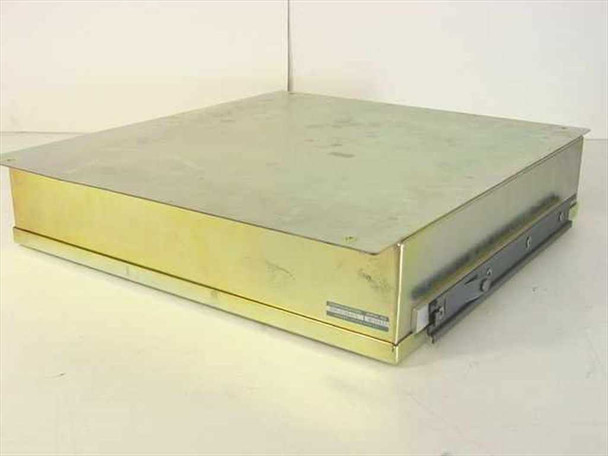

  • Tektronix IGS-1614-63 Trigger Interconnect Module – top and right-side view of metal enclosure showing handle latch on right side
  • Tektronix IGS-1614-63 configuration label showing model IGS-1614-63 and serial number W010135, manufactured in Beaverton Oregon USA

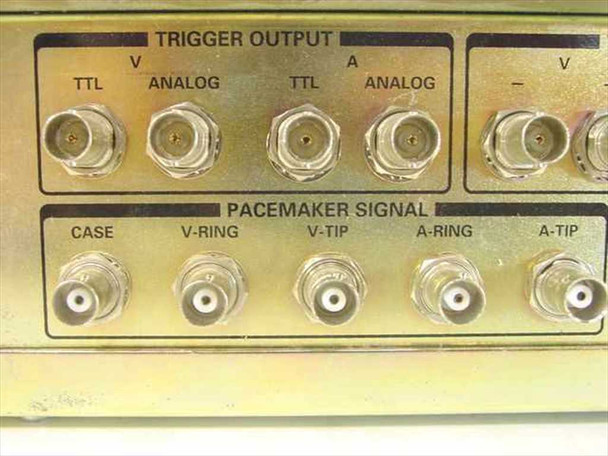

  • Tektronix IGS-1614-63 front panel detail showing Trigger Output section with TTL and Analog BNC connectors for V and A channels, and Pacemaker Signal section with Case, V-Ring, V-Tip, A-Ring, A-Tip BNC connectors

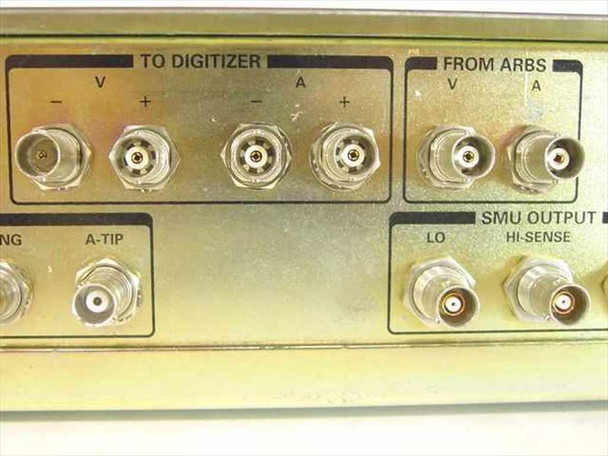

  • Tektronix IGS-1614-63 panel detail showing To Digitizer BNC connectors (V– V+ A– A+), From ARBS V and A BNC connectors, and SMU Output LO, HI-Sense, HI BNC connectors

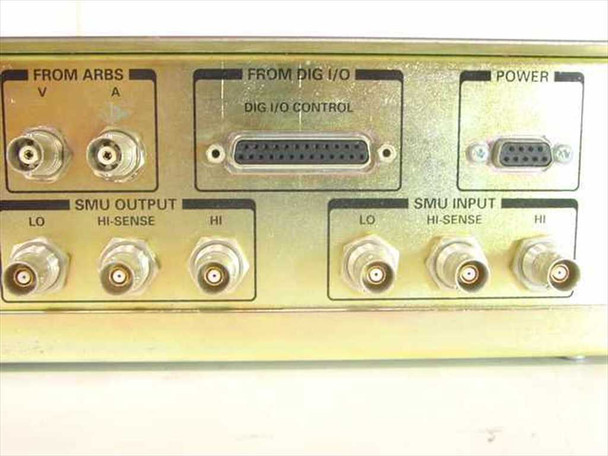

  • Tektronix IGS-1614-63 rear panel detail showing From ARBS connectors, DIG I/O Control DB25 connector, Power DB15 connector, SMU Output and SMU Input BNC connector banks
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Tektronix IGS-1614-63 I/O Trigger Interconnect Control Module 161-420-63

An I/O trigger interconnect control module designed to manage signal routing and trigger operations between Tektronix test instruments. This module coordinates TTL and analog trigger signals across multiple instrument channels and measurement subsystems.

Specifications & What's Included

  • Model: IGS-1614-63 (MPN: 161-420-63)
  • Connectors: BNC (signal), DB25 (digital I/O control), DB15 (power)
  • Signal outputs: TTL and analog trigger (V and A channels)
  • Includes trigger output, pacemaker signal, SMU output/input, and digitizer connections
  • Manufactured in Beaverton, Oregon
  • Module supplied in enclosure

Applications

This interconnect module was used in Tektronix parametric test systems and automated measurement setups to synchronize trigger signals between source measure units (SMUs), arbitrary function generators (ARBS), and digitizer instruments. It serves as a signal routing hub for complex multi-instrument test configurations requiring precise timing and signal coordination.

Condition: Used
This Tektronix IGS-1614-63 I/O Trigger Interconnect Control Module was pulled from a working environment where it was actively in use and functional. The unit has been inspected and is in good used condition. The metal enclosure shows light surface discoloration and scuffing consistent with bench use, but there is no significant damage. The BNC connectors, DIG I/O control DB25, and power DB15 connectors all appear intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tektronix
Model:
IGS-1614-63
MPN:
161-420-63
Secondary Model:
161-420-63
SKU:
26607
Type:
I/O Trigger Interconnect Control Module
Condition:
Used – Pulled from Working Environment
Form Factor:
Benchtop / Enclosed Module
Connector Type:
BNC, DB25 (DIG I/O), DB15 (Power)
Trigger Output:
TTL and Analog (V and A channels)
Signal Sections:
Trigger Output, Pacemaker Signal, SMU Output, SMU Input
Pacemaker Signal Connectors:
Case, V-Ring, V-Tip, A-Ring, A-Tip (BNC)
SMU Output:
LO, HI-Sense, HI (BNC)
SMU Input:
LO, HI-Sense, HI (BNC)
To Digitizer Connections:
V– V+ A– A+ (BNC)
From ARBS Connections:
V and A (BNC)
DIG I/O Control:
DB25 connector labeled DIG I/O CONTROL
Power Connector:
DB15 connector
Country/Region of Manufacture:
United States (Beaverton, Oregon)
Seller Notes:
Includes module in enclosure as shown; pulled from working environment.
Condition Notes:
Tektronix IGS-1614-63 I/O Trigger Interconnect Module pulled from a working environment where it was in active use and functional. Inspected and in good used condition. BNC and D-sub connectors appear intact.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
